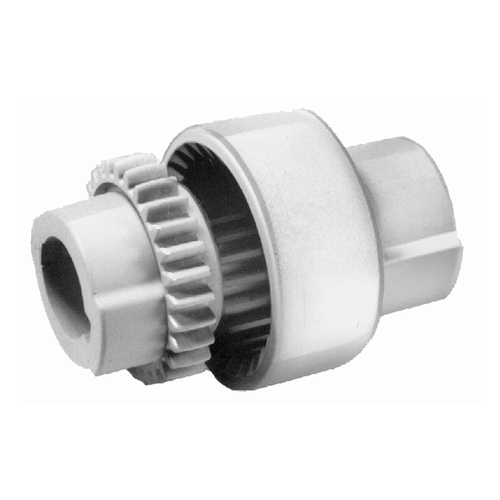

Curved-Tooth Gear Coupling Sleeve Part made of PA 6.6 (polyamide 6.6)

Technical specification Material of sleeve part: PA 6.6 (polyamide 6.6) Max. speed:... more

Technical specification

Material of sleeve part: PA 6.6 (polyamide 6.6)

Max. speed: 6,000 min-1

Permissible shaft disalignment: angular misalignment max. ±1°, axial displacement ±1 mm, no radial misalignment

The permissible displacement values are dependent on power and speed.

General Information Multi-part couplings with rounded teeth for connecting two shafts. Hubs... more

General Information

Multi-part couplings with rounded teeth for connecting two shafts.

Hubs made of resistant plastic for low to medium torques (food engineering)

Sleeve part or sleeve made of plastic, light and wear-resistant.

Hub parts and sleeve part or sleeve have to be ordered separately.

Torsionally-stiff and angle-compensating with axial movement.

For shaft diameters from 6 mm to 24 mm.

Ready-to-install with custom bore, feather keyway and set screw.

Easy mounting and dismounting without special tool.

Resistant to oils, fats, grease, fuels, various alcohols, esters, ketones, and grachatic hydrocarbons.

Not resistant against concentrated mineral acids, formic acid, kresol, glycol and benzyl alcohol.

Various possible combinations:

Two-part: 1 hub part plus 1 sleeve part

Three-part: 2 hub parts plus sleeve

Different hubs (various bores) can be combined with a sleeve. Each size (14, 19 or 24) has to match.

Material:

Casing: PA 6.6 (polyamide 6.6)

Hubs: plastics or sintered steel

Allen screws: steel, burnished

Temperature range: -25 to +100 °C, for short periods of time +120 °C

Custom bore: +0.05/-0.1 mm (with metal hub H7), feather keyway DIN 6885/1

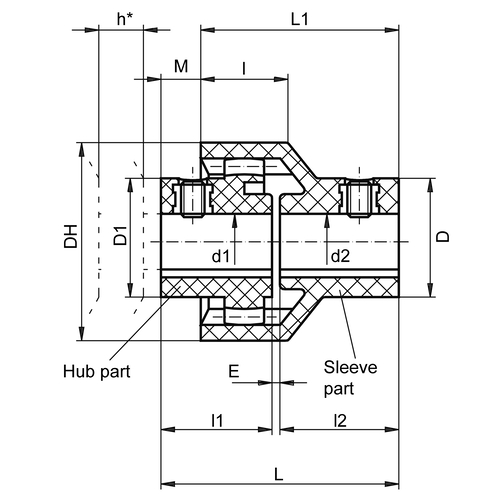

Item Image Size d2
mm
D
mm
DH
mm
Max. torque1
Nm
L
mm
L1
mm
l
mm
l2
mm
E
mm
M
mm
h2
mm
Gewicht
g
Einheit
Stück
Price
Euro*
Buy
705951
14 10 25 40 10 48 40 23 23 2 8 15 28 1 15.00
705952
14 10 25 40 10 48 40 23 23 2 8 15 28 2 26.00
705953
14 11 25 40 10 48 40 23 23 2 8 15 28 1 15.00
705954
14 11 25 40 10 48 40 23 23 2 8 15 28 2 26.00
705955
14 12 26 40 10 48 40 23 23 2 8 15 28 1 15.00
705956
14 12 26 40 10 48 40 23 23 2 8 15 28 2 26.00
705957
14 14 26 40 10 48 40 18,5 23 2 8 15 28 1 15.00
705958
14 14 26 40 10 48 40 18,5 23 2 8 15 28 2 26.00
705959
19 14 29 48 16 52 42 19 25 2 10 16 32 1 22.00
705960
19 14 29 48 16 52 42 19 25 2 10 16 32 2 37.00
705961
19 15 29 48 16 52 42 19 25 2 10 16 32 1 22.00
705962
19 15 29 48 16 52 42 19 25 2 10 16 32 2 37.00
705963
19 19 35 48 16 52 42 19 25 2 10 16 32 1 22.00
705964
19 19 35 48 16 52 42 19 25 2 10 16 32 2 37.00
705965
24 14 32 53 24 54 45 21,5 26 2 9 17 45 1 26.00
705966
24 14 32 53 24 54 45 21,5 26 2 9 17 45 2 43.00
705967
24 19 36 53 24 54 45 21,5 26 2 9 17 45 1 26.00
705968
24 19 36 53 24 54 45 21,5 26 2 9 17 45 2 43.00
705969
24 20 36 53 24 54 45 21,5 26 2 9 17 45 1 26.00
705970
24 20 36 53 24 54 45 21,5 26 2 9 17 45 2 43.00
705971
24 24 40 53 24 54 45 21,5 26 2 9 17 45 1 26.00
705972
24 24 40 53 24 54 45 21,5 26 2 9 17 45 2 43.00
