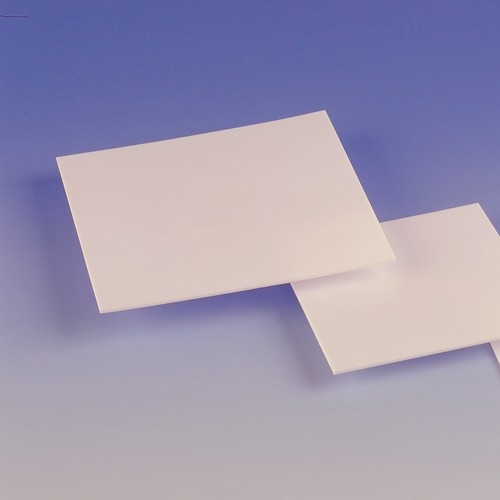

High-Chem Polymer Membrane - cutting

High-Chem Polymer Membrane - cutting
No additional information available.
General Information Material: PA (polyamide); PESH (polyether sulfone, hydrophilic) PS... more

General Information

Material: PA (polyamide); PESH (polyether sulfone, hydrophilic) PS (polysulfone); PAEK (polyacryl etherketone)

Item Image Design Cut off
kDalton
Material Dimensions
mm
Einheit
Stück
Max. op. pressure1
bar
Max. temp.
°C
pH range Max. flow rate liquids2
l/h
Price
Euro*
Buy
302983
1 0,05 PA 6.6 200 x 300 1 100 50 4 - 11 40 125.00
302984
1 0,05 PA 6.6 450 x 500 1 100 50 4 - 11 40 335.00
302985
2 0,1 PA 6.6 200 x 300 1 50 50 4 - 11 70 125.00
302986
2 0,1 PA 6.6 450 x 500 1 50 50 4 - 11 70 335.00
302987
3 0,2 PA 6.6 200 x 300 1 30 50 4 - 11 200 125.00
302988
3 0,2 PA 6.6 450 x 500 1 30 50 4 - 11 200 335.00
302989
4 0,5 PA 6.6 200 x 300 1 25 50 4 - 11 300 125.00
302990
4 0,5 PA 6.6 450 x 500 1 25 50 4 - 11 300 335.00
302991
5 2 PA 6.6 200 x 300 1 15 50 4 - 11 310 125.00
302992
5 2 PA 6.6 450 x 500 1 15 50 4 - 11 310 335.00
302993
6 4 PESH 200 x 300 1 10 70 1 - 13 520 95.00
302994
6 4 PESH 450 x 500 1 10 70 1 - 13 520 280.00
303001
10 100 PS 200 x 300 1 10 70 1 - 13 800 95.00
303002
10 100 PS 450 x 500 1 10 70 1 - 13 800 280.00
303003
11 100 PAEK 200 x 300 1 10 70 1 - 13 1.200 105.00
303004
11 100 PAEK 450 x 500 1 10 70 1 - 13 1.200 300.00
