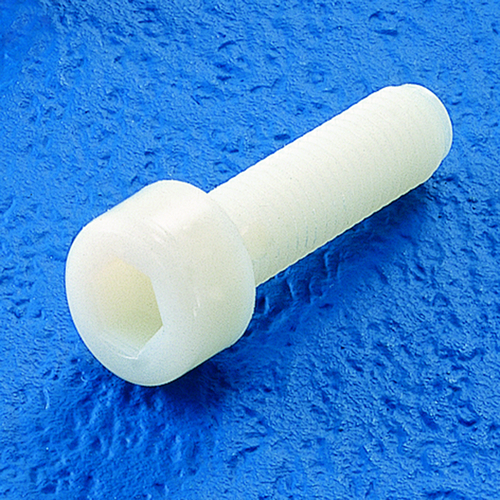

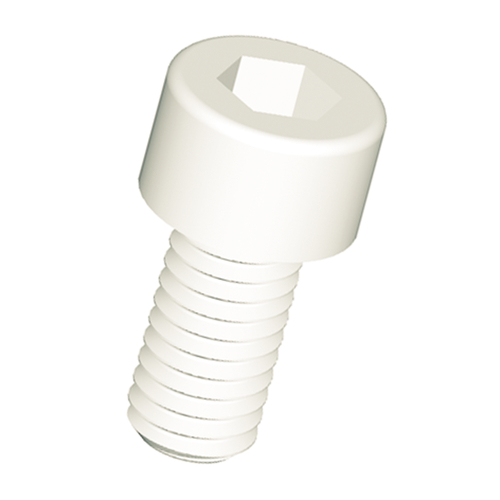

Hexagon Socket Head Cap Screw (DIN 912) made of PVDF

Hexagon Socket Head Cap Screw (DIN 912) made of PVDF

Technical specification Material: PVDF (polyvinylidene fluoride) Colour:... more

Close menu

Technical specification

Material: PVDF (polyvinylidene fluoride)

Colour: natural, slightly translucent

Regulations: DIN 912, ISO 4762, NFE 27161, NFE 25125

General Information High-quality technical plastic for chemical apparatus and machine... more

Close menu

General Information

High-quality technical plastic for chemical apparatus and machine building, especially in the petrochemical, metallurgical, pharmaceutical, food processing, paper and textile industry as well as in the nuclear technology.

Chemical features:

Resistant to alcohols, fats and oils, alkalis, acids and halogens; limited resistance to oxidizing acids; poor resistance to ketones, amines, pyridine, dimethyl formamide, hot alkalis and fuming sulfuric acid.

Material specification:

PVDF has similar properties than the related PTFE (temperature range -60 °C to +150 °C)

PVDF is vastly superior to all other fluoropolymers concerning stability, stiffness and creep strength as well as resistance to high-energy radiation, but sliding and electrical insulating properties are a little weaker.

Excellent resistance to UV, aging and weather

Good abrasion resistance

Good dielectric strength

Good dimensional stability due to strong hardness

High stability and impact resistance even at low temperatures

Low dissipation factor

Can not be solvent cemented

Water resistant

Flame resistant

Physiologically safe

Meets highest purity requirements

Material: PVDF (polyvinylidene fluoride)

Colour: natural, slightly translucent

Density: 1.76 g/cm³ (DIN ISO/IEC 1183)

Temperature range: -40 to +150 °C, for a short time +160 °C

Melting point: +175 °C (ASTM 03418)

Elastic modulus: 2,500 MPa (ISO 527)

Yield stress: 57 N/mm² (DIN 53455)

Tearing strength: 50 N/mm² (DIN 53455)

Elongation at break: 12 % (DIN 53455)

Coefficient of sliding friction against steel (dry): approx. 0.20 - 0.35

Water absorption: <0.04 % (ISO 62), storage in water

Shore hardness D: 79° (ASTM D2240)

Impact resistance: 300 - 450 kJ/m2 (DIN 53448)

Volume resistivity: 10¹³ Ohm x cm (IEC 60093)

Dielectric strength: 40 kV/mm (IEC 60093)

Flammability: hardly inflammable, self-extinguishing

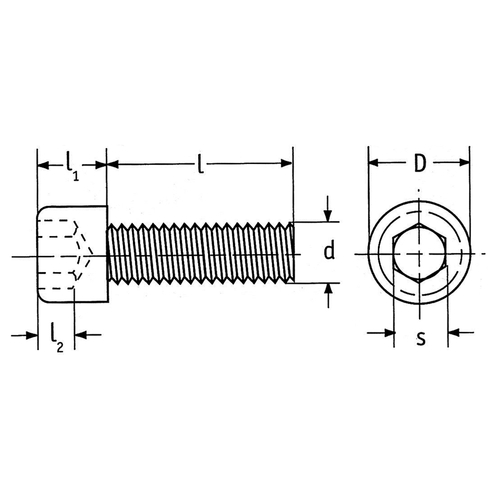

Item	External thread	Gewindelänge mm	D mm	l1 mm	l2 mm	SW mm	Einheit Stück	Price Euro*
337189	M6 x 1	6	10	6	3	5	25	101.00
337190	M6 x 1	6	10	6	3	5	50	163.00
337191	M6 x 1	8	10	6	3	5	25	101.00
337192	M6 x 1	8	10	6	3	5	50	163.00
337193	M6 x 1	10	10	6	3	5	25	101.00
337194	M6 x 1	10	10	6	3	5	50	163.00
337195	M6 x 1	12	10	6	3	5	25	103.00
337196	M6 x 1	12	10	6	3	5	50	163.00
337197	M6 x 1	16	10	6	3	5	25	103.00
337198	M6 x 1	16	10	6	3	5	50	163.00
337199	M6 x 1	20	10	6	3	5	25	105.00
337202	M6 x 1	20	10	6	3	5	50	174.00
337203	M6 x 1	25	10	6	3	5	25	105.00
337204	M6 x 1	25	10	6	3	5	50	174.00
337205	M6 x 1	30	10	6	3	5	25	112.00
337206	M6 x 1	30	10	6	3	5	50	180.00
337207	M6 x 1	40	10	6	3	5	25	112.00
337208	M6 x 1	40	10	6	3	5	50	180.00
337209	M6 x 1	50	10	6	3	5	25	114.00
337210	M6 x 1	50	10	6	3	5	50	187.00
337211	M6 x 1	60	10	6	3	5	25	114.00
337212	M6 x 1	60	10	6	3	5	50	187.00
337213	M8 x 1,25	10	13	8	4	6	10	86.00
337214	M8 x 1,25	10	13	8	4	6	25	182.00
337215	M8 x 1,25	16	13	8	4	6	10	88.00
337216	M8 x 1,25	16	13	8	4	6	25	187.00
337217	M8 x 1,25	20	13	8	4	6	10	93.00
337218	M8 x 1,25	20	13	8	4	6	25	195.00
337219	M8 x 1,25	25	13	8	4	6	10	93.00
337220	M8 x 1,25	25	13	8	4	6	25	195.00
337221	M8 x 1,25	30	13	8	4	6	10	93.00
337222	M8 x 1,25	30	13	8	4	6	25	195.00
337225	M8 x 1,25	40	13	8	4	6	10	97.00
337226	M8 x 1,25	40	13	8	4	6	25	204.00
337227	M8 x 1,25	50	13	8	4	6	10	97.00
337228	M8 x 1,25	50	13	8	4	6	25	204.00
337229	M8 x 1,25	60	13	8	4	6	10	99.00
337230	M8 x 1,25	60	13	8	4	6	25	210.00
337231	M8 x 1,25	70	13	8	4	6	10	99.00
337232	M8 x 1,25	70	13	8	4	6	25	210.00
337233	M8 x 1,25	80	13	8	4	6	10	101.00
337234	M8 x 1,25	80	13	8	4	6	25	212.00
337235	M10 x 1,5	16	16	10	5	8	10	131.00
337236	M10 x 1,5	16	16	10	5	8	25	277.00
337237	M10 x 1,5	20	16	10	5	8	10	131.00
337238	M10 x 1,5	20	16	10	5	8	25	277.00
337239	M10 x 1,5	30	16	10	5	8	10	137.00
337240	M10 x 1,5	30	16	10	5	8	25	289.00
337241	M10 x 1,5	40	16	10	5	8	10	137.00
337242	M10 x 1,5	40	16	10	5	8	25	289.00
337243	M10 x 1,5	50	16	10	5	8	10	142.00
337244	M10 x 1,5	50	16	10	5	8	25	300.00
337245	M10 x 1,5	60	16	10	5	8	10	142.00
337246	M10 x 1,5	60	16	10	5	8	25	300.00
337247	M10 x 1,5	70	16	10	5	8	10	148.00
337248	M10 x 1,5	70	16	10	5	8	25	311.00
337249	M10 x 1,5	80	16	10	5	8	10	148.00
337250	M10 x 1,5	80	16	10	5	8	25	311.00
337251	M12 x 1,75	20	18	12	6	10	10	182.00
337252	M12 x 1,75	20	18	12	6	10	25	386.00
337253	M12 x 1,75	30	18	12	6	10	10	182.00
337254	M12 x 1,75	30	18	12	6	10	25	386.00
337255	M12 x 1,75	40	18	12	6	10	10	191.00
337256	M12 x 1,75	40	18	12	6	10	25	405.00
337257	M12 x 1,75	50	18	12	6	10	10	191.00
337258	M12 x 1,75	50	18	12	6	10	25	405.00
337259	M12 x 1,75	60	18	12	6	10	10	195.00
337260	M12 x 1,75	60	18	12	6	10	25	420.00
337261	M12 x 1,75	70	18	12	6	10	10	195.00
337262	M12 x 1,75	70	18	12	6	10	25	420.00
337263	M12 x 1,75	80	18	12	6	10	10	195.00
337264	M12 x 1,75	80	18	12	6	10	25	420.00
