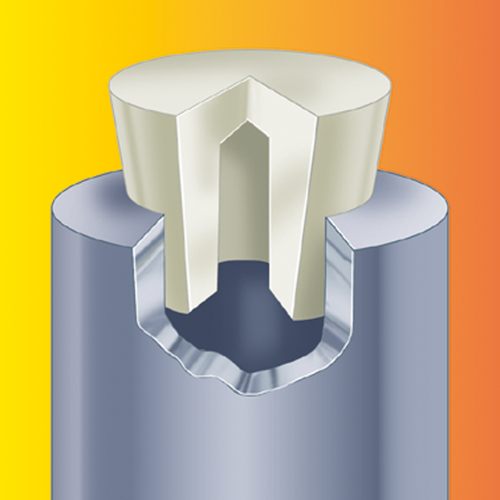

High-Therm Hollow Tapered Plugs made of Silicone - high-temperature resistant
Product specification Extra high-temperature resistant hollow tapered plugs, suitable for... more
Product specification
Extra high-temperature resistant hollow tapered plugs, suitable for applications with Elco varnishing systems and EPL powder coating systems
Reusable, high economic efficiency
No color bleeding, thus clean thread pitches and surfaces
Easy removal and fitting
Material specification:
Very elastic; high elongation at break and tearing strength; suitable for low temperature applications; very long service life; reusable; no curing and melting, no mastic
Technical specification
Material: silicone (silicone rubber)
Colour: red
Temperature range: -76 to +280 °C, for a short time +300 °C
Shore hardness A: 50 - 60°, 70° for greater dimensions
Tearing strength: 16 N/mm
Elongation at break: 300 %
Breaking strength: 6 MPa

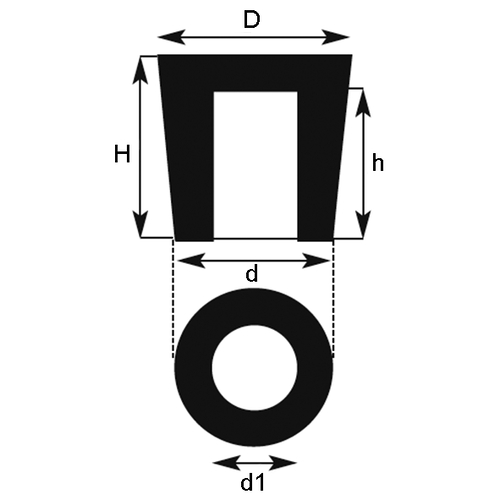

Item | Image |
d mm
|
D mm
|
d1 mm
|
h mm
|
H mm
|
Unit piece
|
Price Euro* |
Buy |
---|---|---|---|---|---|---|---|---|---|
339866 |
|
4,4 | 15 | 50 | 10 | 90.00 | |||
339867 |
|
4,4 | 15 | 50 | 20 | 144.00 | |||
339868 |
|
21 | 27 | 12 | 18 | 28 | 5 | 105.00 | |
339869 |
|
21 | 27 | 12 | 18 | 28 | 10 | 159.00 | |
339870 |
|
33,2 | 41,2 | 20,7 | 19,1 | 25,4 | 5 | 155.00 | |
339871 |
|
33,2 | 41,2 | 20,7 | 19,1 | 25,4 | 10 | 232.00 | |
339872 |
|
41,2 | 50,1 | 28,6 | 19,1 | 25,4 | 5 | 225.00 | |
339873 |
|
41,2 | 50,1 | 28,6 | 19,1 | 25,4 | 10 | 339.00 | |
339874 |
|
47,8 | 55,8 | 34,9 | 19,1 | 25,4 | 5 | 274.00 | |
339875 |
|
47,8 | 55,8 | 34,9 | 19,1 | 25,4 | 10 | 411.00 | |
339876 |
|
53,8 | 63,7 | 34,9 | 15,9 | 25,4 | 5 | 356.00 | |
339877 |
|
53,8 | 63,7 | 34,9 | 15,9 | 25,4 | 10 | 533.00 | |
339878 |
|
61,9 | 75 | 42,8 | 25,4 | 34,9 | 5 | 672.00 | |
339879 |
|
61,9 | 75 | 42,8 | 25,4 | 34,9 | 10 | 1,011.00 |
