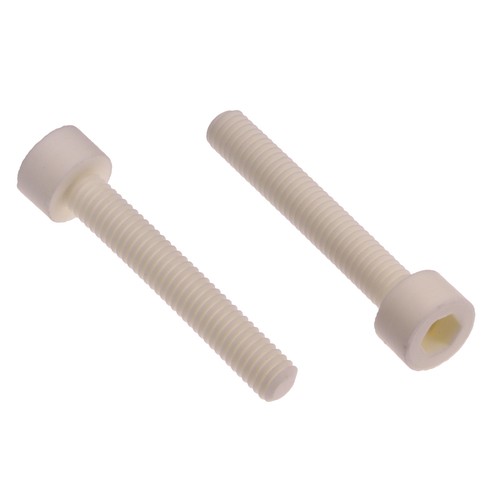

Hexagon Socket Head Cap Screw made of Ceramic
Application area Process technology, industrial furnace, medical devices, labratory devices,... more
Application area
Process technology, industrial furnace, medical devices, labratory devices, aviation and aerospace applications, chemical industry
Technical specification
Alumina ceramic (alumina A998) screws, also available on request made of zirconia
High Temperature stability up to +1,600 °C
Corrosion resistant
Wear resistant/durable
Bio-compatibility (but not FDA approved)
Resistent to radioactivity
Insulating/non-conductive
High material purity/chemically Inert
Tolerances and dimensions: ANSI B18.3.1M-1986
<25 mm: 0.8 mm
>25 mm: 1.6 mm

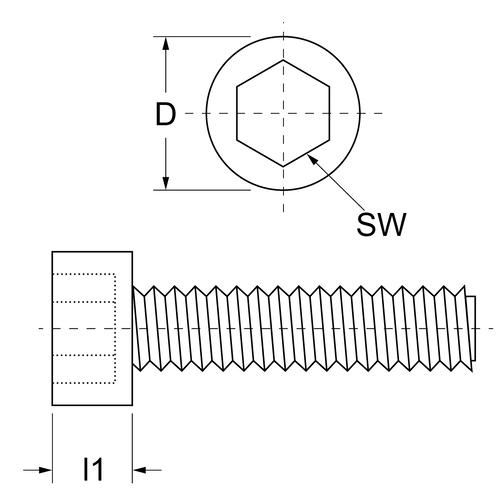

Item | Image | External thread |
Gewindelänge mm
|
D mm
|
l1 mm
|
SW mm
|
Einheit Stück
|
Price Euro* |
Buy |
---|---|---|---|---|---|---|---|---|---|
335070 |
|
M2 x 0,4 | 5 | 3,7 | 2 | 1,5 | 1 | 74.00 | |
335071 |
|
M2 x 0,4 | 10 | 3,7 | 2 | 1,5 | 1 | 80.00 | |
335073 |
|
M3 x 0,5 | 5 | 5,4 | 3 | 2,5 | 1 | 80.00 | |
335074 |
|
M3 x 0,5 | 10 | 5,4 | 3 | 2,5 | 1 | 91.00 | |
335075 |
|
M3 x 0,5 | 20 | 5,4 | 3 | 2,5 | 1 | 99.00 | |
335076 |
|
M3 x 0,5 | 25 | 5,4 | 3 | 2,5 | 1 | 104.00 | |
335077 |
|
M4 x 0,7 | 5 | 6,9 | 4 | 3 | 1 | 92.00 | |
335078 |
|
M4 x 0,7 | 10 | 6,9 | 4 | 3 | 1 | 100.00 | |
335079 |
|
M4 x 0,7 | 20 | 6,9 | 4 | 3 | 1 | 110.00 | |
335080 |
|
M4 x 0,7 | 25 | 6,9 | 4 | 3 | 1 | 115.00 | |
335081 |
|
M4 x 0,7 | 30 | 6,9 | 4 | 3 | 1 | 119.00 | |
335082 |
|
M4 x 0,7 | 40 | 6,9 | 4 | 3 | 1 | 130.00 | |
335083 |
|
M5 x 0,8 | 5 | 8,4 | 5 | 4 | 1 | 98.00 | |
335084 |
|
M5 x 0,8 | 10 | 8,4 | 5 | 4 | 1 | 108.00 | |
335085 |
|
M5 x 0,8 | 20 | 8,4 | 5 | 4 | 1 | 115.00 | |
335086 |
|
M5 x 0,8 | 25 | 8,4 | 5 | 4 | 1 | 121.00 | |
335087 |
|
M5 x 0,8 | 30 | 8,4 | 5 | 4 | 1 | 127.00 | |
335088 |
|
M5 x 0,8 | 40 | 8,4 | 5 | 4 | 1 | 134.00 | |
335089 |
|
M6 x 1 | 5 | 9,9 | 6 | 5 | 1 | 107.00 | |
335090 |
|
M6 x 1 | 10 | 9,9 | 6 | 5 | 1 | 118.00 | |
335091 |
|
M6 x 1 | 20 | 9,9 | 6 | 5 | 1 | 127.00 | |
335092 |
|
M6 x 1 | 25 | 9,9 | 6 | 5 | 1 | 131.00 | |
335093 |
|
M6 x 1 | 30 | 9,9 | 6 | 5 | 1 | 138.00 | |
335094 |
|
M6 x 1 | 40 | 9,9 | 6 | 5 | 1 | 143.00 | |
335095 |
|
M6 x 1 | 50 | 9,9 | 6 | 5 | 1 | 154.00 | |
335096 |
|
M6 x 1 | 60 | 9,9 | 6 | 5 | 1 | 162.00 | |
335097 |
|
M6 x 1 | 75 | 9,9 | 6 | 5 | 1 | 174.00 | |
335098 |
|
M8 x 1,25 | 5 | 12,9 | 8 | 6 | 1 | 114.00 | |
335099 |
|
M8 x 1,25 | 10 | 12,9 | 8 | 6 | 1 | 129.00 | |
335100 |
|
M8 x 1,25 | 20 | 12,9 | 8 | 6 | 1 | 135.00 | |
335101 |
|
M8 x 1,25 | 25 | 12,9 | 8 | 6 | 1 | 139.00 | |
335102 |
|
M8 x 1,25 | 30 | 12,9 | 8 | 6 | 1 | 146.00 | |
335103 |
|
M8 x 1,25 | 40 | 12,9 | 8 | 6 | 1 | 153.00 | |
335104 |
|
M8 x 1,25 | 50 | 12,9 | 8 | 6 | 1 | 163.00 | |
335105 |
|
M8 x 1,25 | 60 | 12,9 | 8 | 6 | 1 | 173.00 | |
335106 |
|
M8 x 1,25 | 75 | 12,9 | 8 | 6 | 1 | 182.00 |
