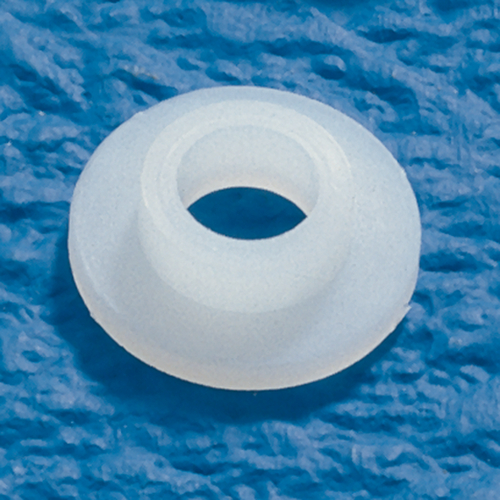

Bushing made of PA (M6 - M8) | Reichelt Chemietechnik

Close menu

No additional information available.

General Information For insulation of fasteners in the construction Prevent contact with... more

Close menu

General Information

For insulation of fasteners in the construction

Prevent contact with conductive material and therefore short circuit

Prevent vibrations and loosening of parts

Resistant to electrolytic corrosion and thus indispensable

For connecting incompatible metals

Allow precise positioning and distance keeping of structural components

Chemical features:

Resistant to aromatic and aliphatic hydrocarbons, fuels, mineral oils and mineral lubricants; suitable for alkohols, esters, ketones, ethers and amines; good resistance to weak alkalis, but only moderate resistance to strong alkalis;

Limited resistance to weak mineral and organic acids; not resistant to oxidizing acids, strong mineral and organic acids as well as phenols; limited resistance to hydrolysis

Material specification:

Polyamide is an elastic, tough, loadable, but notch-sensitive material

Impact resistant

Resistant to abrasion and cold

High fatigue strength and excellent resilience

High wear resistance and good mechanical damping capacity

Insulating properties and an amazingly high tensile strength

Connecting parts made of polyamide and similar plastics protect from rust and corrosion damage

Polyamide can also be used in the food processing industry and in medical fields

PA 6 features a higher impact resistance compared to PA 6.6

PA 6 has the highest water absorption of all common plastics up to 9 to 10 % (followed by PA 6.6 with 8 to 9 %), thus considerably increased toughness, flexibility and elongation. However, the strength of the material can therefore be reduced by up to 10 %.

Material: PA 6 (polyamide 6)

Colour: natural

Density: approx. 1.14 g/cm³

Temperature range: -40 to +85 °C, for a short time +180 °C

Melting temperature: +220 °C (ISO 11357)

Yield stress: 75 MPa (ISO 527)

Elongation at break: >50 % (ISO 527)

Elastic modulus: 3,200 MPa (ISO 527)

Impact resistance: without break (DIN 53453)

Notch impact strength (Charpy): >3 kJ/m² (ISO 179)

Ball pressure hardness: 160 N/mm² (ISO 2039-1)

Shore hardness D: 82° (DIN 53505)

Dielectric strength: 20 kV/mm (IEC 60243)

Dielectric constant: 3.9 at 50 Hz (IEC 60250)

Surface resistance: 10¹³ Ohm (IEC 60093)

Volume resistivity: 10¹⁵ Ohm x cm (IEC 60093)

Comparative tracking index (CTI): >600 (DIN 53480)

Dielectric loss factor (at 50 Hz): 0.02 (specimen dry)

Water absorption: up to 10 % (during storage in water) (DIN 53472)

Flammability rating: UL 94 HB

Item	For thread	d mm	d1 mm	D mm	l1 mm	L mm	Einheit Stück	Price Euro*
306861	M6	6	9	16	1,5	5	50	48.00
306862	M6	6	9	16	1,5	5	100	80.00
306864	M6	6	9	16	1,5	10	50	48.00
306865	M6	6	9	16	1,5	10	100	80.00
306867	M6	6	9	16	1,5	15	50	50.00
306868	M6	6	9	16	1,5	15	100	84.00
306870	M6	6	9	16	1,5	20	50	50.00
306871	M6	6	9	16	1,5	20	100	84.00
306873	M6	6	9	16	1,5	25	50	52.00
306874	M6	6	9	16	1,5	25	100	88.00
306875	M6	6	9	16	1,5	30	50	52.00
306876	M6	6	9	16	1,5	30	100	88.00
306879	M6	6	9	16	1,5	35	50	53.00
306880	M6	6	9	16	1,5	35	100	89.00
306882	M6	6	9	16	1,5	40	50	53.00
306883	M6	6	9	16	1,5	40	100	89.00
306885	M6	6	9	16	1,5	45	50	56.00
306886	M6	6	9	16	1,5	45	100	95.00
306888	M6	6	9	16	1,5	50	50	56.00
306889	M6	6	9	16	1,5	50	100	95.00
306891	M6	6,1	9	19,7	3,7	6,2	50	53.00
306892	M6	6,1	9	19,7	3,7	6,2	100	89.00
306894	M6	6	8,8	15,7	3	10	50	50.00
306895	M6	6	8,8	15,7	3	10	100	86.00
306897	M6	6,5	9	14	1,5	7,6	50	26.00
306898	M6	6,5	9	14	1,5	7,6	100	43.00
306900	M6	6,5	9,6	15,8	1,6	4,4	50	28.00
306901	M6	6,5	9,6	15,8	1,6	4,4	100	45.00
306903	M8	8	14	20	2,6	11,8	50	50.00
306904	M8	8	14	20	2,6	11,8	100	84.00
306906	M8	8,1	11	20	2	4,1	25	48.00
306907	M8	8,1	11	20	2	4,1	50	80.00
306909	M8	8,2	11	20	2	7	50	52.00
306910	M8	8,2	11	20	2	7	100	88.00
306912	M8	8,3	10	19,3	2	15,4	25	49.00
306913	M8	8,3	10	19,3	2	15,4	50	81.00
306915	M8	8,1	11	20	2	5	50	52.00
306916	M8	8,1	11	20	2	5	100	88.00
306918	M8	8,1	11	20	2	10	50	52.00
306919	M8	8,1	11	20	2	10	100	88.00
306921	M8	8,1	11	20	2	15	50	56.00
306922	M8	8,1	11	20	2	15	100	90.00
306924	M8	8,1	11	20	2	20	50	56.00
306925	M8	8,1	11	20	2	20	100	90.00
306927	M8	8,1	11	20	2	25	50	60.00
306928	M8	8,1	11	20	2	25	100	101.00
306930	M8	8,1	11	20	2	30	50	60.00
306931	M8	8,1	11	20	2	30	100	101.00
306933	M8	8,1	11	20	2	35	25	33.00
306934	M8	8,1	11	20	2	35	50	56.00
306936	M8	8,1	11	20	2	40	25	33.00
306937	M8	8,1	11	20	2	40	50	56.00
306939	M8	8,1	11	20	2	45	25	35.00
306940	M8	8,1	11	20	2	45	50	58.00
306942	M8	8,1	11	20	2	50	25	35.00
306943	M8	8,1	11	20	2	50	50	58.00
306945	M8	8,5	12,5	23	1	4	50	52.00
306946	M8	8,5	12,5	23	1	4	100	82.00
306948	M8	8,5	12,5	25	3	7	50	60.00
306949	M8	8,5	12,5	25	3	7	100	101.00
