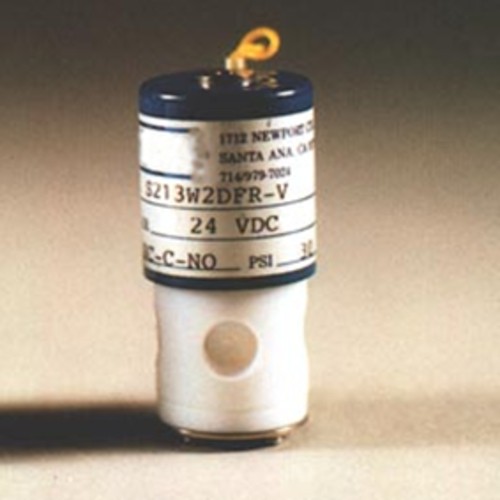

2/2-Way Solenoid Valve made of PTFE

2/2-Way Solenoid Valve made of PTFE
No additional information available.
General Information PTFE solenoid valves for conveyance of neutral and aggressive gases and... more

General Information

PTFE solenoid valves for conveyance of neutral and aggressive gases and liquids.

THOMAFLUID®-solid PTFE solenoid valves are constructed in the seating principle, the solenoid parts being separated from medium by the PTFE bellows. The special shape of the sealing edges ensures high tightness. The electrical connection is made via a plug. The control head can be easily removed from the valve body by means of a cap nut. The extremely low effort for assembly is of great importance for cleaning of the valves. All medium-contacting parts are made of PTFE.

Solenoid valves with 6 watt are usually suitable for sensitive low-pressure analytical apparatuses. For all other applications as well as for working at higher pressure the 12 watt valves are recommended.

Material:

Housing: steel (electrical part)

Valve body: PTFE (polytetrafluoroethylene)

Gasket: PTFE (polytetrafluoroethylene)

Valve type: diaphragm valve

Mounting position: optional

Internal volume: 0.3 ml

Media handled: neutral and aggressive gases and liquids

Max. temperature of medium: -50 to +100 °C

Max. ambient temperature: -50 to +100 °C

Pressure range gases: 0 - 2 bar

Pressure range liquids: 0 - 2 bar

Duty factor: 100 % ED

Operating time: 20 - 25 ms

Protection category: IP 54

Function: normally closed (NC)

Power consumption: 6 or 12 W

Seat diameter: 1.6; 2.4; 3.2; 6.4; 9.5 mm

Connection: UNF 1/4"-28; NPT 1/8", NPT 1/4" or NPT 3/8"

Life cycle: 5 Mio. operations

Item Image NW
mm
Voltage
volt
Leistungsaufnahme
W
Innengewinde Einheit
Stück
Price
Euro*
Buy
86122
1,6 12= 6 UNF 1/4"-28 1 974.00
86123
1,6 24= 6 UNF 1/4"-28 1 974.00
86124
1,6 230~ 6 UNF 1/4"-28 1 974.00
86125
2,4 12= 6 NPT 1/8" 1 974.00
86126
2,4 24= 6 NPT 1/8" 1 974.00
86127
2,4 230~ 6 NPT 1/8" 1 974.00
86131
6,4 12= 6 NPT 1/4" 1 1,379.00
86132
6,4 24= 6 NPT 1/4" 1 1,379.00
86133
6,4 230~ 6 NPT 1/4" 1 1,379.00
871241
2,4 24= 10 NPT 1/4" 1 974.00
871281
3,2 230~ 10 NPT 1/4" 1 974.00
871331
4,8 24= 10 NPT 1/4" 1 974.00
86068
3,2 12= 12 NPT 1/8" 1 974.00
86069
3,2 24= 12 NPT 1/8" 1 974.00
86070
3,2 230~ 12 NPT 1/8" 1 974.00
86089
6,4 12= 12 NPT 1/4" 1 1,379.00
86090
6,4 24= 12 NPT 1/4" 1 1,379.00
86091
6,4 230~ 12 NPT 1/4" 1 1,379.00
86140
9,5 12= 12 NPT 3/8" 1 1,379.00
86141
9,5 24= 12 NPT 3/8" 1 1,379.00
86142
9,5 230~ 12 NPT 3/8" 1 1,379.00
