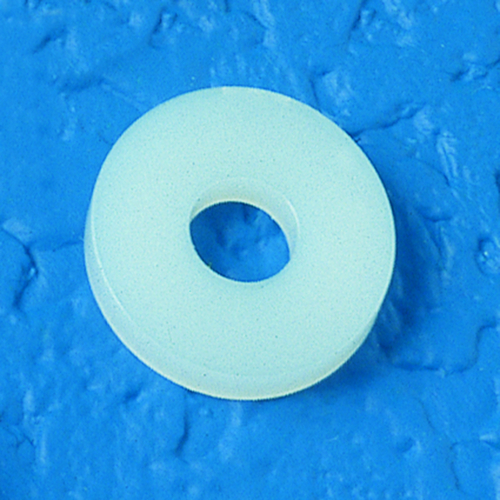

Washer made of PA (Ø 2.2 - 20.5) | Reichelt Chemietechnik

Preview: Washer made of PA (Ø 2.2 - 20.5)

Product specification Universal washers or spacer rings Ideal sliding rings between rotating... more

Close menu

Product specification

Universal washers or spacer rings

Ideal sliding rings between rotating parts

Insulate moisture and electricity

Absorb vibrations

Resistant to corrosion and many chemicals

Technical specification

Material: PA 6 (polyamide 6)

Colour: natural

Regulations: NFE 27611, NFE 25513, NFE 25514

General Information Universal washers or spacer rings Ideal sliding rings between rotating... more

Close menu

General Information

Universal washers or spacer rings

Ideal sliding rings between rotating parts

Insulate moisture and electricity

Absorb vibrations

Chemical features:

Resistant to aromatic and aliphatic hydrocarbons, fuels, mineral oils and mineral lubricants; suitable for alkohols, esters, ketones, ethers and amines; good resistance to weak alkalis, but only moderate resistance to strong alkalis; limited resistance to weak mineral and organic acids; not resistant to oxidizing acids, strong mineral and organic acids as well as phenols; limited resistance to hydrolysis

Material specification:

Polyamide is an elastic, tough, loadable, but notch-sensitive material

Impact resistant

Resistant to abrasion and cold

High fatigue strength and excellent resilience

High wear resistance and good mechanical damping capacity

Insulating properties and an amazingly high tensile strength

Connecting parts made of polyamide and similar plastics protect from rust and corrosion damage

Polyamide can also be used in the food processing industry and in medical fields

PA 6 features a higher impact resistance compared to PA 6.6

PA 6 has the highest water absorption of all common plastics up to 9 to 10 % (followed by PA 6.6 with 8 to 9 %), thus considerably increased toughness, flexibility and elongation. However, the strength of the material can therefore be reduced by up to 10 %.

Material: PA 6 (polyamide 6)

Colour: natural

Density: approx. 1.14 g/cm³

Temperature range: -40 to +85 °C, for a short time +180 °C

Melting temperature: +220 °C (ISO 11357)

Yield stress: 75 MPa (ISO 527)

Elongation at break: >50 % (ISO 527)

Elastic modulus: 3,200 MPa (ISO 527)

Impact resistance: without break (DIN 53453)

Notch impact strength (Charpy): >3 kJ/m² (ISO 179)

Ball pressure hardness: 160 N/mm² (ISO 2039-1)

Shore hardness D: 82° (DIN 53505)

Dielectric strength: 20 kV/mm (IEC 60243)

Dielectric constant: 3.9 at 50 Hz (IEC 60250)

Surface resistance: 10¹³ Ohm (IEC 60093)

Volume resistivity: 10¹⁵ Ohm x cm (IEC 60093)

Comparative tracking index (CTI): >600 (DIN 53480)

Dielectric loss factor (at 50 Hz): 0.02 (specimen dry)

Water absorption: up to 10 % (during storage in water) (DIN 53472)

Flammability rating: UL 94 HB

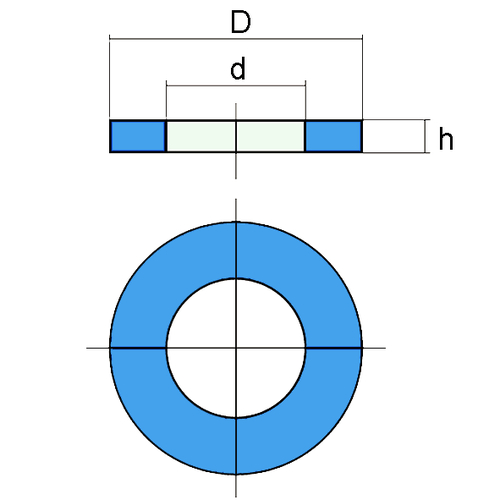

Item	For thread	d mm	D mm	h mm	Einheit Stück	Price Euro*
308968	M2	2,2	5	0,3	50	7.00
308969	M2	2,2	5	0,3	100	11.00
308970	M2,5	2,7	7	0,5	50	10.00
308971	M2,5	2,7	7	0,5	100	17.00
308972	M3	3,2	8	0,8	50	12.00
308973	M3	3,2	8	0,8	100	21.00
308974	M4	4,2	10	0,8	50	13.00
308975	M4	4,2	10	0,8	100	22.00
308978	M5	5,2	12	1	50	20.00
308979	M5	5,2	12	1	100	33.00
308984	M6	6,2	14	1,2	50	20.00
308985	M6	6,2	14	1,2	100	33.00
308986	M8	8,2	18	1,5	50	22.00
308987	M8	8,2	18	1,5	100	35.00
308992	M10	10,2	22	2	25	24.00
308993	M10	10,2	22	2	50	37.00
332975	M12	12,5	27	2,5	25	28.00
332976	M12	12,5	27	2,5	50	48.00
332977	M14	14,5	30	2,5	25	33.00
332978	M14	14,5	30	2,5	50	55.00
332979	M16	16,5	32	3	25	39.00
332980	M16	16,5	32	3	50	67.00
332981	M18	18,5	36	3	25	60.00
332982	M18	18,5	36	3	50	84.00
332983	M20	20,5	40	3	25	64.00
332984	M20	20,5	40	3	50	88.00
