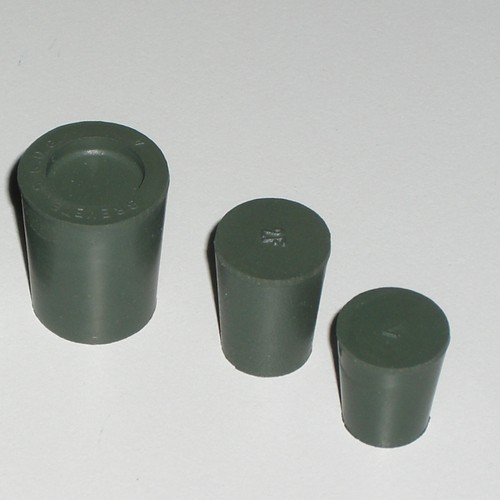

High-Chem Stopper made of FPM

High-Chem Stopper made of FPM
Application area Laboratory technology, chemical technology, sealing technique, container... more

Application area

Laboratory technology, chemical technology, sealing technique, container technology, automobile industry, engineering operations and maintenance

Product specification

Highest temperature resistance

Outstanding chemical resistance, particularly to aliphatic, aromatic and halogen-substituted hydrocarbons, fuels, oils, fats, hydraulic fluids, alcohols and acids

Very good heat resistance

Resistant to effects of ozone, aging, and weather

Flame-resistant

Highest mechanical strength

Technical specification

Material: FPM (fluorinated rubber)

Colour: green

Shore hardness A: 75°

Temperature range: -55 to +200 °C, for a short time up to +315 °C

Sterilization: autoclavable (+136 °C)

Tolerance: according to DIN 7715 T2 M3

No additional information available.
Item Image Ø bottom
mm
Ø top
mm
Height
mm
Unit
piece
Price
Euro*
Buy
340873
3 7 19 5 26.00
340874
3 7 19 15 66.00
340875
6 10 17,5 5 52.00
340876
6 10 17,5 15 128.00
340877
9 12 19 5 66.00
340878
9 12 19 15 160.00
340879
10 14 19 5 70.00
340880
10 14 19 15 174.00
340881
12 15 19 5 88.00
340882
12 15 19 15 216.00
340883
13 16 21 5 94.00
340884
13 16 21 15 228.00
340885
14 17 21 5 122.00
340886
14 17 21 15 282.00
340887
16 19 23 5 156.00
340888
16 19 23 15 242.00
340889
18 21 25 5 174.00
340890
18 21 25 15 272.00
340891
19 23 28 2 110.00
340892
19 23 28 5 204.00
340895
24 29 32 2 176.00
340896
24 29 32 5 344.00
340897
26 32 34 1 124.00
340898
26 32 34 2 198.00
340899
28 34 36 1 146.00
340900
28 34 36 2 228.00
340901
31 37 41 1 168.00
340902
31 37 41 2 264.00
340903
34 40 43 1 182.00
340904
34 40 43 2 280.00
340905
36 43 45 1 240.00
340906
36 43 45 2 372.00
340907
40 49 49 1 286.00
340908
40 49 49 2 438.00
