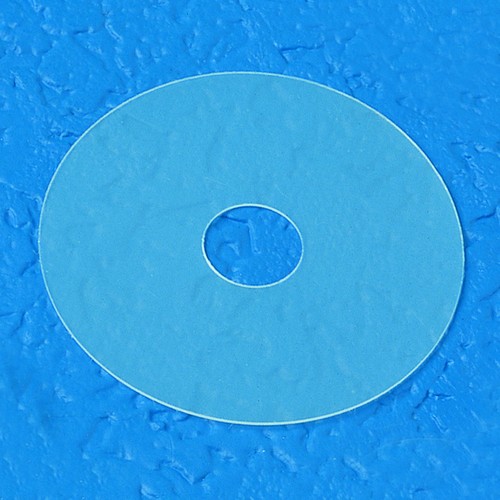

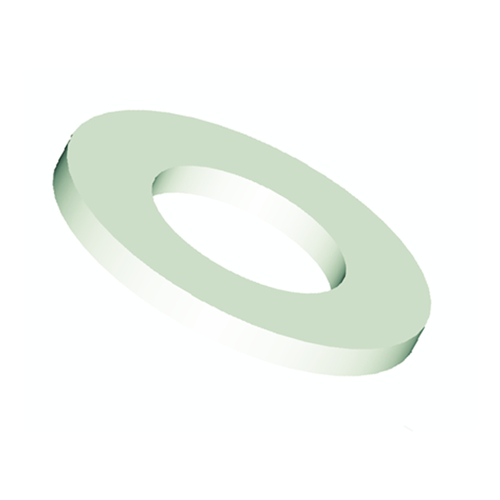

Washer made of PA (Ø 12.2 - 13.2)

No additional information available.
General Information Universal washers or spacer rings Ideal sliding rings between rotating... more

General Information

Universal washers or spacer rings

Ideal sliding rings between rotating parts

Insulate moisture and electricity

Absorb vibrations

Chemical features:

Resistant to aromatic and aliphatic hydrocarbons, fuels, mineral oils and mineral lubricants; suitable for alkohols, esters, ketones, ethers and amines; good resistance to weak alkalis, but only moderate resistance to strong alkalis; limited resistance to weak mineral and organic acids; not resistant to oxidizing acids, strong mineral and organic acids as well as phenols; limited resistance to hydrolysis

Material specification:

Polyamide is an elastic, tough, loadable, but notch-sensitive material

Impact resistant

Resistant to abrasion and cold

High fatigue strength and excellent resilience

High wear resistance and good mechanical damping capacity

Insulating properties and an amazingly high tensile strength

Connecting parts made of polyamide and similar plastics protect from rust and corrosion damage

Polyamide can also be used in the food processing industry and in medical fields

PA 6 features a higher impact resistance compared to PA 6.6

PA 6 has the highest water absorption of all common plastics up to 9 to 10 % (followed by PA 6.6 with 8 to 9 %), thus considerably increased toughness, flexibility and elongation. However, the strength of the material can therefore be reduced by up to 10 %.

Material: PA 6 (polyamide 6)

Colour: natural

Density: approx. 1.14 g/cm3

Temperature range: -40 to +85 °C, for a short time +180 °C

Melting temperature: +220 °C (ISO 11357)

Yield stress: 75 MPa (ISO 527)

Elongation at break: >50 % (ISO 527)

Elastic modulus: 3,200 MPa (ISO 527)

Impact resistance: without break (DIN 53453)

Notch impact strength (Charpy): >3 kJ/m2 (ISO 179)

Ball pressure hardness: 160 N/mm2 (ISO 2039-1)

Shore hardness D: 82° (DIN 53505)

Dielectric strength: 20 kV/mm (IEC 60243)

Dielectric constant: 3.9 at 50 Hz (IEC 60250)

Surface resistance: 1013 Ohm (IEC 60093)

Volume resistivity: 1015 Ohm x cm (IEC 60093)

Comparative tracking index (CTI): >600 (DIN 53480)

Dielectric loss factor (at 50 Hz): 0.02 (specimen dry)

Water absorption: up to 10 % (during storage in water) (DIN 53472)

Flammability rating: UL 94 HB

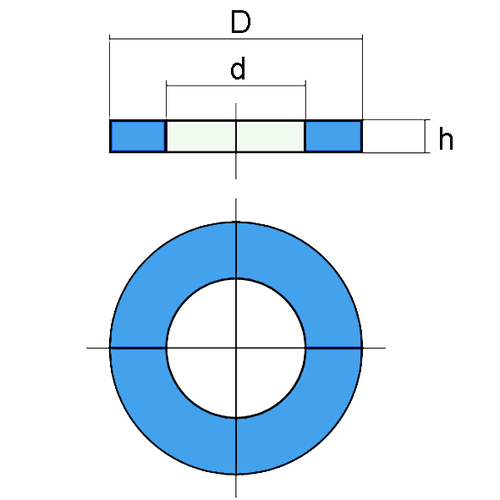

Item Image d
mm
D
mm
h
mm
Unit
piece
Price
Euro*
Buy
311326
12,2 16,2 1 50 41.00
311327
12,2 16,2 1 100 69.00
311328
12,2 16,2 2,5 50 58.00
311329
12,2 16,2 2,5 100 101.00
311332
12,2 18 1 50 41.00
311333
12,2 18 1 100 69.00
311338
12,2 24 1 25 56.00
311339
12,2 24 1 50 97.00
311340
12,2 37 1 10 33.00
311341
12,2 37 1 25 67.00
311342
12,3 14 0,8 25 67.00
311343
12,3 14 0,8 50 110.00
311346
12,5 17 2 50 48.00
311347
12,5 17 2 100 82.00
311348
12,5 20 1 25 60.00
311349
12,5 20 1 50 99.00
311354
12,5 34 3 25 30.00
311355
12,5 34 3 50 65.00
311356
12,5 60 3 10 41.00
311357
12,5 60 3 25 95.00
311360
12,7 35 1,5 10 58.00
311361
12,7 35 1,5 25 97.00
310974
13 19 1,5 25 39.00
310975
13 19 1,5 50 65.00
310976
13 20 1 50 39.00
310977
13 20 1 100 67.00
310986
13 28 1 25 39.00
310987
13 28 1 50 65.00
310990
13 40 2 25 56.00
310991
13 40 2 50 93.00
310994
13,2 20 3 25 33.00
310995
13,2 20 3 50 56.00
