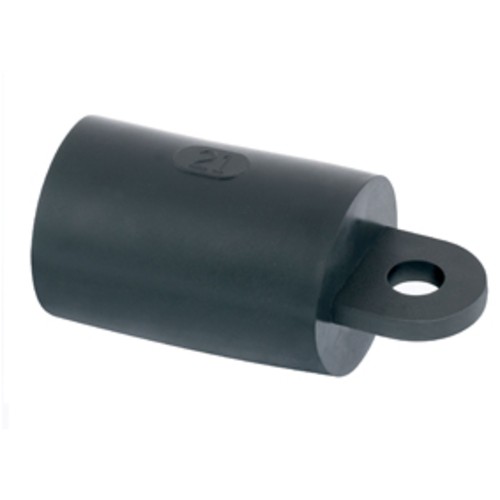

Pull Tab Cap made of PVC-P (plasticized PVC, soft) - Standard

Product specification Extremely abrasion-resistant Outstandingly suited for threaded... more

Product specification

Extremely abrasion-resistant

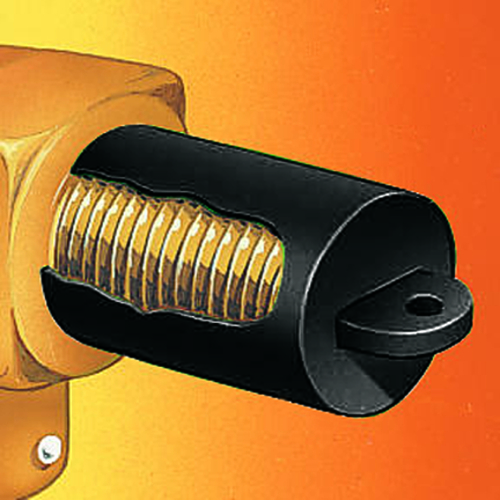

Outstandingly suited for threaded applications

Effect of direct sunlight: Moderate resistance

Chemical features:

Good resistance to weak acids and weak alkalis, as well as inorganic salt solutions

Technical specification

Material: PVC-P (polyvinyl chloride, soft)

Colour: black

Shore hardness A: 55° ±5°

Density: 1.17 - 1.20 g/cm³

Temperature range: -29 to +66 °C

Tensile strength: 20 N/mm²

Linear expansion: min. 300 %

Tear propagation resistance: 3.5 kN/m

Dielectric constant: 4.2 - 8 at 50 Hz

No additional information available.

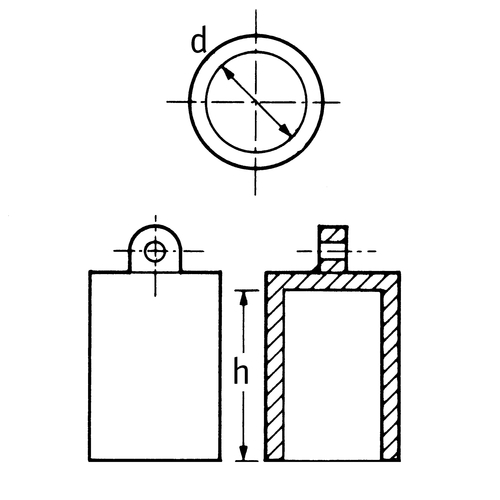

Item	d mm	h mm	Unit piece	Price Euro*
315046	5	23,5	25	41.00
315047	5	23,5	50	69.00
315048	6	25	25	41.00
315049	6	25	50	69.00
315050	7	24	25	41.00
315051	7	24	50	69.00
315052	8	24,5	25	52.00
315053	8	24,5	50	88.00
315054	9	25	25	52.00
315055	9	25	50	88.00
315056	10	29,5	10	28.00
315057	10	29,5	25	58.00
315058	11	29	10	28.00
315059	11	29	25	58.00
315060	12	29	10	28.00
315061	12	29	25	58.00
315062	13	29	10	35.00
315063	13	29	25	71.00
315064	14	28,5	10	35.00
315065	14	28,5	25	71.00
315066	15	29,5	10	37.00
315067	15	29,5	25	80.00
315068	16	28	10	37.00
315069	16	28	25	80.00
315070	17	29,5	10	37.00
315071	17	29,5	25	80.00
315072	18	28,5	10	41.00
315073	18	28,5	25	86.00
315074	19	29,5	10	41.00
315075	19	29,5	25	86.00
315076	20	28,5	10	41.00
315077	20	28,5	25	86.00
315078	21	34,5	5	30.00
315079	21	34,5	15	73.00
315080	22	34	5	30.00
315081	22	34	15	73.00
315082	23	34,5	5	30.00
315083	23	34,5	15	73.00
315084	24	34	5	33.00
315085	24	34	15	78.00
315086	25	34,5	5	33.00
315087	25	34,5	15	78.00
315088	26	34,5	5	37.00
315089	26	34,5	15	93.00
315090	27	33,5	5	37.00
315091	27	33,5	15	93.00
315092	28	33,5	5	43.00
315093	28	33,5	15	105.00
315094	29	35	5	43.00
315095	29	35	15	105.00
315096	30	34,5	5	45.00
315097	30	34,5	15	116.00
