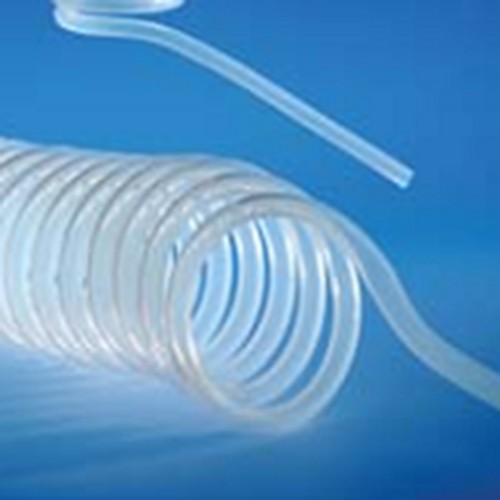

PVDF Spiral Tubing

Preview: PVDF Spiral Tubing Preview: PVDF Spiral Tubing Preview: PVDF Spiral Tubing
PVDF Spiral Tubing
PVDF Spiral Tubing
PVDF Spiral Tubing

Description General Information
Description
Product specification Resistance to UV and radioactive radiation Ideal for cleanroom... more
Close menu

Product specification

Resistance to UV and radioactive radiation

Ideal for cleanroom applications

Good mechanical stability

Good dimensional stability due to strong hardness

Thermoplasticly processed

High resistance to aging

High dielectric constant

Good abrasion resistance

Resistant to oxidizing agents, acids, alcohols, aliphates, weak alkalis, chlorides and halogens. Not resistant to fuming sulfuric acid, hot concentrated alkalis, alkali metals, dimethyl formamide, dimethyl sulfoxide, dimethyl acetamide and some strongly basic amines.

Technical specification

Material: PVDF (polyvinylidene fluoride)

Colour: milky

Temperature range: -40 to +120 °C

Regulations: USP Class VI; FDA; BfR 3-A Hygiene Regulations for the dairy machinery

Flammability rating: UL 94 V-0

General Information
more
Close menu
No additional information available.
Item Image Inside Ø
mm
 Außen-Ø
mm
 max. Betr.-Druck1
bar
 Spiral-Ø innen
mm
 Blocklänge
mm
 Arbeitslänge
m
 Einheit
Stück
 Price
Euro* 		Buy
338711
4 6 18 50 130 2,5 1 220.00
338712
4 6 18 50 280 6 1 360.00
338713
6 8 12 50 180 2,5 1 268.00
338714
6 8 12 76 270 6 1 498.00
