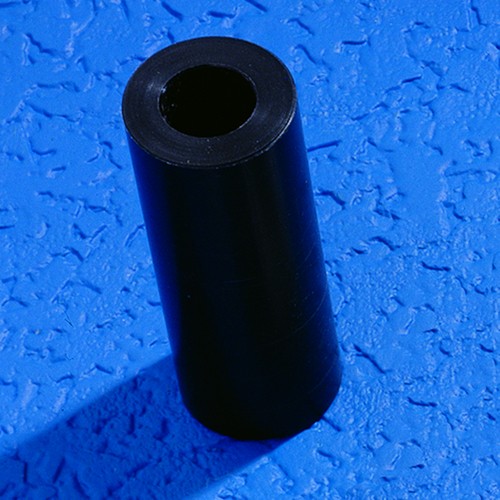

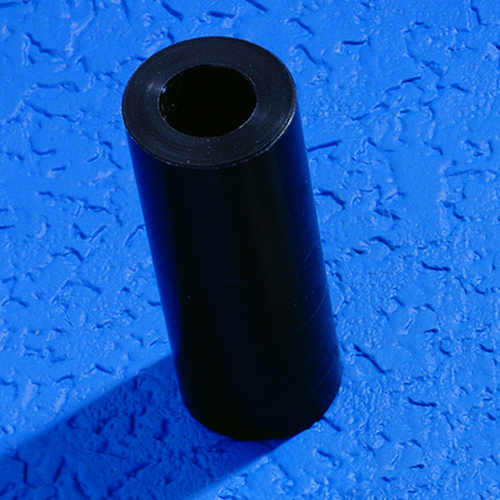

Spacer made of PS

Product specification Chemical features: Resistant to alcohols, weak and strong alkalis,... more

Product specification

Chemical features:

Resistant to alcohols, weak and strong alkalis, organic and weak mineral acids.

Resistance to weather:

Less suitable for outdoor applications because of aging by UV radiation which causes the surface to become matt; dark colours behave more favorably than light ones.

Technical specification

Material: PS (polystyrene)

Colour: black

Density: 1.05 g/cm3

Temperature range: -10 to +80 °C

Flammability rating: UL 94 HB

Vicat softening temperature: approx. +90 °C (5 kg) (ASTM D 53460)

Tensile modulus: 3,200 MPa (N/mm2) (ISO 527)

Elongation at break: 3 % (ISO 527)

Bending strength: approx. 90 (ASTM D 53423)

Notch impact strength: approx. 2 kJ/m2 (DIN 53453)

Ball pressure hardness: approx. 150 MPa (DIN 53456)

Water absorption: <0.1 % (ISO 62)

Dielectric strength: 90 kV/mm (DIN 53481)

Volume resistivity: >1016 Ohm x cm (DIN 53482)

Dielectric constant: 2.5 at 50 Hz (DIN 53483)

Dielectric loss factor (at 50 Hz): 1-4 x 10-4 (DIN 53483)

No additional information available.

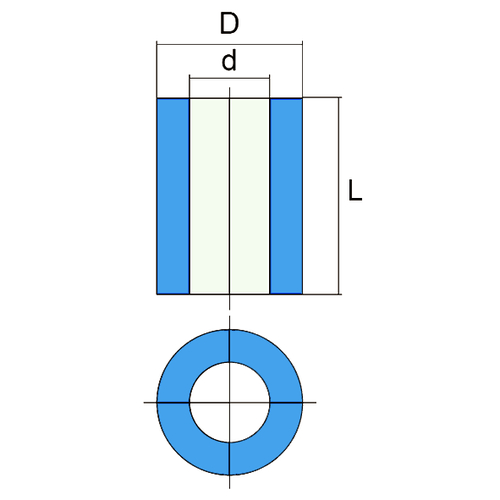

Item Image d
mm
D
mm
L
mm
Unit
piece
Price
Euro*
Buy
338611
3,5 7 5 25 45.00
338612
3,5 7 5 50 80.00
338613
3,5 7 8 25 58.00
338614
3,5 7 8 50 99.00
338615
3,5 7 10 25 58.00
338616
3,5 7 10 50 99.00
338617
3,5 7 12 25 58.00
338618
3,5 7 12 50 99.00
338619
3,5 7 15 25 58.00
338620
3,5 7 15 50 99.00
338621
3,5 7 18 25 58.00
338622
3,5 7 18 50 99.00
338623
3,5 7 20 25 60.00
338624
3,5 7 20 50 105.00
338625
3,5 7 25 25 60.00
338626
3,5 7 25 50 105.00
338627
3,5 7 30 25 60.00
338628
3,5 7 30 50 105.00
338629
3,5 7 35 25 65.00
338630
3,5 7 35 50 112.00
338631
4,5 8 5 25 54.00
338632
4,5 8 5 50 93.00
338633
4,5 8 8 25 54.00
338634
4,5 8 8 50 93.00
338635
4,5 8 10 25 54.00
338636
4,5 8 10 50 93.00
338637
4,5 8 12 25 54.00
338638
4,5 8 12 50 93.00
338639
4,5 8 15 25 54.00
338640
4,5 8 15 50 93.00
338641
4,5 8 18 25 54.00
338642
4,5 8 18 50 93.00
338643
4,5 8 20 25 54.00
338644
4,5 8 20 50 93.00
338645
4,5 8 25 25 54.00
338646
4,5 8 25 50 93.00
338647
4,5 8 30 25 54.00
338648
4,5 8 30 50 93.00
338649
4,5 8 35 25 84.00
338650
4,5 8 35 50 144.00
338651
5,5 10 5 25 58.00
338652
5,5 10 5 50 99.00
338653
5,5 10 8 25 58.00
338654
5,5 10 8 50 99.00
338655
5,5 10 10 25 58.00
338656
5,5 10 10 50 99.00
338657
5,5 10 12 25 65.00
338658
5,5 10 12 50 112.00
338659
5,5 10 15 25 65.00
338660
5,5 10 15 50 112.00
338661
5,5 10 18 25 84.00
338662
5,5 10 18 50 144.00
338663
5,5 10 20 25 84.00
338664
5,5 10 20 25 144.00
338665
5,5 10 25 25 84.00
338666
5,5 10 25 50 144.00
338667
6,2 10 30 25 84.00
338668
6,2 10 30 50 144.00
338669
6,2 10 35 25 84.00
338670
6,2 10 35 50 144.00
