Plain Bearing Bush made of Polyamide - with flange

No additional information available.
General Information Ready-to-install plastic plain bearing bushes Dry running possible at... more

General Information

Ready-to-install plastic plain bearing bushes

Dry running possible at low sliding speed

Design as bushes without flange or as flange bushes

For shaft diameters till 60 mm

For low speed unlubricated or medium speed lubricated

Very low-wear with smooth shafts and sufficient lubrication

Noise-absorbing and vibration-damping

After press-fitting into a bore H7, the inside diameter tolerance is approx. E10

Material: PA 6.6 (polyamide 6.6, die cast)

pv-value: up to 0.34 MPa x m/s, depending on sliding speed and bearing temperature

Dyn. bearing load: max. 18 N/mm2, depending on sliding speed and bearing temperature

Max. peripheral speed: 2 m/s, depending on the surface pressure

Temperature range: -40 to +80 °C

Bearing clearance: 0.01 mm per mm shaft-Ø

Shaft (recommended): tolerance h9, surface finish Ra max. 1.3, strength min. 650 N/mm2

Tolerances d1-Ø (b.d. = bottom dimensions, t.d. = top dimensions):

8 mm: b.d.: +0.06 mm; t.d.: +0.10 mm

10 mm: b.d.: +0.08 mm; t.d.: +0.12 mm

12 mm: b.d.: +0.10 mm; t.d.: +0.14 mm

15 mm: b.d.: +0.12 mm; t.d.: +0.18 mm

16 mm: b.d.: +0.13 mm; t.d.: +0.19 mm

20 mm: b.d.: +0.16 mm; t.d.: +0.23 mm

25 mm: b.d.: +0.18 mm; t.d.: +0.25 mm

28 mm: b.d.: +0.20 mm; t.d.: +0.28 mm

30 mm: b.d.: +0.21 mm; t.d.: +0.30 mm

32 mm: b.d.: +0.22 mm; t.d.: +0.32 mm

40 mm: b.d.: +0.24 mm; t.d.: +0.36 mm

50 mm: b.d.: +0.30 mm; t.d.: +0.43 mm

54 mm: b.d.: +0.32 mm; t.d.: +0.46 mm

60 mm: b.d.: +0.34 mm; t.d.: +0.48 mm

Tolerances d2-Ø (t.d. = top dimensions):

14 mm: t.d.: +0.10 mm

20 mm: t.d.: +0.12 mm

26 mm: t.d.: +0.14 mm

32 mm: t.d.: +0.15 mm

40 mm: t.d.: +0.18 mm

50 mm: t.d.: +0.20 mm

62 mm: t.d.: +0.22 mm

70 mm: t.d.: +0.24 mm

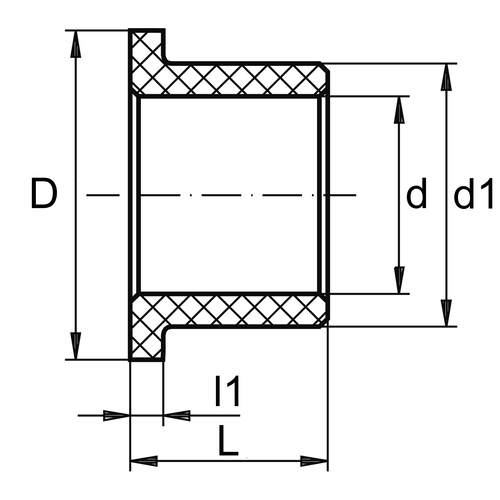

Item Image d
mm
d1
mm
Ø flange (D)
mm
L
mm
l1
mm
Weight
g
Unit
piece
Price
Euro*
Buy
706609
6 10 15 8 1,5 0,8 5 15.00
706610
6 10 15 8 1,5 0,8 10 20.00
706611
8 12 16 6 2 0,8 5 15.00
706612
8 12 16 6 2 0,8 10 20.00
706613
8 14 20 10 2 1,7 5 20.00
706614
8 14 20 10 2 1,7 10 30.00
706615
10 12 16 6 2 0,6 5 15.00
706616
10 12 16 6 2 0,6 10 20.00
706617
10 14 20 10 2 1,3 5 15.00
706618
10 14 20 10 2 1,3 10 25.00
706619
10 16 20 10 2 1,8 5 20.00
706620
10 16 20 10 2 1,8 10 30.00
706621
12 14 20 10 2 1 5 15.00
706622
12 14 20 10 2 1 10 25.00
706623
12 16 20 10 2 1,5 5 20.00
706624
12 16 20 10 2 1,5 10 30.00
706625
14 20 30 24 2 2,8 5 25.00
706626
14 20 30 24 2 2,8 10 35.00
706627
16 20 28 15 2 2,8 5 20.00
706628
16 20 28 15 2 2,8 10 30.00
706629
16 22 30 15 2 4 5 20.00
706630
16 22 30 15 2 4 10 30.00
706631
16 24 30 15 2 5 5 25.00
706632
16 24 30 15 2 5 10 35.00
706633
20 24 30 15 2 3 5 20.00
706634
20 24 30 15 2 3 10 30.00
706635
20 25 30 15 2 3,5 5 20.00
706636
20 25 30 15 2 3,5 10 30.00
706637
20 26 30 12 2 3,5 5 20.00
706638
20 26 30 12 2 3,5 10 30.00
706639
20 26 32 15 2 4,5 5 25.00
706640
20 26 32 15 2 4,5 10 35.00
706641
20 26 32 20 3 5,8 5 25.00
706642
20 26 32 20 3 5,8 10 35.00
706643
20 30 36 20 3 9,7 5 30.00
706644
20 30 36 20 3 9,7 10 40.00
706645
25 30 36 20 3 6 5 25.00
706646
25 30 36 20 3 6 10 35.00
706647
25 32 40 20 3 8,5 5 25.00
706648
25 32 40 20 3 8,5 10 35.00
706649
25 35 45 20 3 12,7 5 30.00
706650
25 35 45 20 3 12,7 10 40.00
706651
25 35 45 30 4 18,5 5 30.00
706652
25 35 45 30 4 18,5 10 40.00
706653
28 32 40 30 4 8 5 25.00
706654
28 32 40 30 4 8 10 35.00
706655
28 38 48 30 4 20 5 30.00
706656
28 38 48 30 4 20 10 40.00
706657
30 32 40 30 4 5 5 25.00
706658
30 32 40 30 4 5 10 35.00
706659
30 35 45 30 4 11,5 5 30.00
706660
30 35 45 30 4 11,5 10 40.00
706661
30 38 48 30 4 17 5 30.00
706662
30 38 48 30 4 17 10 40.00
706663
32 35 45 30 4 8,5 5 30.00
706664
32 35 45 30 4 8,5 10 40.00
706665
32 38 48 30 4 18,5 5 30.00
706666
32 38 48 30 4 18,5 10 40.00
706667
32 40 50 30 4 19 5 30.00
706668
32 40 50 30 4 19 10 40.00
706669
40 44 54 40 5 16,5 5 35.00
706670
40 44 54 40 5 16,5 10 45.00
706671
40 48 58 40 5 30 5 55.00
706672
40 48 58 40 5 30 10 75.00
706673
40 50 60 40 5 36 5 55.00
706674
40 50 60 40 5 36 10 75.00
706675
50 56 70 50 5 34,5 5 55.00
706676
50 56 707 50 5 34,5 10 75.00
706677
50 60 70 50 5 52 5 60.00
706678
50 60 70 50 5 52 10 90.00
706679
60 70 80 60 5 74 5 85.00
706680
60 70 80 60 5 74 10 120.00
