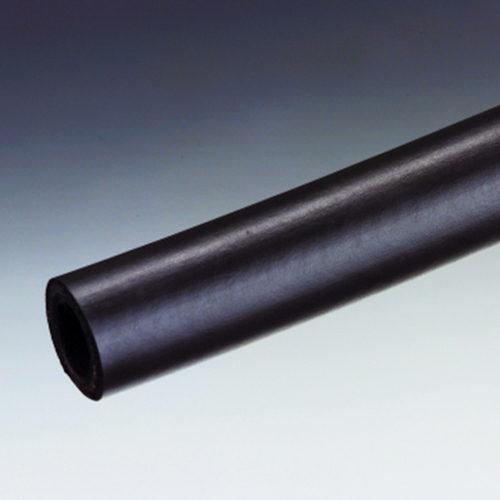

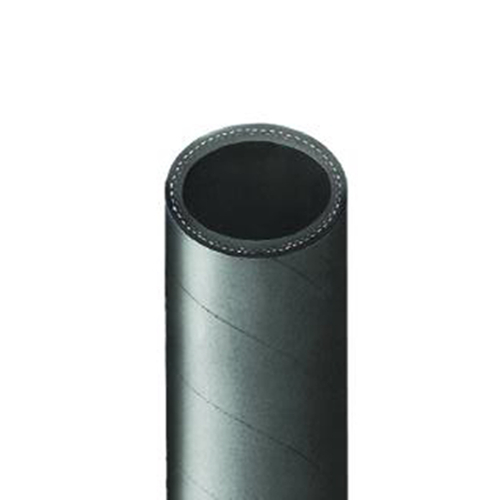

NBR/CSM High-Pressure Tubing

Product specification Resistant to fluids on mineral oil and glycol base, lubricants, motor... more

Product specification

Resistant to fluids on mineral oil and glycol base, lubricants, motor lubricating oils, diesel fuels, vegetable and animal oils, silicones, dilute acids and alkalis at room temperature, cooling water, compressed air.

Good thermal resistance.

Jacket is distinguished by good abrasion and heat resistance, high flame resistance, and excellent resistance to ozone, aging, and weather.

Technical specification

Material:

Liner: NBR (butadiene-acrylonitrile rubber)

Jacket: CSM (chlorosulfonated polyethylene, with textile imprint)

Colour: black

Temperature range: -40 to +125 °C, for a short time +140 °C

Insert: single textile fabric

Close menu

No additional information available.

Item	Inside Ø mm	Außen-Ø mm	max. Betr.-Druck¹ bar	min. Biegeradius mm	Einheit m	Price Euro*
13146	4	10	75	30	5	93.00
13147	4	10	75	30	10	167.00
13148	5	11	70	35	5	97.00
13149	5	11	70	35	10	174.00
13150	6	12	65	40	5	103.00
13151	6	12	65	40	10	180.00
13152	8	14	55	50	5	116.00
13153	8	14	55	50	10	210.00
13154	9	15	50	55	5	137.00
13155	9	15	50	55	10	247.00
13156	10	16	50	60	5	161.00
13157	10	16	50	60	10	289.00
13160	12	19	60	60	3	144.00
13161	12	19	60	60	5	212.00
13162	15	23	40	90	3	140.00
13163	15	23	40	90	5	212.00
13164	18	26	35	110	3	185.00
13165	18	26	35	110	5	274.00
13166	22	31	33	120	1	107.00
13167	22	31	33	120	3	289.00
