Stainless Steel Vacuum Tubing - with Small Flange

Stainless Steel Vacuum Tubing - with Small Flange

Product specification Ring corrugated tubing made of stainless steel 1.4404, welded On both... more

Close menu

Product specification

Ring corrugated tubing made of stainless steel 1.4404, welded

On both sides stainless steel small flange according to DIN 28403.

Technical specification

Material: stainless steel 1.4404

Temperature range: -10 to +550 °C

Leak testing: with helium leak testing, inleakage rate <10^-9 mbar I/s (vacuum method), with test certificate 3.1 B according to EN 10204 (DIN 50049), ultrasonic cleaned, ends closed with plastic caps

General Information Corrugated hoses are thin-walled, cylindrical components with a... more

Close menu

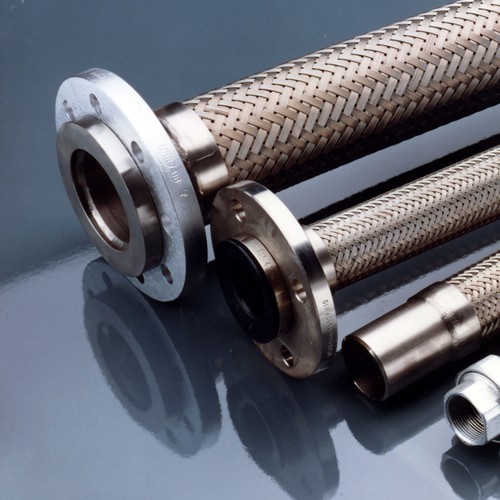

General Information

Corrugated hoses are thin-walled, cylindrical components with a corrugated structure in their surface area. Annularly corrugated hoses are technically superior to helically corrugated hoses. Their profile direction perpendicular to the hose axis enables an undisturbed interface of the connection fittings and thereby increases the process stability during assembly and in service. In addition, annularly corrugated hoses do not produce torsion loads with increased pressure or pressure shocks. Thus, today annularly corrugated hoses are generally preferred.

Through their corrugated structure, metal hoses are flexible and pressure resistant. They are leakproof, temperature and corrosion resistant as well as torsionally rigid and are used in the following applications:

for transport of liquids and gases under pressure, as vacuum pipe, as economic, flexible connection for absorbing movements, heat expansion and/or vibrations plus, as filling hose.

When configured correctly, the metal hoses are robust and nearly maintenance-free components with a high degree of operational safety and a long service life.

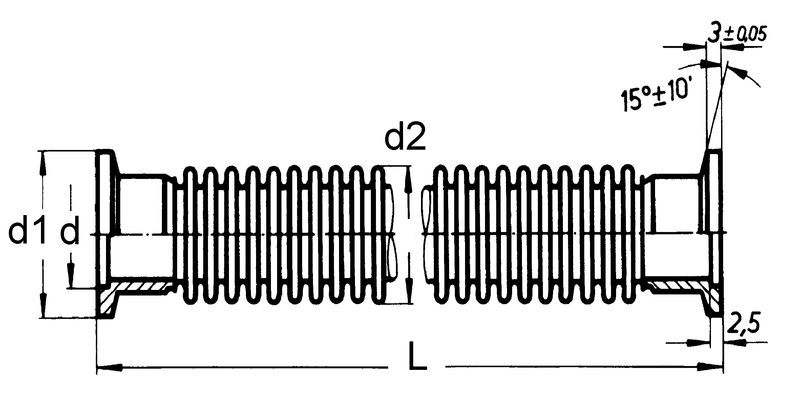

Item	NW mm	Inside Ø mm	max. Betr.-Druck¹ bar	d mm	d1 mm	L mm	Einheit Stück	Price Euro*
14014	16	17,2	6	22,7	30	250	1	288.00
14015	16	17,2	6	22,7	30	500	1	309.00
14016	16	17,2	6	22,7	30	750	1	333.00
14017	16	17,2	6	22,7	30	1.000	1	354.00
14018	25	26,2	4	32,2	40	250	1	317.00
14019	25	26,2	4	32,2	40	500	1	333.00
14020	25	26,2	4	32,2	40	750	1	359.00
14021	25	26,2	4	32,2	40	1.000	1	378.00
14022	40	41,2	2,5	49,7	55	250	1	380.00
14023	40	41,2	2,5	49,7	55	500	1	404.00
14024	40	41,2	2,5	49,7	55	750	1	449.00
14025	40	41,2	2,5	49,7	55	1.000	1	480.00
