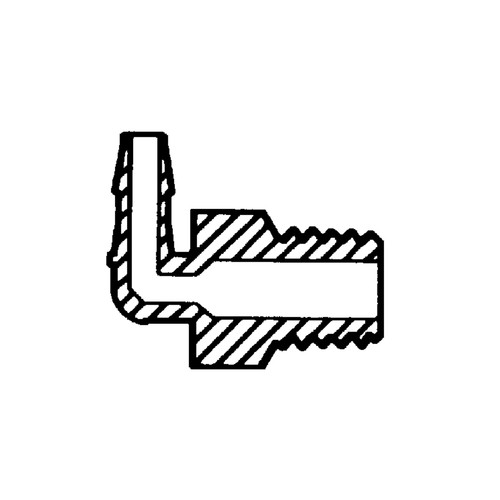

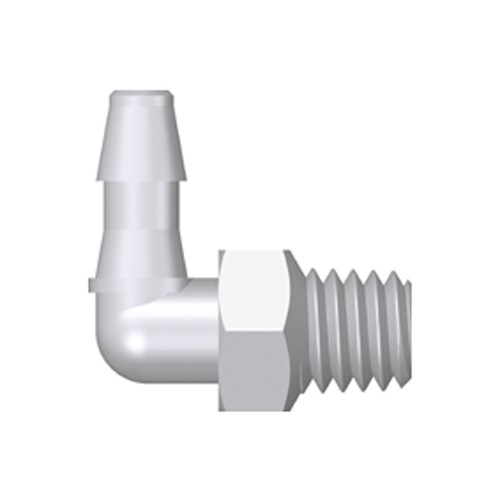

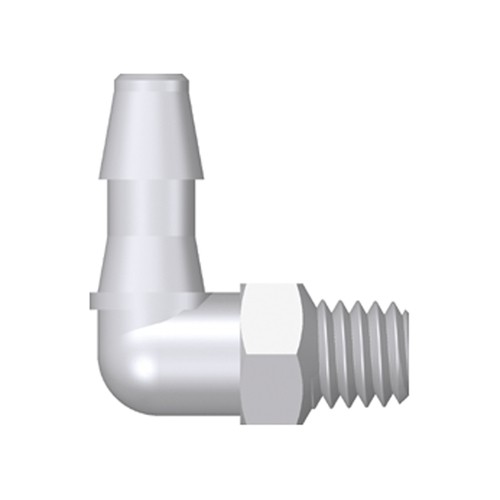

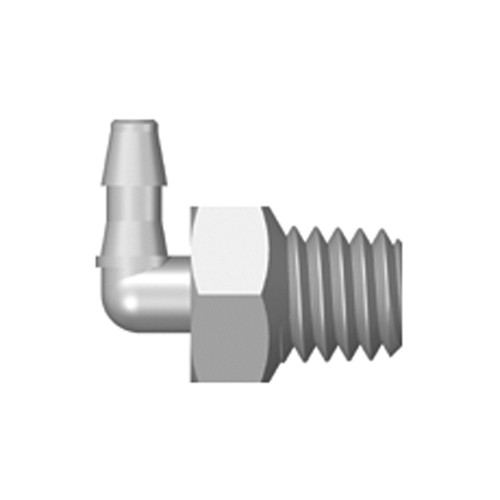

Mini Elbow Screw-in Connector with male thread UNF 10-32 - long

Mini Elbow Screw-in Connector with male thread UNF 10-32 - long
Product specification Tubing connection on one side, long UNF 10-32 external thread on the... more

Product specification

Tubing connection on one side, long UNF 10-32 external thread on the other side, for flexible tubing

General Information PA 6.6 (polyamide 6.6, nylon) Colour: white Temperature... more

General Information

PA 6.6 (polyamide 6.6, nylon)

Colour: white

Temperature range: -40 to +115 °C

Max. operating pressure: 3 bar at +20 °C

Yellowing and reduction of strength depending on temperature and interaction time

Regulatory compliance to RoHS, BPA, DEHP

Good sterilization with autoclave, ethylene oxide and gamma radiation (may discolour to brownish hue)

PP (polypropylene)

Colour: natural

Temperature range: -5 to +120 °C

Max. operating pressure: 3 bar at +20 °C

Regulatory compliance to USP Class VI, FDA 21 CFR 177.1520, RoHS, BPA, DEHP, ADI-free

Good sterilization with ethylene oxide and gamma radiation (bis 6 Mrads; may discolor the material with repeated sterilization), autoclave limited to short term +121 °C for 20 min.

PVDF (Polyvinylidene fluoride)

Colour: natural

Temperature range: -40 to +140 °C

Max. operating pressure: 3 bar at +20 °C

Regulatory compliance to USP Class VI, FDA 21 CFR 177.2510, RoHS, BPA-free, DEHP-free, ADI-free

PVDF is non-toxic and can be used in the food industry without hesitation. According to FDA (USA), the material is physiologically safe. It is as unsuitable as glass for propagation and growing of microorganisms.

Excellent sterilization with autoclave, ethylene oxide and gamma radiation (will discolour to brownish hue)

Item Image Tubing inside Ø
mm
Außengewinde Werkstoff Farbe Einheit
Stück
Price
Euro*
Buy
29073
Mini Elbow Screw-in Connector with male thread UNF 10-32 - long Mini Elbow Screw-in Connector with male thread UNF 10-32 - long
Mini Elbow Screw-in Connector with male thread UNF 10-32 - long Mini Elbow Screw-in Connector with male thread UNF 10-32 - long
1,6 UNF 10-32 PA 6.6 weiß 15 58.00
29074
Mini Elbow Screw-in Connector with male thread UNF 10-32 - long Mini Elbow Screw-in Connector with male thread UNF 10-32 - long
Mini Elbow Screw-in Connector with male thread UNF 10-32 - long Mini Elbow Screw-in Connector with male thread UNF 10-32 - long
1,6 UNF 10-32 PA 6.6 schwarz 15 58.00
29075
Mini Elbow Screw-in Connector with male thread UNF 10-32 - long Mini Elbow Screw-in Connector with male thread UNF 10-32 - long
Mini Elbow Screw-in Connector with male thread UNF 10-32 - long Mini Elbow Screw-in Connector with male thread UNF 10-32 - long
1,6 UNF 10-32 PP natur 10 53.00
29076
Mini Elbow Screw-in Connector with male thread UNF 10-32 - long Mini Elbow Screw-in Connector with male thread UNF 10-32 - long
Mini Elbow Screw-in Connector with male thread UNF 10-32 - long Mini Elbow Screw-in Connector with male thread UNF 10-32 - long
1,6 UNF 10-32 PVDF natur 5 59.00
29077
Mini Elbow Screw-in Connector with male thread UNF 10-32 - long Mini Elbow Screw-in Connector with male thread UNF 10-32 - long
Mini Elbow Screw-in Connector with male thread UNF 10-32 - long Mini Elbow Screw-in Connector with male thread UNF 10-32 - long
2,4 UNF 10-32 PA 6.6 weiß 15 58.00
29078
Mini Elbow Screw-in Connector with male thread UNF 10-32 - long Mini Elbow Screw-in Connector with male thread UNF 10-32 - long
Mini Elbow Screw-in Connector with male thread UNF 10-32 - long Mini Elbow Screw-in Connector with male thread UNF 10-32 - long
2,4 UNF 10-32 PA 6.6 schwarz 15 58.00
29079
Mini Elbow Screw-in Connector with male thread UNF 10-32 - long Mini Elbow Screw-in Connector with male thread UNF 10-32 - long
Mini Elbow Screw-in Connector with male thread UNF 10-32 - long Mini Elbow Screw-in Connector with male thread UNF 10-32 - long
2,4 UNF 10-32 PP natur 10 53.00
29080
Mini Elbow Screw-in Connector with male thread UNF 10-32 - long Mini Elbow Screw-in Connector with male thread UNF 10-32 - long
Mini Elbow Screw-in Connector with male thread UNF 10-32 - long Mini Elbow Screw-in Connector with male thread UNF 10-32 - long
2,4 UNF 10-32 PVDF natur 5 56.00
29081
Mini Elbow Screw-in Connector with male thread UNF 10-32 - long Mini Elbow Screw-in Connector with male thread UNF 10-32 - long
Mini Elbow Screw-in Connector with male thread UNF 10-32 - long Mini Elbow Screw-in Connector with male thread UNF 10-32 - long
3,2 UNF 10-32 PA 6.6 weiß 15 65.00
29082
Mini Elbow Screw-in Connector with male thread UNF 10-32 - long Mini Elbow Screw-in Connector with male thread UNF 10-32 - long
Mini Elbow Screw-in Connector with male thread UNF 10-32 - long Mini Elbow Screw-in Connector with male thread UNF 10-32 - long
3,2 UNF 10-32 PA 6.6 schwarz 15 65.00
29083
Mini Elbow Screw-in Connector with male thread UNF 10-32 - long Mini Elbow Screw-in Connector with male thread UNF 10-32 - long
Mini Elbow Screw-in Connector with male thread UNF 10-32 - long Mini Elbow Screw-in Connector with male thread UNF 10-32 - long
3,2 UNF 10-32 PP natur 10 58.00
