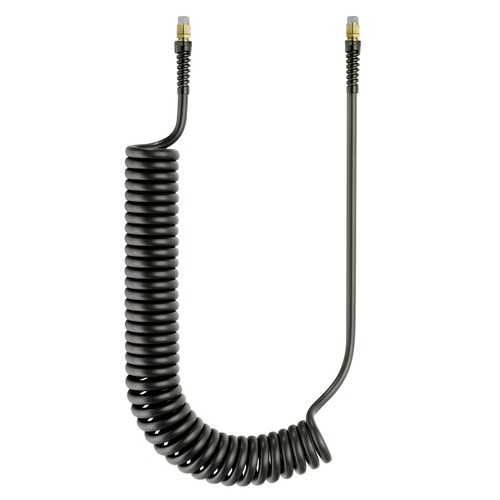

PUR Spiral Tubing with Rotatable Male R-Threads

Product specification
Spiral tubing with strong elastic force
Extremely resistant to flying firebrands and welding spatter
Very good kink resistance
Highest elasticity and flexibility
Fluorine-, halogen- and silicone-free, as well as free of lacquer wetting substances
UV-resistant, extremely flame retardant
Calibrated according to CETOP standard
Suitable for trailing cables, long service life
Good chemical resistance to gasoline, cyclohexane, diesel oil, isooctane, kerosine.
On both sides with reinforced ends each and completely mounted rotatable R 1/4" or R 3/8" threaded couplings.
Technical specification
Material: PUR (polyurethane)
Colour: black
Temperature range: -20 to +100 °C
Max. operating pressure: 15 bar at +20 °C
Flammability rating: UL 94 V-0
Connection nozzles: on one side 100 mm, on the other side 500 mm
Item | Image |
Inside Ø mm
|
Außen-Ø mm
|
Außengewinde |
Spiral-Ø außen mm
|
Blocklänge mm
|
Arbeitslänge m
|
Einheit Stück
|
Price Euro* |
Buy |
---|---|---|---|---|---|---|---|---|---|---|
330959 |
|
6 | 10 | R 1/4" | 52 | 320 | 3 | 1 | 232.00 | |
330960 |
|
6 | 10 | R 1/4" | 52 | 550 | 6 | 1 | 296.00 | |
330961 |
|
6 | 10 | R 1/4" | 52 | 660 | 8 | 1 | 332.00 | |
330962 |
|
8 | 13 | R 3/8" | 68 | 280 | 3 | 1 | 315.00 | |
330963 |
|
8 | 13 | R 3/8" | 68 | 560 | 6 | 1 | 411.00 | |
330964 |
|
8 | 13 | R 3/8" | 68 | 650 | 8 | 1 | 476.00 |
