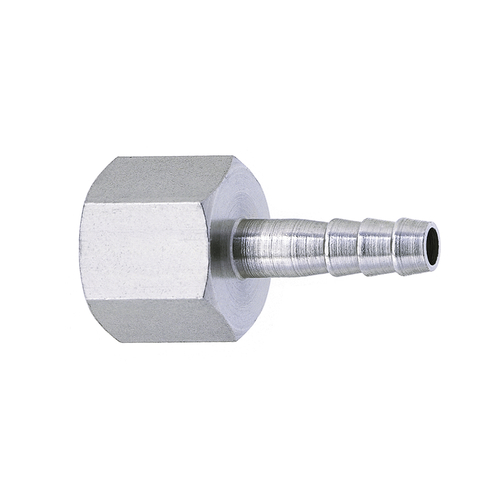

Straight Barb Connector with Female Thread made of Brass, Nickel-Plated

Preview: Straight Barb Connector with Female Thread made of Brass, Nickel-Plated Preview: Straight Barb Connector with Female Thread made of Brass, Nickel-Plated
Straight Barb Connector with Female Thread made of Brass, Nickel-Plated
Straight Barb Connector with Female Thread made of Brass, Nickel-Plated

Description General Information
Description
Product specification Straight, G-internal thread on one side, tubing nozzle on the other side more
Close menu

Product specification

Straight, G-internal thread on one side, tubing nozzle on the other side

General Information
General Information Use for fluid technology, compressed air technology, automation,... more
Close menu

General Information

Use for fluid technology, compressed air technology, automation, measurement and control technology, apparatus engineering and machine engineering.

Material: brass MS 58 (2.0401)

Material composition: CuZn 39 Pb3 - material 2.0401

Design: nickel-plated

Max. operating pressure: 8 bar at +20°C

Thread types:

a. Withworth thread according to ISO 228, referred to as G-thread

b. Withworth thread according to DIN 2999, referred to as R-thread

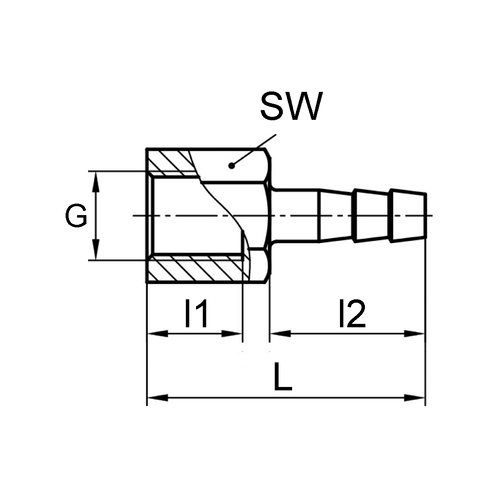

Item Image Tubing inside Ø
mm
 Innengewinde l1
mm
 l2
mm
 L
mm
 SW
mm
 Einheit
Stück
 Price
Euro* 		Buy
331187
6 G 1/8" 9 20 31 13 10 33.00
331188
6 G 1/4" 11 20 34 17 10 39.00
331189
9 G 1/4" 11 20 34 17 10 43.00
331190
9 G 3/8" 12 20 35 22 10 52.00
331191
13 G 1/2" 14 24 42 24 10 125.00
