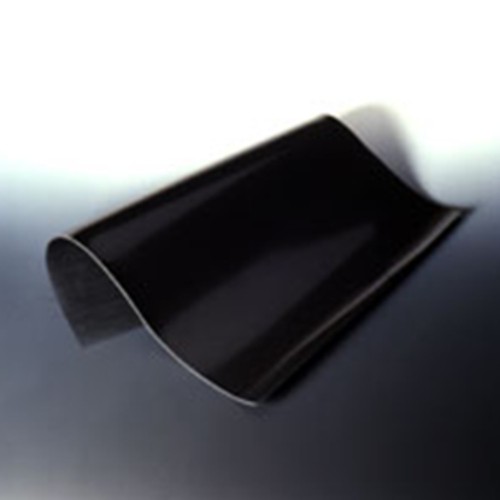

EPDM Sheet with PTFE Coat

EPDM Sheet with PTFE Coat
Description General Information
Description
Technical specification Material: EPDM (ethylene-propylene-diene rubber and terpolymer... more
Close menu

Technical specification

Material: EPDM (ethylene-propylene-diene rubber and terpolymer rubber resp.)

Colour: black

Hardness Shore A: 68° ±3° (DIN ISO 7619-1)

Temperature range: -40 to +90 °C

Density: 1,11 g/cm3 (DIN EN ISO 1183-1)

Elongation: 350 % (DIN 53504)

Tensile strength: 15 MPa (DIN 53504)

Compression Set:

at 72 h / +23 °C: 9 % (DIN ISO 815)

at 24 h / +100 °C: 9 % (DIN ISO 815)

at 24 h / +150 °C: 25 % (DIN ISO 815)

Specific features: sulfur vulcanized

Tolerance: DIN ISO 3302-1 E2

Technical specification

Material: PTFE (polytetrafluoroethylene)

Colour: white

Hardness Shore D: 54° (DIN EN ISO 868)

Temperature range: -200 to +260 °C

Density: 2,15 g/cm3 (DIN EN ISO 1183-1)

Elongation: >280 % (DIN EN ISO 527)

Tensile strength: >25 N/mm2 (DIN EN ISO 527)

General Information
more
Close menu
No additional information available.
Item Image Thickness of carrier layer
mm
 Stärke der Auflage
mm
 Abmessung
mm
 Einheit
Stück
 Price
Euro* 		Buy
81257
2 0,2 300 x 300 1 125.00
81258
3 0,2 300 x 300 1 155.00
81259
4 0,2 300 x 300 1 162.00
81261
2 0,2 150 x 150 1 78.00
81262
3 0,2 150 x 150 1 97.00
81263
4 0,2 150 x 150 1 102.00
