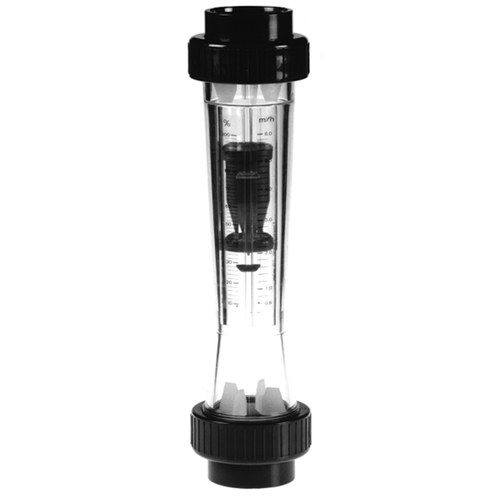

Flowmeter made of PA 6 - Scale: 350 mm

Product specification Practical graduated measuring ranges according to DIN Increased... more

Close menu

Product specification

Practical graduated measuring ranges according to DIN

Increased accuracy due to optimized graduated tube geometry

Good temperature resistance

High impact toughness

High wear resistance

High creep strength

Hermetically sealed, connected with O-rings

Require little maintenance

Encapsulated magnet impervious to fluids with only one polarization for monostable and bistable function.

Technical specification

Material:

Measuring tube: PA 6 (polyamide 6T, TROGAMID^®), transparent

Float: PVDF (polyvinylidene fluoride); stainless steel 1.4301 (V2A); PVDF, with encapsulated magnet impervious to fluids

O-rings: EPDM (ethylene-propylene-diene-monomer); FPM (fluorinated rubber) on request

Union socket ends: PVC-U (rigid polyvinyl chloride), grey (RAL 7011)

Measuring range: 15 - 10,000 l/h

Indicator accuracy: according to VDI / VDE 3513, Part 2

Pressure stage: PN 10 at +20 °C

Media handled: technical clean, neutral liquids and gases

Media temperature: +75 °C

Pipe connection: PVC-U socket ends for solvent welding according to DIN 8063; threaded connection

Installation: vertical; flow direction from the bottom to the top

General Information Flowmeter of high measurement accuracy and operational reliability for... more

Close menu

General Information

Flowmeter of high measurement accuracy and operational reliability for use in laboratory, pilot and production plants. It meets the high requirements of process engineering and is usable in process automation due to limit signal transmitters and measured value remote transmission.

Transparent measuring body made of PVC-U or PA, available in three installation lengths. The medium flows vertically from the bottom to the top. The flow forces cause the float to lift without friction and its top graduation edge indicates directly the flow volume on the graduated tube scale. The optimized stabilization of the float makes reading easier. The measuring range scale on the conical graduated tube indicates as standard l/h for water at +20 °C. The graduated tube is equipped with external dovetailed strips with two movable set-point indicators for the optimum marking of minimum and maximum flow volume or for acommodating limit signal transmitters. The float of PVDF as standard as well as the float trap are located in the measuring tube.

For automatic measurement, the float is equipped with a magnet insert which is impervious to fluids. The connections (socket ends for solvent) with two O-rings ensure a reliable sealing and fast, unproblematic radial installation.

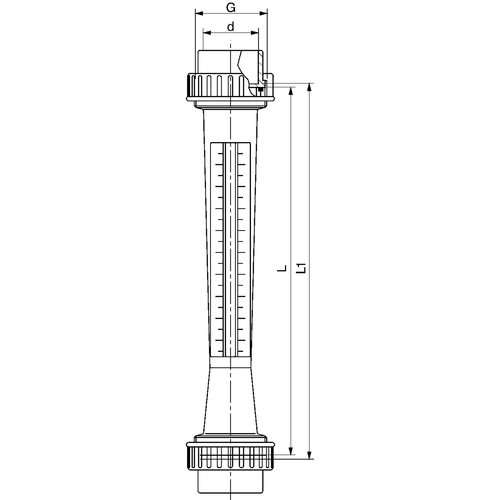

Item	d mm	NW mm	DIN 8063 screw connection	Messbereich Flüssigkeiten l/h	Werkstoff Schwebekörper	Einheit Stück	Price Euro*
350999	32	25	G 1 1/2"	60 - 600	PVDF	1	301.00
351000	32	25	G 1 1/2"	100 - 1000	PVDF	1	301.00
351001	40	32	G 2"	150 - 1500	PVDF	1	383.00
351002	40	32	G 2"	250 - 2500	PVDF	1	383.00
351003	50	40	G 2 1/4"	200 - 2000	PVDF	1	464.00
351004	50	40	G 2 1/4"	300 - 3000	PVDF	1	464.00
351005	63	50	G 2 3/4"	400 - 4000	PVDF	1	564.00
351006	63	50	G 2 3/4"	600 - 6000	PVDF	1	564.00
351007	63	50	G 2 3/4"	1000 - 10000	PVDF	1	564.00
351021	32	25	G 1 1/2"	60 - 600	PVDF-M	1	376.00
351022	32	25	G 1 1/2"	100 - 1000	PVDF-M	1	376.00
351023	40	32	G 2"	150 - 1500	PVDF-M	1	478.00
351024	40	32	G 2"	250 - 2500	PVDF-M	1	478.00
351025	50	40	G 2 1/4"	200 - 2000	PVDF-M	1	522.00
351026	50	40	G 2 1/4"	300 - 3000	PVDF-M	1	522.00
351027	63	50	G 2 3/4"	400 - 4000	PVDF-M	1	648.00
351028	63	50	G 2 3/4"	600 - 6000	PVDF-M	1	648.00
351029	63	50	G 2 3/4"	1000 - 10000	PVDF-M	1	648.00
