Product specification

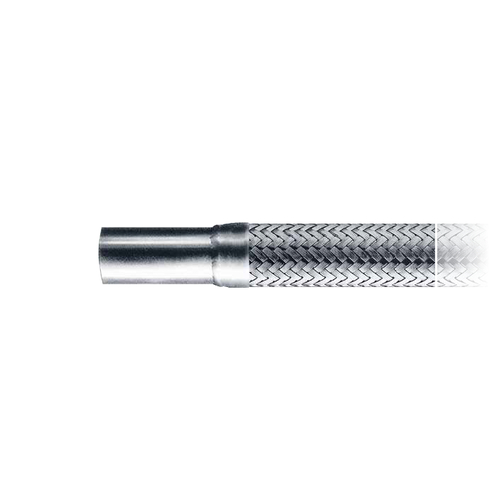

Ring corrugated tubing made of stainless steel 1.4541 with single stainless steel wire braiding 1.4301.

On both ends welded pipe end pieces of stainless steel, for cutting ring fitting joints DIN 3861.

Technical specification

Material: stainless steel 1.4541 (NW 4, 8 and NW 10 made of stainless steel 1.4404)

Temperature range: -10 to +550 °C

General Information Corrugated hoses are thin-walled, cylindrical components with a... more

Close menu

General Information

Corrugated hoses are thin-walled, cylindrical components with a corrugated structure in their surface area. Annularly corrugated hoses are technically superior to helically corrugated hoses. Their profile direction perpendicular to the hose axis enables an undisturbed interface of the connection fittings and thereby increases the process stability during assembly and in service. In addition, annularly corrugated hoses do not produce torsion loads with increased pressure or pressure shocks. Thus, today annularly corrugated hoses are generally preferred.

Through their corrugated structure, metal hoses are flexible and pressure resistant. They are leakproof, temperature and corrosion resistant as well as torsionally rigid and are used in the following applications:

for transport of liquids and gases under pressure, as vacuum pipe, as economic, flexible connection for absorbing movements, heat expansion and/or vibrations plus, as filling hose.

When configured correctly, the metal hoses are robust and nearly maintenance-free components with a high degree of operational safety and a long service life.

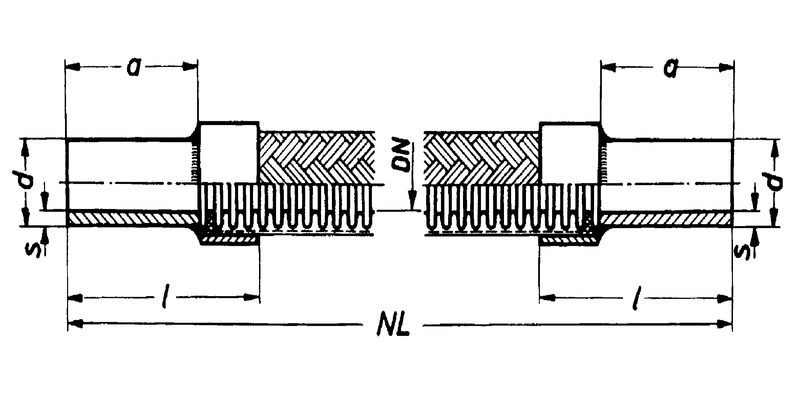

Item	NW mm	Max. op. pressure¹ bar	d mm	s mm	a mm	l mm	L mm	Einheit Stück	Price Euro*
340687	4	16	6	1	30	40	300	1	189.00
340688	4	16	6	1	30	40	500	1	210.00
340689	4	16	6	1	30	40	1.000	1	267.00
14000	8	16	10	1,5	30	40	300	1	175.00
14001	8	16	10	1,5	30	40	500	1	200.00
14002	8	16	10	1,5	30	40	1.000	1	259.00
14003	10	16	12	1,5	30	22	500	1	265.00
14004	10	16	12	1,5	30	22	1.000	1	417.00
14005	10	16	12	1,5	30	22	1.500	1	500.00
14006	12	16	15	2	32	28	300	1	204.00
14007	12	16	15	2	32	28	500	1	234.00
14008	12	16	15	2	32	28	1.000	1	300.00
14009	16	16	18	1,5	32	32	1.000	1	335.00
14010	20	16	22	2	36	42	500	1	251.00
14011	20	16	22	2	36	42	1.000	1	330.00
14012	25	16	28	2	40	70	500	1	273.00
14013	25	16	28	2	40	70	1.000	1	357.00
