PVDF Quick-Disconnect Nipple, NW 5.0 mm

Product specification Male coupling part. With port or shut-off and hose nozzle; pipe screwed... more

Close menu

Product specification

Male coupling part. With port or shut-off and hose nozzle; pipe screwed fitting or thread for piping connection. Can be combined with all female coupling parts of nominal width 5.0 mm.

General Information Quick-Disconnect Coupling THOMAFLUID ® -quick-disconnect coupling... more

Close menu

General Information Quick-Disconnect Coupling

THOMAFLUID^®-quick-disconnect coupling systems are excellently suited for connecting and disconnecting of tubes, apparatuses etc. The quick-disconnect couplings are easy to operate, connecting and disconnecting can be done by one hand. The coupling is self-locking when the nipple is plugged-in. For disconnection a short thumb pressure on the lock is sufficient to pull out the nipple easily. All nipples are fitted with an easily interchangeable, reliably sealing O-ring.

A complete operable THOMAFLUID^®-quick-disconnect coupling system consists of a coupling part and a nipple part, both parts may be fitted with valves. A complete quick-disconnect coupling system locking at one side consists of a coupling part with shut-off and a nipple part with port, or a coupling part with port and a nipple part with shut-off. To get a coupling locking on both sides, a coupling part as well as a nipple part, both with shut-off, have to be obtained.

General Information PVDF

PVDF is a chemically inert, biocompatible fluorocarbone material with excellent temperature resistance. It is resistant to alcohols, aldehydes, petrol, benzene and other aromatic hydrocarbons, chlorine gas, esters, glycols and motor oils, salt solutions, alkalis and acids.

General Information 5 mm nominal width

Temperature and pressure loadable plug-in coupling parts for lower flow rates, biocompatible, made of impact-resistant polymer material.

Material:

Valve body: PVDF, white (polyvinylidene fluoride)

Gaskets: FPM (fluorinated rubber)

Valve spring: stainless steel 1.4571

Colour: white

Nominal width: 5 mm

Plug diameter: approx. 8.5 mm

Temperature range: -20 to +120 °C

Max. operating pressure: 8 bar at +20 °C

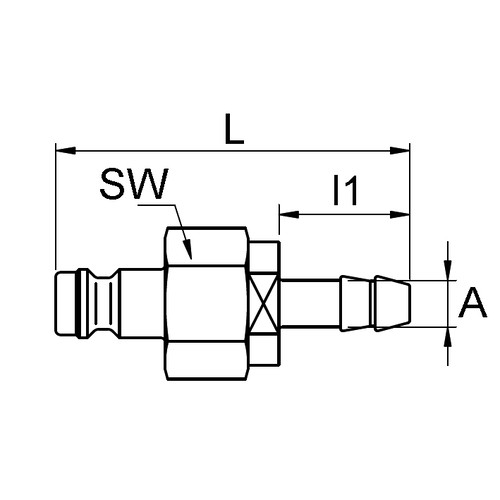

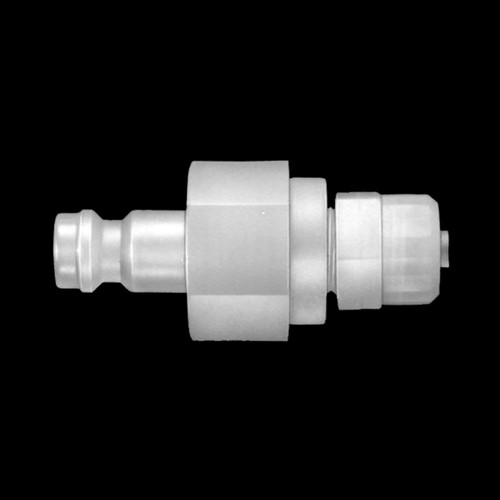

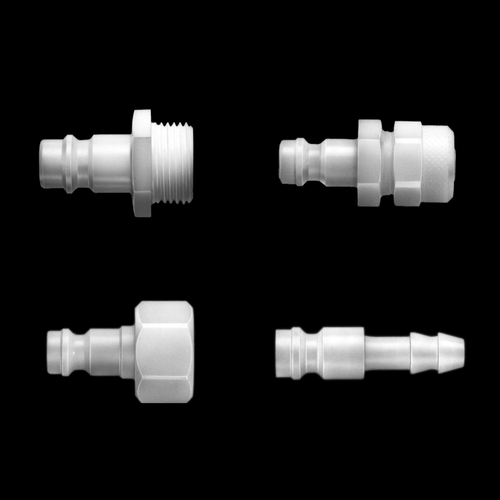

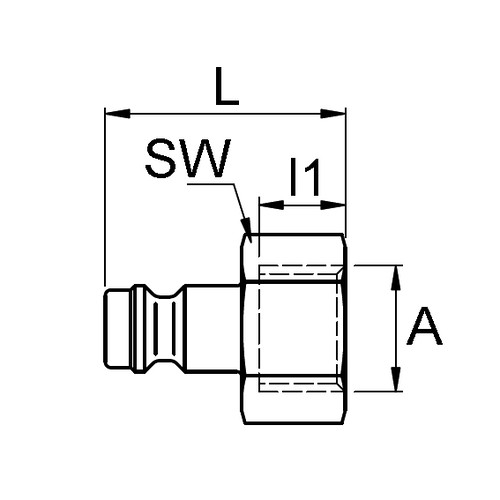

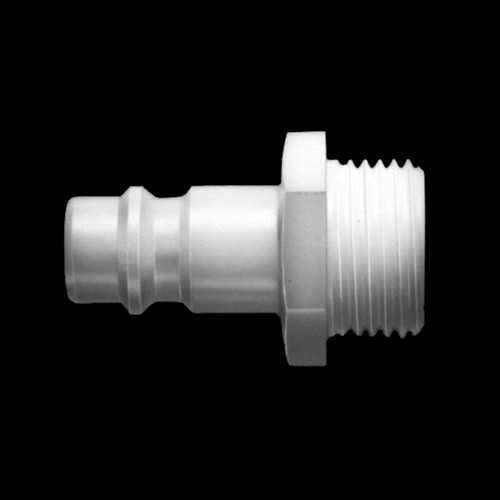

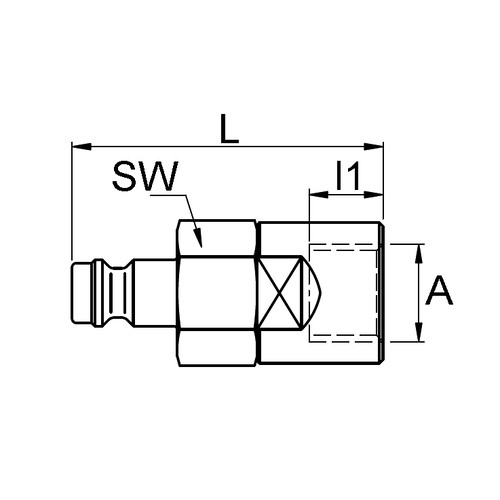

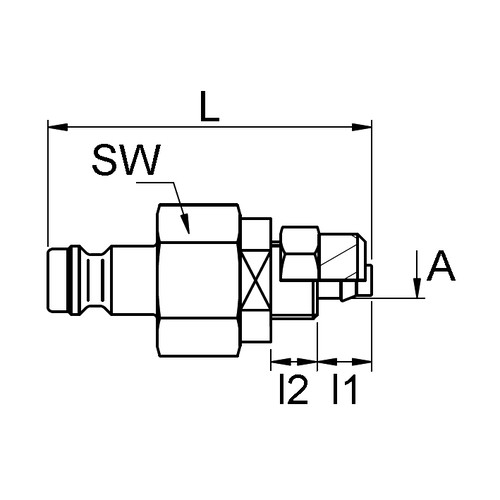

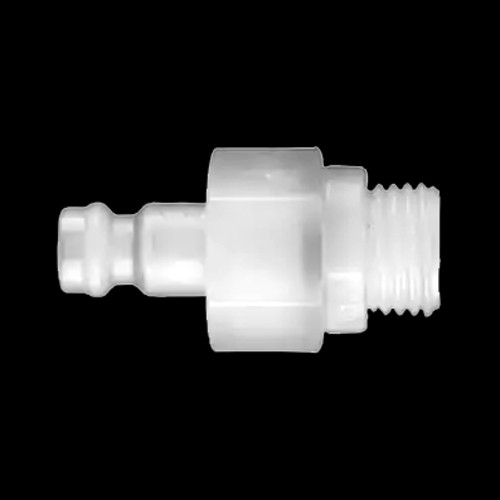

Item	Image	Connection	Ventil	D mm	Länge mm	l1 mm	l2 mm	SW mm	Einheit Stück	Price Euro*

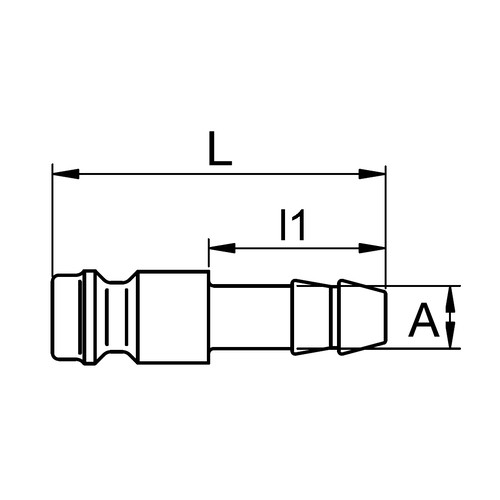

15883	PVDF Quick-Disconnect Nipple, NW 5.0 mm PVDF Quick-Disconnect Nipple, NW 5.0 mm	Tülle 4 mm	ohne		32	17			3	52.00

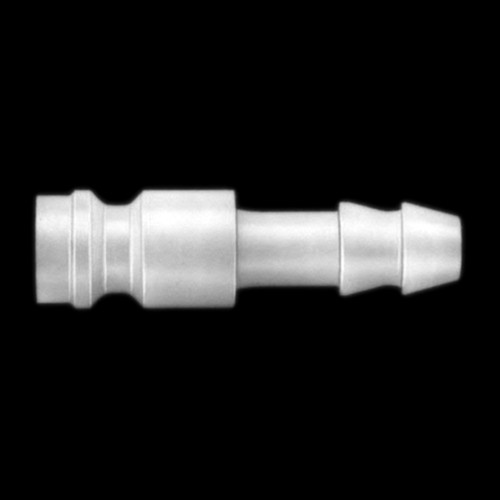

15884	PVDF Quick-Disconnect Nipple, NW 5.0 mm PVDF Quick-Disconnect Nipple, NW 5.0 mm	Tülle 6 mm	ohne		32	17			3	52.00

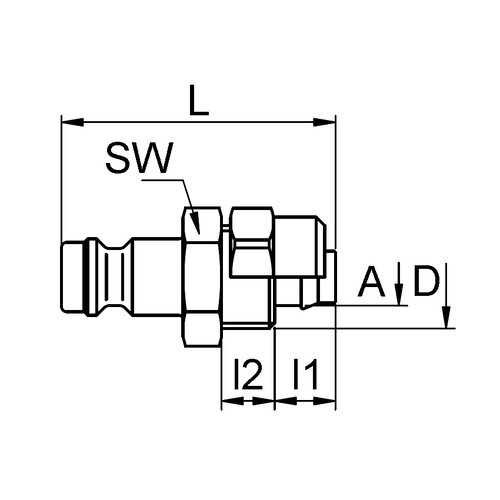

15887	PVDF Quick-Disconnect Nipple, NW 5.0 mm PVDF Quick-Disconnect Nipple, NW 5.0 mm	Rohr 6 mm	ohne	10	32	7	6	14	2	50.00

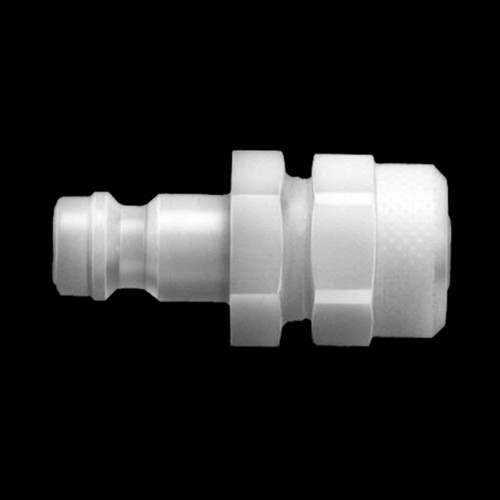

15888	PVDF Quick-Disconnect Nipple, NW 5.0 mm PVDF Quick-Disconnect Nipple, NW 5.0 mm	Rohr 8 mm	ohne	12	32	7	6	14	2	50.00

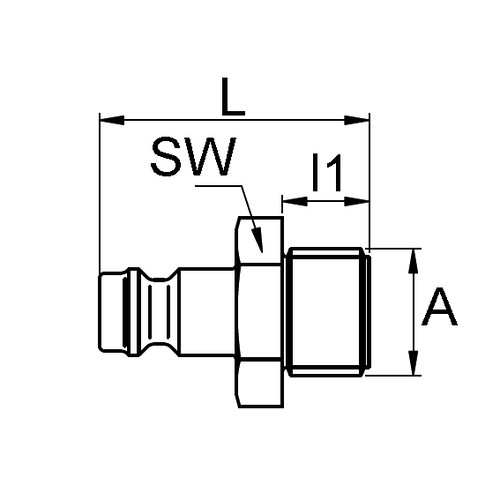

15891	PVDF Quick-Disconnect Nipple, NW 5.0 mm PVDF Quick-Disconnect Nipple, NW 5.0 mm	A-Gewinde G 1/8"	ohne		25	7		17	2	46.00
15892	PVDF Quick-Disconnect Nipple, NW 5.0 mm PVDF Quick-Disconnect Nipple, NW 5.0 mm	A-Gewinde G 1/4"	ohne		28	9		17	2	46.00
15893	PVDF Quick-Disconnect Nipple, NW 5.0 mm PVDF Quick-Disconnect Nipple, NW 5.0 mm	I-Gewinde G 1/8"	ohne		24	8		14	2	46.00

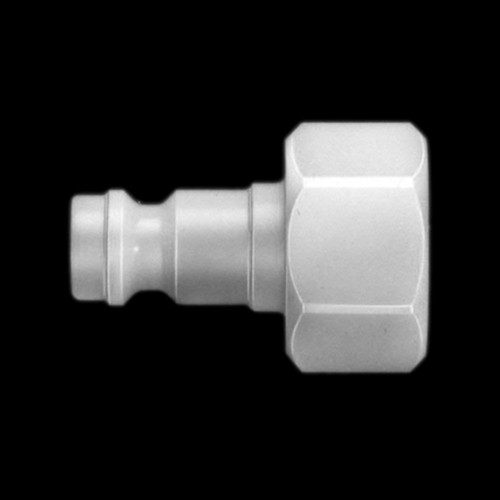

15894	PVDF Quick-Disconnect Nipple, NW 5.0 mm PVDF Quick-Disconnect Nipple, NW 5.0 mm	I-Gewinde G 1/4"	ohne		25	9		17	2	46.00

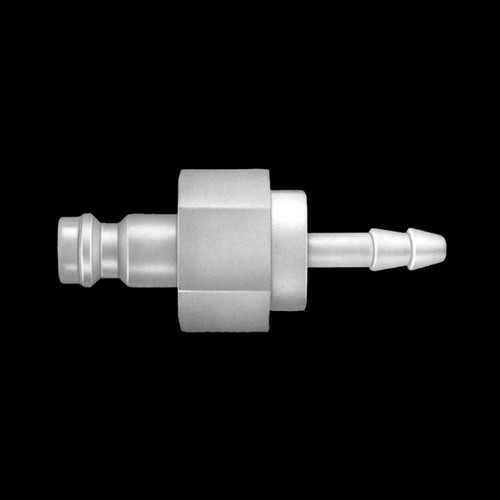

15907	PVDF Quick-Disconnect Nipple, NW 5.0 mm PVDF Quick-Disconnect Nipple, NW 5.0 mm	Tülle 4 mm	mit		46	17		17	1	62.00
15908	PVDF Quick-Disconnect Nipple, NW 5.0 mm PVDF Quick-Disconnect Nipple, NW 5.0 mm	Tülle 6 mm	mit		46	17		17	1	62.00
15911	PVDF Quick-Disconnect Nipple, NW 5.0 mm PVDF Quick-Disconnect Nipple, NW 5.0 mm	Rohr 6 mm	mit		42	7	6	17	1	70.00
15912	PVDF Quick-Disconnect Nipple, NW 5.0 mm PVDF Quick-Disconnect Nipple, NW 5.0 mm	Rohr 8 mm	mit		42	7	6	17	1	70.00

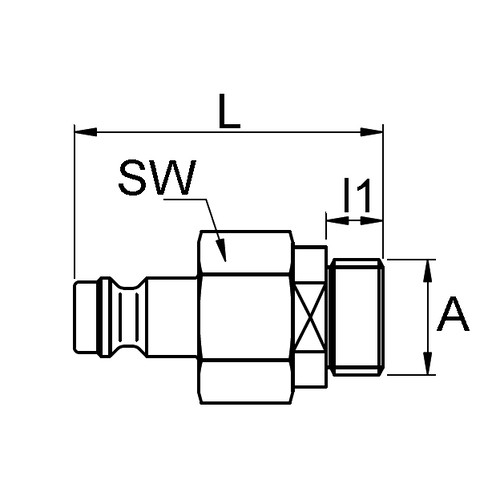

15915	PVDF Quick-Disconnect Nipple, NW 5.0 mm PVDF Quick-Disconnect Nipple, NW 5.0 mm	A-Gewinde G 1/8"	mit		36	7		17	1	70.00
15916	PVDF Quick-Disconnect Nipple, NW 5.0 mm PVDF Quick-Disconnect Nipple, NW 5.0 mm	A-Gewinde G 1/4"	mit		38	7		17	1	70.00
15917	PVDF Quick-Disconnect Nipple, NW 5.0 mm PVDF Quick-Disconnect Nipple, NW 5.0 mm	I-Gewinde G 1/8"	mit		39	8		17	1	70.00

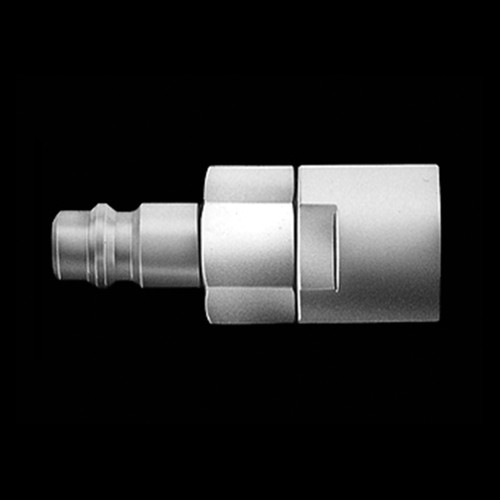

15918	PVDF Quick-Disconnect Nipple, NW 5.0 mm PVDF Quick-Disconnect Nipple, NW 5.0 mm	I-Gewinde G 1/4"	mit		42	17		17	1	70.00
