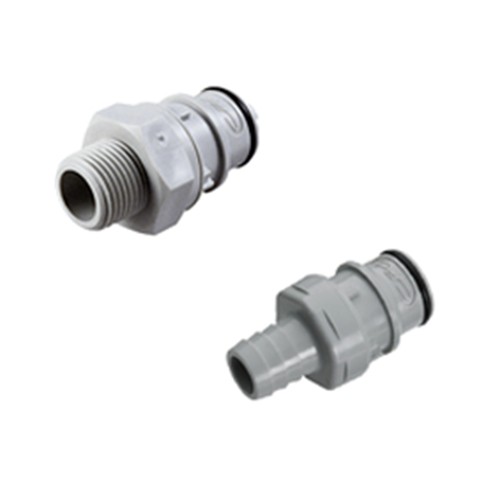

PP Quick-Disconnect Nipple, NW 9.5 mm

Product specification Male coupling part. With port or shut-off and hose nozzle or external... more

Close menu

Product specification

Male coupling part. With port or shut-off and hose nozzle or external thread for piping connection. Can be combined with all female coupling parts of nominal width 9.5 mm.

General Information Quick-Disconnect Coupling THOMAFLUID ® -quick-disconnect coupling... more

Close menu

General Information Quick-Disconnect Coupling

THOMAFLUID^®-quick-disconnect coupling systems are excellently suited for connecting and disconnecting of tubes, apparatuses etc. The quick-disconnect couplings are easy to operate, connecting and disconnecting can be done by one hand. The coupling is self-locking when the nipple is plugged-in. For disconnection a short thumb pressure on the lock is sufficient to pull out the nipple easily. All nipples are fitted with an easily interchangeable, reliably sealing O-ring.

A complete operable THOMAFLUID^®-quick-disconnect coupling system consists of a coupling part and a nipple part, both parts may be fitted with valves. A complete quick-disconnect coupling system locking at one side consists of a coupling part with shut-off and a nipple part with port, or a coupling part with port and a nipple part with shut-off. To get a coupling locking on both sides, a coupling part as well as a nipple part, both with shut-off, have to be obtained.

General Information PP

Use for microbiological testing equipment, electroplating liquids, sterilisation equipment, water pollution analysis.

PP allows higher chemical resistances for more demanding applications compared to POM. The coupling parts are also sterilizable with gamma rays.

Resistant to oils, petrol, acids etc.

General Information 9.5 mm nominal width

High-flow quick release couplings with a nominal size of 9.5 mm (3/8 ").

The particularly powerful valve construction of this series ensures high flow and an exceptionally low dead volume.

Chemicals for photo development, battery filling systems, air mattress systems, spray systems, antifreeze recycling, heating and cooling systems.

Material:

Valve body: PP (polypropylene)

Gaskets: EPDM (ethylene-propylene-diene rubber)

Valve spring: stainless steel 316

Colour: anthracite gray

Nominal width: 9.5 mm

Plug diameter: approx. 18.4 mm

Temperature range: 0 to +70 °C

Max. operating pressure: 4 bar at +20 °C; 2 bar at +60 °C

Item	Image	Connection	Ventil	Länge mm	Einheit Stück	Price Euro*
43486	PP Quick-Disconnect Nipple, NW 9.5 mm PP Quick-Disconnect Nipple, NW 9.5 mm	A-Gewinde NPT 3/8"	ohne	45	1	17.00

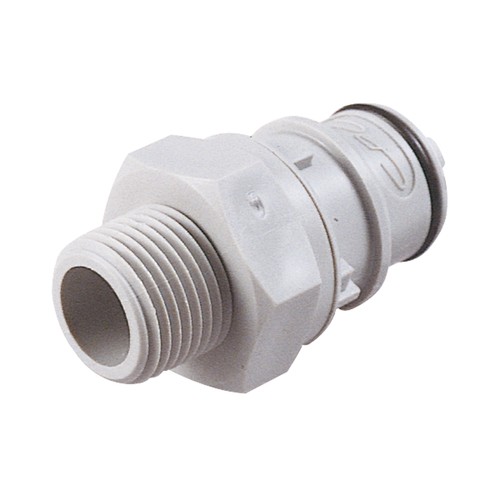

43487	PP Quick-Disconnect Nipple, NW 9.5 mm PP Quick-Disconnect Nipple, NW 9.5 mm	A-Gewinde NPT 1/2"	ohne	50	1	17.00
16145	PP Quick-Disconnect Nipple, NW 9.5 mm PP Quick-Disconnect Nipple, NW 9.5 mm	A-Gewinde NPT 3/4"	ohne	54	1	20.00
43488	PP Quick-Disconnect Nipple, NW 9.5 mm PP Quick-Disconnect Nipple, NW 9.5 mm	A-Gewinde NPT 3/8"	mit	48	1	22.00

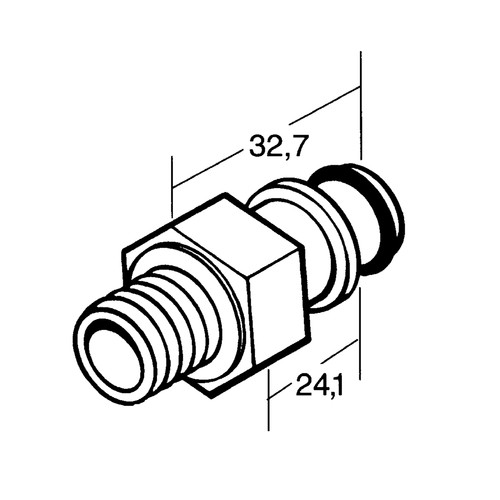

43489	PP Quick-Disconnect Nipple, NW 9.5 mm PP Quick-Disconnect Nipple, NW 9.5 mm	A-Gewinde NPT 1/2"	mit	53	1	22.00
16148	PP Quick-Disconnect Nipple, NW 9.5 mm PP Quick-Disconnect Nipple, NW 9.5 mm	A-Gewinde NPT 3/4"	mit	54	1	26.00
43482	PP Quick-Disconnect Nipple, NW 9.5 mm PP Quick-Disconnect Nipple, NW 9.5 mm	Tülle 9,5 mm	ohne	50	1	13.00
43483	PP Quick-Disconnect Nipple, NW 9.5 mm PP Quick-Disconnect Nipple, NW 9.5 mm	Tülle 12,7 mm	ohne	50	1	13.00

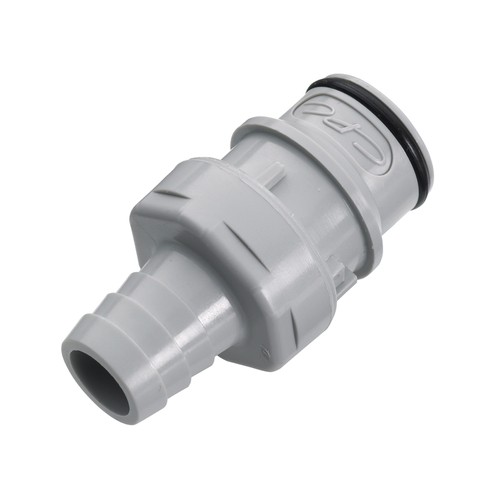

16151	PP Quick-Disconnect Nipple, NW 9.5 mm PP Quick-Disconnect Nipple, NW 9.5 mm	Tülle 15,9 mm	ohne	54	1	13.00
16152	PP Quick-Disconnect Nipple, NW 9.5 mm PP Quick-Disconnect Nipple, NW 9.5 mm	Tülle 19 mm	ohne	54	1	13.00
43484	PP Quick-Disconnect Nipple, NW 9.5 mm PP Quick-Disconnect Nipple, NW 9.5 mm	Tülle 9,5 mm	mit	53	1	26.00
43485	PP Quick-Disconnect Nipple, NW 9.5 mm PP Quick-Disconnect Nipple, NW 9.5 mm	Tülle 12,7 mm	mit	53	1	26.00
16155	PP Quick-Disconnect Nipple, NW 9.5 mm PP Quick-Disconnect Nipple, NW 9.5 mm	Tülle 15,9 mm	mit	54	1	21.00

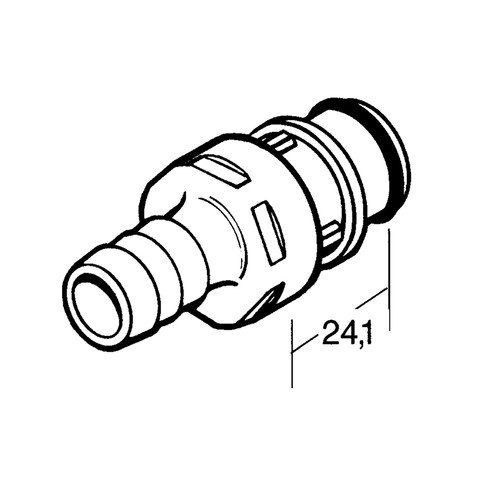

16156	PP Quick-Disconnect Nipple, NW 9.5 mm PP Quick-Disconnect Nipple, NW 9.5 mm	Tülle 19 mm	mit	57	1	24.00
