Multi-Lumen Quick-Disconnect Coupling and Nipple made of PA for Ten Flexible Conduits
Product specification

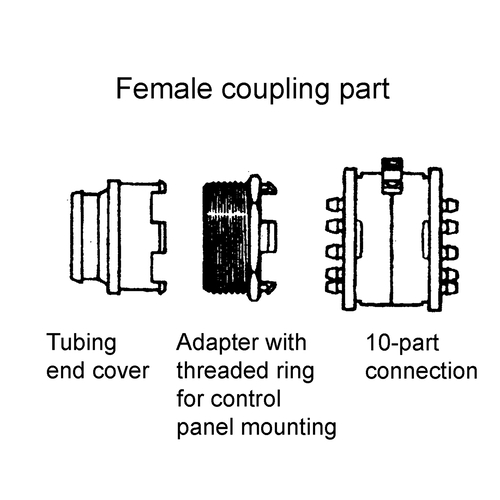

Complete simultaneous quick-release coupling system for ten separate gas or liquid flexible conduits with parallel ports, consisting of a coupling casing with ten nipple inserts (type "V" male) and a coupling casing with ten coupling inserts (type "M" female), additional adapter for front panel mounting available.
Technical specification
Material:
Casing: PA 6.6 (polyamide 66)
Springs: stainless steel
Temperature range:
POM inserts: -40 to +80 °C
PP inserts: 0 to +80 °C
Max. operating pressure: up to 6.9 bar per line at +20 °C
Mounting type: optionally fixed front panel mounting with bulkhead screwed fitting with additonal adapter
General Information Quick-Disconnect Coupling
THOMAFLUID®-quick-disconnect coupling systems are excellently suited for connecting and disconnecting of tubes, apparatuses etc. The quick-disconnect couplings are easy to operate, connecting and disconnecting can be done by one hand. The coupling is self-locking when the nipple is plugged-in. For disconnection a short thumb pressure on the lock is sufficient to pull out the nipple easily. All nipples are fitted with an easily interchangeable, reliably sealing O-ring.
A complete operable THOMAFLUID®-quick-disconnect coupling system consists of a coupling part and a nipple part, both parts may be fitted with valves. A complete quick-disconnect coupling system locking at one side consists of a coupling part with shut-off and a nipple part with port, or a coupling part with port and a nipple part with shut-off. To get a coupling locking on both sides, a coupling part as well as a nipple part, both with shut-off, have to be obtained.
Item | Image | Connection | Ventil | Werkstoff Dichtung | Werkstoff Einsätze |
Einheit Stück
|
Price Euro* |
Buy |
---|---|---|---|---|---|---|---|---|
16230 |
|
Tülle 1,6 mm | ohne | NBR | POM | 1 | 124.00 | |
16231 |
|
Tülle 3 mm | ohne | NBR | POM | 1 | 124.00 | |
16232 |
|
Tülle 4 mm | ohne | NBR | POM | 1 | 124.00 | |
16233 |
|
Tülle 1,6 mm | mit | NBR | POM | 1 | 335.00 | |
16234 |
|
Tülle 3 mm | mit | NBR | POM | 1 | 335.00 | |
16235 |
|
Tülle 4 mm | mit | NBR | POM | 1 | 335.00 | |
16236 |
|
Tülle 1,6 mm | ohne | EPDM | PP | 1 | 152.00 | |
16237 |
|
Tülle 4 mm | ohne | EPDM | PP | 1 | 152.00 |
