Straight Capillary Connector with Male Thread made of PP

Straight Capillary Connector with Male Thread made of PP

Product specification Coloured female screws made of PP Pressure pads made of PA, included... more

Close menu

Product specification

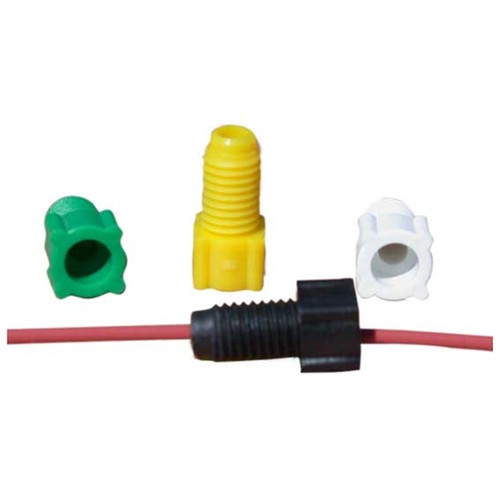

Coloured female screws made of PP

Pressure pads made of PA, included in delivery

Different colours for differentiation of the media to be conveyed

Technical specification

Material: PP

Temperature range: -10 to +100 °C

General Information MULTIFIT ® -flanged fittings are pressure- and tensile-resistant... more

Close menu

General Information

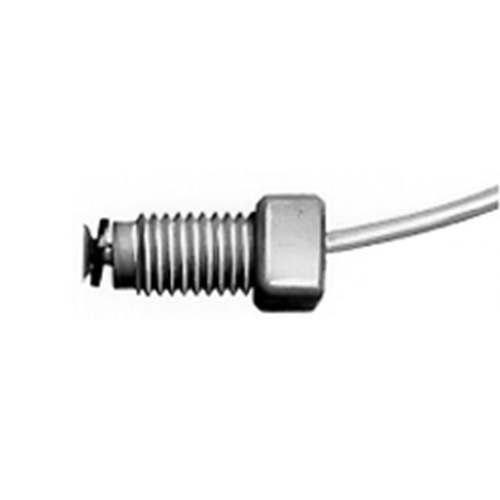

MULTIFIT^®-flanged fittings are pressure- and tensile-resistant tubing connections for fixed installation of tubing on metering systems, chromatographs, automatic analysers, hydraulic and pneumatic units, for pressure and vacuum, for all kinds of media in a wide temperature range. The connection can be established in two ways.

1. Connection by means of an insert:

Advantage: The connection is suitable not only for PTFE tubing but also for flexible tubing such as silicone or PVC.

Joint assembly: The tube is passed through the fitting hollow nut the thread of which points to the tube end. The tube end is expanded by sliding it on the drift of the special tool. A fitting adapter, put on the retaining pin of the special tool, is inserted in the expanded tube end. The tube end inserted into the adapter is slipped into the taphole of the coupling piece and the hollow nut is tightened manually.

2. Connection by means of a thermoflange:

Advantage: Inexpensive and simple connection if a thermoflange machine is available. For PTFE tubing only!

Joint assembly: The tube is passed through the fitting hollow nut the thread of which points to the tube end. A washer is slipped over the tube. The flange is produced within seconds by pushing the tube on the electrically heated drift of the thermoflange machine. The flanged tube end with the washer behind it is inserted in the taphole of the coupling piece and the hollow nut is tightened manually.

Item	Tubing outside Ø inch	Außengewinde	Farbe	Einheit Stück	Price Euro*
90842	1/16"	UNF 1/4"-28	schwarz	5	50.00
90843	1/16"	UNF 1/4"-28	rot	5	50.00
90844	1/16"	UNF 1/4"-28	grau	5	54.00
90845	1/16"	UNF 1/4"-28	gelb	5	50.00
90846	1/16"	UNF 1/4"-28	grün	5	50.00
90847	1/16"	UNF 1/4"-28	blau	5	50.00
90848	1/16"	UNF 1/4"-28	natur	5	50.00
90849	1/8"	UNF 1/4"-28	schwarz	5	50.00
90850	1/8"	UNF 1/4"-28	rot	5	50.00
90851	1/8"	UNF 1/4"-28	grau	5	54.00
90852	1/8"	UNF 1/4"-28	gelb	5	50.00
90853	1/8"	UNF 1/4"-28	grün	5	50.00
90854	1/8"	UNF 1/4"-28	blau	5	50.00
90855	1/8"	UNF 1/4"-28	natur	5	50.00
