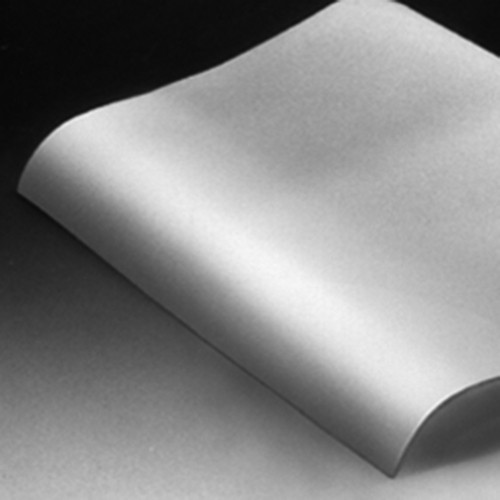

PETP Film
Product specification
Heavy duty film
Very low creeping tendency
Very good dimensional stability
Very wear-resistant
Not resistant to hydrolysis
Good temperature resistance
Good resistance to UV-radiation and weather
Good mechanical stability
Best stiffness and hardness
Good coefficient of sliding friction
Good abrasion resistance
Unstable to halogenated solutions as well as conc. alkalis and mineral acids
Sensitive to steam and hot water
Hazard indication: PETP is physiologically safe, but particles of this extremely thin film adhere to the skin and can cause irritations. Therefore, inhaling of film particles has absolutely to be avoided. The eyes have to be protected while working with the film.
Technical specification
Material: PETP (polyethylene-terephthalate)
Design: C-type film
Density: 1.39 g/cm3 (DIN 53479)
Temperature range: -20 to +110 °C, for a short time +160 °C
Dielectric strength: ≈60 kV/mm
Burning behaviour: Self-extinguishing
Item | Image |
Thickness mm
|
Abmessung mm
|
Breite mm
|
Länge m
|
Einheit Stück
|
Price Euro* |
Buy |
---|---|---|---|---|---|---|---|---|
18542 |
|
0,005 | 150 x 150 | 1 | 257.00 | |||
18543 |
|
0,005 | 300 x 300 | 1 | 452.00 | |||
18544 |
|
0,008 | 152 | 1 | 1 | 344.00 | ||
18545 |
|
0,008 | 152 | 5 | 1 | 482.00 | ||
18546 |
|
0,008 | 152 | 20 | 1 | 857.00 | ||
18547 |
|
0,008 | 152 | 100 | 1 | 2,653.00 | ||
18548 |
|
0,012 | 152 | 1 | 1 | 265.00 | ||
18549 |
|
0,012 | 152 | 5 | 1 | 432.00 | ||
18550 |
|
0,012 | 152 | 20 | 1 | 605.00 | ||
18551 |
|
0,012 | 152 | 100 | 1 | 1,998.00 | ||
18552 |
|
0,023 | 150 x 150 | 1 | 236.00 | |||
18553 |
|
0,023 | 152 | 1 | 1 | 344.00 | ||
18554 |
|
0,023 | 152 | 5 | 1 | 492.00 | ||
18555 |
|
0,023 | 152 | 20 | 1 | 717.00 | ||
18556 |
|
0,023 | 152 | 100 | 1 | 1,682.00 |
