Electronic Flowmeter made of PP or PVDF

Preview: 331564, 331565 Preview: 331566, 331567

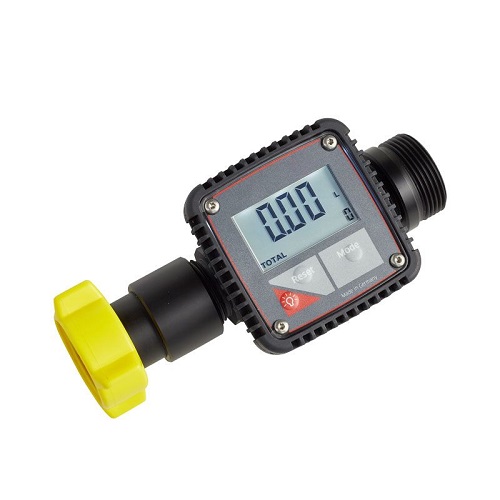

331564, 331565

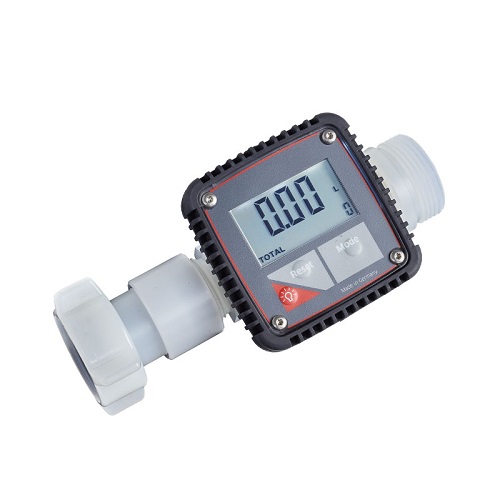

331566, 331567

Description General Information
Description
Application area Flow meter for all drum and container pumps with G 1 1/4"-external... more
Close menu

Application area

Flow meter for all drum and container pumps with G 1 1/4"-external connecting thread.

Product specification

Wide measuring range, also for small volume flow

Displays both sub-total and total volume, sub totals can be reset

Measurement by radial turbine technology

For thin-bodied, non inflammable liquids

Easy calibration

Durable lithium battery

The flow meter made of PP is suitable for neutral and aggressive media such as ferric (III) chloride, glycol, phosphoric acid, hydrochloric acid, etc.

The flow meter made of PVDF is suitable for highly aggressive media such as chlorine solution, nitric acid and sulphuric acid.

The pump is available in two designs.

Technical specification

Material:

Housing top: PP (polypropylene)

Measuring chamber: PP (polypropylene) or PVDF (polyvinylidene fluoride)

Turbine: PP (polypropylene) or PVDF (polyvinylidene fluoride)

Keypad: PES (polyethersulfone)

Shaft and bearing ball: Hastelloy C4 (2.4620)

Gasket: FPM (fluorinated rubber)

Range of measurement: 5 to 90 l/min.

Temperature range: -10 to +50 °C

Range of viscosity: 0.8 to 40 mPas

Max. operating pressure: 4 bar at +20 °C

Accuracy of measurement: ±1 %

Repeating accuracy: ±0.5 %

Pipe connection: external thread G 1 1/4"

Protective system: IP 65

General Information
more
Close menu
No additional information available.
Item Image Design Werkstoff Gewicht
kg
 Einheit
Stück
 Price
Euro* 		Buy
331564
Montage an Fasspumpe PP 0,3 1 672.00
331565
Montage an Zapfpistole PP 0,3 1 672.00
331566
Montage an Fasspumpe PVDF 0,4 1 794.00
331567
Montage an Zapfpistole PVDF 0,4 1 794.00
