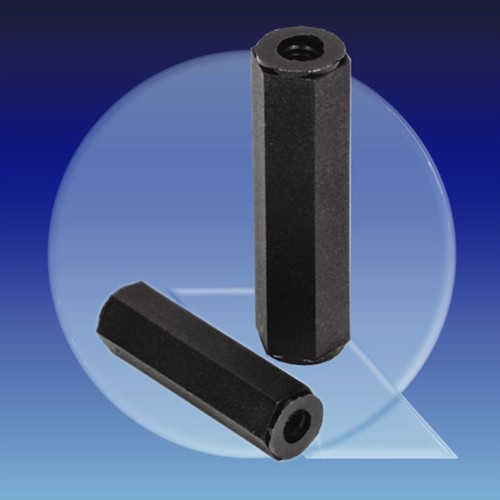

Spacer Standoff made of PA - hexagonal, internal thread

Spacer Standoff made of PA - hexagonal, internal thread

Product specification Hexagon spacer standoffs, internal thread M6 on both sides more

Close menu

Product specification

Hexagon spacer standoffs, internal thread M6 on both sides

General Information PA 6 .6 Good coefficient of sliding friction High mechanical... more

Close menu

General Information PA 6.6

Good coefficient of sliding friction

High mechanical stability and fatigue strength

Excellent resilience

Impact resistant

Resistant to abrasion

Resistant to cold

Chemical features:

Good resistance to weak alkalis, but only moderate resistance to strong alkalis; resistant to aromatic and aliphatic hydrocarbons, fuels, mineral oils and mineral lubricants; suitable for alkohols, esters, ketones, ethers and amines.

Material specification:

The polyamides are universal materials for mechanical functional parts

The temperature resistance of polyamide (from -30 to +100 °C, for a short time +120 °C) allows use in many industries

Connecting parts made of polyamide and similar plastics protect from rust and corrosion damage

Insulating properties and an amazingly high tensile strength

PA can also be used in the food processing industry and in medical fields

Resistant to corrosion and abrasion

Non-toxic and unmagnetic

Vibration-damping

PA 6.6 features the same chemical resistance as PA 6

PA 6.6 has a higher hardness, abrasion resistance, and a little higher operating temperature than PA 6

However, PA 6.6 is a little less impact resistant compared to PA 6

Material: PA 6.6 (polyamide 6.6)

Colour: natural

Density: 1.14 g/cm³ (DIN 53479)

Temperature range: -30 to +100 °C

Melting temperature: +255 °C (DIN 53736)

Yield stress: 83 N/mm² (ISO 527)

Elongation at break: 30 % (DIN 53455)

Bending strength: 115 N/mm² (DIN 53452)

Elastic modulus: 3,000 N/mm² (DIN 53457)

Impact resistance (Charpy): without break (DIN 53453)

Notch impact strength (Izod): 60 J/m (ASTM D 256)

Coefficient of sliding friction against steel (dry): 0.35 - 0.42

Dielectric loss factor (at 1 MHz): 0.025 (DIN 53483)

Volume resistivity: 10¹⁵ Ohm x cm (DIN 53482)

Surface resistance: approx. 10¹⁴ Ohm (DIN 53482)

Comparative tracking index (CTI): >600 V (IEC 112)

Dielectric strength: approx. 40 kV/mm (DIN 53481)

Water absorption (saturation): approx. 8.5 % (DIN 53495)

Moisture absorption (s.c.a.-saturation): approx. 2.9 % (DIN 53714)

Item	Internal thread	P1 mm	P2 mm	L mm	SW mm	Einheit Stück	Price Euro*
339197	M6 x 1	5	5	10	10	10	88.00
339198	M6 x 1	5	5	10	10	25	189.00
339199	M6 x 1	6	6	12	10	10	88.00
339200	M6 x 1	6	6	12	10	25	189.00
339203	M6 x 1	7,5	7,5	15	10	10	88.00
339204	M6 x 1	7,5	7,5	15	10	25	189.00
339207	M6 x 1	10	10	20	10	10	88.00
339208	M6 x 1	10	10	20	10	25	189.00
339209	M6 x 1	10	10	25	10	5	67.00
339210	M6 x 1	10	10	25	10	15	172.00
339211	M6 x 1	10	10	30	10	5	67.00
339212	M6 x 1	10	10	30	10	15	172.00
339213	M6 x 1	10	10	35	10	5	73.00
339214	M6 x 1	10	10	35	10	15	189.00
339215	M6 x 1	10	10	40	10	5	73.00
339216	M6 x 1	10	10	40	10	15	189.00
339217	M6 x 1	10	10	45	10	5	73.00
339218	M6 x 1	10	10	45	10	15	189.00
339219	M6 x 1	10	10	50	10	5	73.00
339220	M6 x 1	10	10	50	10	15	189.00
339221	M6 x 1	10	10	55	10	5	73.00
339222	M6 x 1	10	10	55	10	15	189.00
339223	M6 x 1	10	10	60	10	5	73.00
339224	M6 x 1	10	10	60	10	15	189.00
