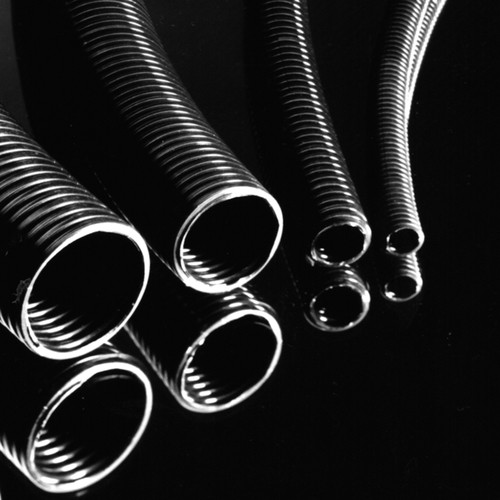

MFA Corrugated Pipe

Application area Automobile industry for highest thermal and electrical load, machine... more

Application area

Automobile industry for highest thermal and electrical load, machine construction and electrical engineering, chemical engineering and apparatus construction

Product specification

Temperature resistant corrugated pipe made of flame-resistant and highly stable fluorinated plastic

Extremely flexible

Mechanically highly loadable

Good abrasion resistance and impact resistance

Best dimensional stability over the whole temperature range

Resistant to UV-radiation

Technical specification

Material: MFA (modified fluoroalkoxy)

Colour: black

Shore hardness D: 59° (DIN 53505)

Temperature range: -200 to +240 °C

Melting temperature: +290 °C

Embrittlement temperature: -80 °C

Density: 2.14 g/cm³ according to ISO R 1183

Moisture uptake: <0.03 %

Dielectric strength: 36 kV/mm

Elongation at break: >300 % (DIN 53455)

Tensile modulus: 500 MPa (ISO 527c)

Impact strength: without break (DIN 53453)

Notch impact strength: without break (DIN 53453)

Surface resistance: 10¹⁷Ohm

Flammability rating: UL 94 V-0, FMSS 302 Type A

Close menu

No additional information available.

Item	Inside Ø mm	Außen-Ø mm	Wandstärke mm	min. Biegeradius mm	Einheit m	Price Euro*
331476	5,5	7,8	0,45	13	1	35.00
331477	5,5	7,8	0,45	13	5	142.00
331478	5,5	7,8	0,45	13	10	232.00
331479	7,6	10,7	0,45	19	1	37.00
331480	7,6	10,7	0,45	19	5	152.00
331481	7,6	10,7	0,45	19	10	251.00
331482	9,8	13	0,45	22	1	41.00
331483	9,8	13	0,45	22	5	172.00
331484	9,8	13	0,45	22	10	283.00
331485	12,4	16	0,6	32	1	50.00
331486	12,4	16	0,6	32	5	200.00
331487	12,4	16	0,6	32	10	317.00
331488	13,8	17,8	0,6	35	1	54.00
331489	13,8	17,8	0,6	35	5	225.00
331490	13,8	17,8	0,6	35	10	354.00
331491	15,5	19,6	0,6	38	1	58.00
331492	15,5	19,6	0,6	38	5	238.00
331493	15,5	19,6	0,6	38	10	377.00
331494	16,6	21,1	0,6	42	1	60.00
331495	16,6	21,1	0,6	42	5	244.00
331496	16,6	21,1	0,6	42	10	388.00
331497	18,6	23,3	0,6	44	1	65.00
331498	18,6	23,3	0,6	44	5	262.00
331499	18,6	23,3	0,6	44	10	407.00
331500	20,1	25	0,6	51	1	67.00
331501	20,1	25	0,6	51	5	268.00
331502	20,1	25	0,6	51	10	414.00
