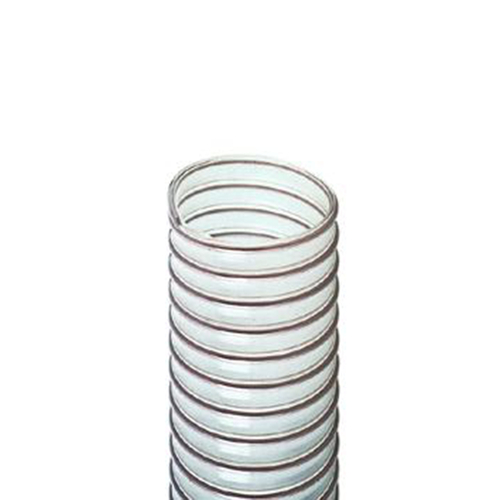

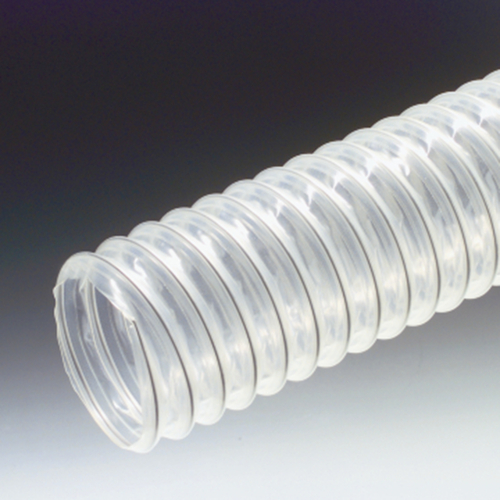

PUR Foil Tubing - conforming to FDA

Product specification Robust, medium-weighted type with integrated steel wire spiral Very... more

Product specification

Robust, medium-weighted type with integrated steel wire spiral

Very high abrasion resistance

Good resistance to weather, aging, and ozone

Resistant to hydrolysis and microbes

Eduction of static electricity by grounding the spiral

Resistent to mineral oil

UV-resistant

Technical specification

Material: PUR (ether polyurethane)

Colour: transparent

Temperature range: -40 to +90 °C, for a short time up to +125 °C

Insert: a corrosion-protected steel wire spiral

Wall thickness: 0.7 mm

Design: inside smooth; outside corrugated

Regulations: FDA 21 CFR §177.2600 and §178.2010

No additional information available.
Item Image Inside Ø
mm
Außen-Ø
mm
max. Betr.-Druck1
bar
Vakuum
mbar
min. Biegeradius
mm
Einheit
m
Price
Euro*
Buy
12481
50 57 1,13 345 63 1 69.00
12482
60 67 0,95 270 74 1 73.00
12483
80 87 0,71 165 96 1 82.00
12887
100 107 0,57 115 118 1 88.00
12888
120 127 0,47 95 140 1 105.00
12889
140 147 0,41 80 162 1 118.00
12890
150 157 0,38 75 173 1 126.00
12891
160 167 0,35 65 184 1 130.00
12892
180 187 0,32 50 206 1 135.00
12893
200 207 0,28 50 228 1 162.00
12894
250 257 0,23 20 283 1 213.00
12895
300 307 0,19 20 338 1 247.00
