General Information O-Rings

These O-Ring materials are specially developed for use in the food processing, pharmaceutical, petrochemical and chemical industries, as well as in technological processes

Design: O-Rings are vulcanised in moulds

Method of operation: O-Rings are double-acting sealing elements. The initial squeeze acting in a radial or axial direction due to the installation gives the O-Ring its initial sealing capability. These forces are superimposed by the system pressure to create the total sealing force which increases with increasing system pressure. Under pressure, the O-Ring behaves in a similar way to a fluid with high surface tension. The pressure is transmitted uniformly to all directions (see Figure Sealing forces).

Compared with other sealing elements, the O-Ring has a wide range of advantages: Inexpensive, allows low cost solutions; simple, one-piece groove design reduces hardware and design costs; compact design allows smaller hardware; easy, foolproof installation reduces risk; applicable to a wide range of sealing problems, static, dynamic, single or double acting; wide compound choice for compatibility with most fluids

Most common applications: Sealing of static machine parts against liquid or gaseous media; as a radial static seal, e.g. for bushings, covers, pipes, cylinders; as an axial static seal, e.g. for flanges, plates, caps; as a dynamic sealing element at axial, rotating and oscillating movements

Branch-specific sealing solutions: Approvals and conformities in the food processing industry: ADI free, FDA, 3-A; Sanitary Standards; pharmaceutical industry: ADI free, USP Class VI

Petrochemical industry: ex. decompression

Chemistry: permeation density and chemical stability

Dimensions: Inched ARP 001 - 932; Metric ID 3 - 193 mm; Cord thickness 1 - 8 mm

Manufacturing: According to the latest standards, with an optimal tool park, for quick and flexible handling, the traceability of materials is guaranteed, all parts go through a quality check before packaging

Usual application areas for elastomers regarding temperature and polarity of the used media

Approvals and certificates in the food, pharmaceutical and drinking water industries (see list of approvals)

Usual cleaning media for continuous plants in the food and pharmaceutical industries (see list of cleaning products)

General Information FPM

Very well suited for use in:

mineral oils, fats and waxes, motor oils and fuels, animal and vegetable fats, aliphatic and aromatic hydrocarbons, amines, hydraulic fluids, essential oils, and in high-temperature applications

Well suited for use in:

CIP / SIP media for continuous plants in the food, beverage and pharmaceutical industries

CIP (Cleaning in Place) = diluted acids or bases combined with cleaning additives

SIP (Sterilization in Place) = disinfectants, steam, oxidizing media (e.g. hypochlorite) and / or polar organic solvents (e.g. acetic acid)

Should not be used in concentrated acids (e.g. nitric or formic acid), concentrated oxidizing media (e.g. peracetic acid)

Outstanding temperature resistance

Very good resistance to ozone, oxygen, aging, and weather

Excellent resistance in mineral oils and fats

Low permeability to gas

Very good resistance in nonpolar media

Shows significant swelling in polar solvents and ketones

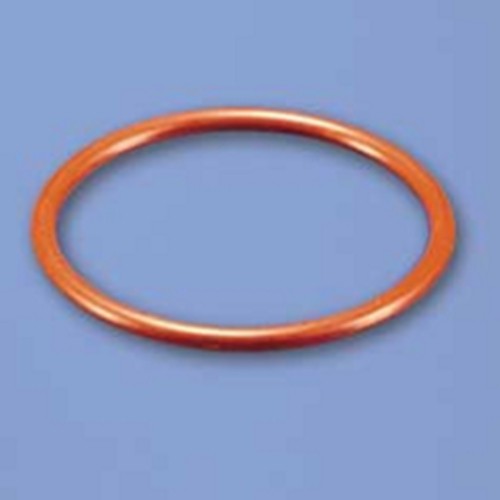

Material: FPM (fluorinated rubber)

Color: red or black

Crosslinking: bisphenolic

Shore hardness A: 75° ±5 (test plate) (DIN 53505)

Temperature range: -15 to +200 °C

IRHD: 70 +5 / -8 (o-ring) (DIN ISO 48 M)

Tensile strength: 15.7 N/mm² (DIN53504)

Elongation at break: 160 % (DIN 53504)

Volume resistivity: >10⁹ Ohm

Surface resistance: >10⁹ Ohm

Compression set: 15 % at +175 °C / 24 h / 25 %

Sterilization temperature: +149 °C (perishable foods); +121 °C (pharmacy)

Cleaning temperature: +82 °C (perishable foods)

Regulations:

For the food processing industry: conforming to FDA (CFR 21 Part 77.2600)

Free from animal derived ingredients (ADI free)

For perishable foods: 3-A Sanitary Standards Class II

For the pharmacy: USP Plastic Class VI at +121 °C

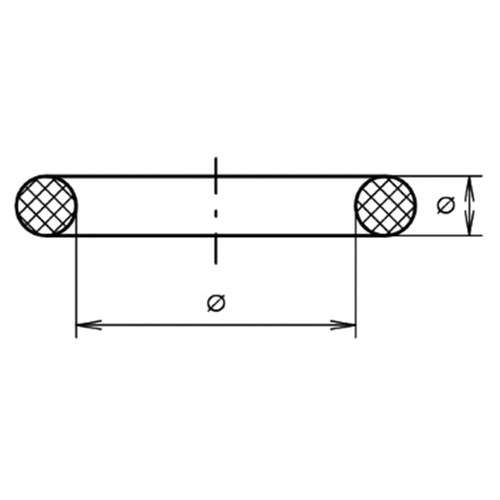

Item	Inside Ø mm	Toleranz Innen-Ø mm	Schnur Ø mm	Toleranz Schnur-Ø mm	Einheit Stück	Price Euro*
402254	12	±0,19	3,5	±0,10	5	125.00
402255	12	±0,19	3,5	±0,10	10	217.00
402256	16	±0,20	3,5	±0,10	5	125.00
402257	16	±0,20	3,5	±0,10	10	217.00
402258	18	±0,21	3,5	±0,10	5	125.00
402259	18	±0,21	3,5	±0,10	10	217.00
402260	20	±0,22	3,5	±0,10	5	125.00
402261	20	±0,22	3,5	±0,10	10	217.00
402262	22	±0,24	3,5	±0,10	5	142.00
402263	22	±0,24	3,5	±0,10	10	244.00
402264	26	±0,26	3,5	±0,10	5	142.00
402265	26	±0,26	3,5	±0,10	10	244.00
402266	28	±0,28	3,5	±0,10	5	142.00
402267	28	±0,28	3,5	±0,10	10	244.00
402268	32	±0,32	5	±0,13	5	142.00
402269	32	±0,32	5	±0,13	10	244.00
402270	34	±0,33	5	±0,13	5	195.00
402271	34	±0,33	5	±0,13	10	332.00
402272	40	±0,38	5	±0,13	5	195.00
402273	40	±0,38	5	±0,13	10	332.00
402274	40,5	±0,39	5	±0,13	5	195.00
402275	40,5	±0,39	5	±0,13	10	332.00
402276	46,5	±0,44	5	±0,13	5	242.00
402277	46,5	±0,44	5	±0,13	10	401.00
402278	52	±0,48	5	±0,13	5	242.00
402279	52	±0,48	5	±0,13	10	401.00
402280	58,5	±0,54	5	±0,13	5	242.00
402281	58,5	±0,54	5	±0,13	10	401.00
402282	68	±0,61	5	±0,13	5	313.00
402283	68	±0,61	5	±0,13	10	510.00
402284	73,5	±0,66	5	±0,13	5	313.00
402285	73,5	±0,66	5	±0,13	10	510.00
402286	83	±0,73	5	±0,13	5	313.00
402287	83	±0,73	5	±0,13	10	510.00
402288	86,5	±0,75	5	±0,13	5	377.00
402289	86,5	±0,75	5	±0,13	10	604.00
402290	102	±0,87	5	±0,13	5	377.00
402291	102	±0,87	5	±0,13	10	604.00
402292	111	±0,91	5	±0,13	5	377.00
402293	111	±0,91	5	±0,13	10	604.00
