Pulleys HTD-8M made of steel

Product specification Pulleys made of steel with 2 flanges For timing belts HTD-8M width 20,... more

Product specification

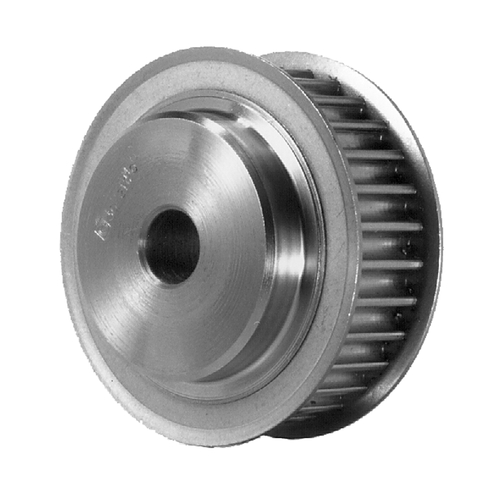

Pulleys made of steel with 2 flanges

For timing belts HTD-8M width 20, 30 and 50 mm

Technical specification

Material: steel, phosphated

Bore: pre-drilled

General Information Use for power transmission, bridging of large centre distances and... more

General Information

Use for power transmission, bridging of large centre distances and alteration of transmission ratios.

For various applications in machinery and plant engineering, in laboratory technology, in industrial and food processing plants, as well as in model making.

Quiet operation and synchronous transmission of power

Maintenance-free. Lubrication is not required.

High efficiency up to 98 %

Belt pre-tension is required

T timing belts made of polyurethane with pitch 2.5 or 5 mm. Light-coloured belts with little abrasion. For standard applications in machine building and food technology, to be used on T pulleys.

AT timing belts made of polyurethane with pitch 5 mm. Reinforced type for high loads with low space requirements. To be used on AT pulleys.

HTD timing belts made of neoprene with pitch 3, 5 or 8 mm. For high power transmission even at high speeds.

Black belts with dark abrasion (not for laboratory operations / food processing). To be used on HTD pulleys.

Notes on mounting and usage:

Pulleys must be aligned (precisely positioned)

The belt tension has to be adjusted (The overall sum of tensioning and peripheral force must not exceed the permitted tensile force of the belt.)

At least one pulley must be equipped with flanges.

And at least 6 teeth should be engaged at any time.

Timing belt drives run without lubrication.

General Information HTD

HTD (High Torque Drive) timing belts with semi-circular teeth profile with metric dimensions, pitch 3, 5 or 8 mm

Timing belts available as endless timing belts (closed-loop) or as open-length types (open-end, cannot be welded)

High load transmission even at high speeds

HTD timing belts only run on HTD pulleys

Pulleys available for HTD-3M made of aluminium, for HTD-5M made of steel (from 44 teeth made of aluminium), for HTD-8M made of steel (from 80 teeth made of grey cast iron)

HTD drives are not backlash-free

Semi-circular teeth profile for a more constant progress of stress

Contact surface lined with PA 6.6 (nylon) reinforcement for minimizing of abrasion

Material: neoprene, black, with tensile member of glass-fibre

Temperature range: -20 to +100 °C

Pitch: 3M: 3 mm; 5M: 5 mm; 8M: 8 mm

Overall height: 3M: 2.4 mm; 5M: 3.6 mm; 8M: 5.6 mm

Tooth height: 3M: 1.2 mm; 5M: 2.1 mm; 8M: 3.4 mm

Tensile force: 3M: 100 N; 5M: 208 N; 8M: 375 N (permissible tensile force at 10 mm belt width)

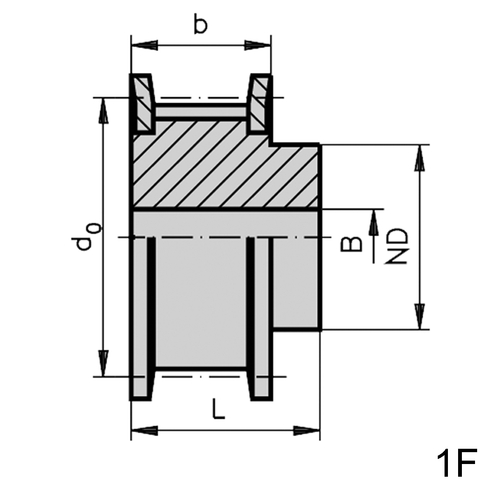

Item Image Profile Belt width
mm
Design Teeth Toothed wheel Ø1
mm
Flanged wheel Ø1
mm
Pitch circle (d0)
mm
Hub Ø (ND)
mm
Tooth width (b)
mm
L
mm
Pilot bore (B)
mm
max. Fertigbohrung (B)
mm
Weight
g
Unit
piece
Price
Euro*
Buy
702319
HTD-8M 20 1F 22 54,65 60 56,02 43 28 38 12 25 535 2 70.00
702320
HTD-8M 20 1F 22 54,65 60 56,02 43 28 38 12 25 535 6 156.00
702321
HTD-8M 20 1F 24 59,75 66 61,12 45 28 38 12 28 645 2 78.00
702322
HTD-8M 20 1F 24 59,75 66 61,12 45 28 38 12 28 645 6 174.00
702323
HTD-8M 20 1F 26 64,85 71 66,21 48 28 38 12 30 753 2 82.00
702324
HTD-8M 20 1F 26 64,85 71 66,21 48 28 38 12 30 753 6 180.00
702325
HTD-8M 20 1F 28 70,08 75 71,3 50 28 38 14 30 859 2 88.00
702326
HTD-8M 20 1F 28 70,08 75 71,3 50 28 38 14 30 859 6 198.00
702327
HTD-8M 20 1F 30 75,13 83 76,39 55 28 38 14 32 1.017 2 96.00
702328
HTD-8M 20 1F 30 75,13 83 76,39 55 28 38 14 32 1.017 6 216.00
702329
HTD-8M 20 1F 32 80,16 87 81,49 60 28 38 14 35 1.188 2 100.00
702330
HTD-8M 20 1F 32 80,16 87 81,49 60 28 38 14 35 1.188 6 222.00
702331
HTD-8M 20 1F 34 85,22 91 86,58 66 28 38 14 42 1.358 1 50.00
702332
HTD-8M 20 1F 34 85,22 91 86,58 66 28 38 14 42 1.358 3 114.00
702333
HTD-8M 20 1F 36 90,3 98,5 91,67 70 28 38 14 42 1.547 1 52.00
702334
HTD-8M 20 1F 36 90,3 98,5 91,67 70 28 38 14 42 1.547 3 117.00
702335
HTD-8M 20 1F 38 95,39 103 96,77 75 28 38 14 45 1.744 1 56.00
702336
HTD-8M 20 1F 38 95,39 103 96,77 75 28 38 14 45 1.744 3 129.00
702337
HTD-8M 20 1F 40 100,49 106 101,86 75 28 38 14 45 1.902 1 60.00
702338
HTD-8M 20 1F 40 100,49 106 101,86 75 28 38 14 45 1.902 3 138.00
702339
HTD-8M 20 1F 44 110,67 119 112,05 75 28 38 14 45 2.268 1 70.00
702340
HTD-8M 20 1F 44 110,67 119 112,05 75 28 38 14 45 2.268 3 162.00
702341
HTD-8M 20 1F 48 120,86 127 122,23 75 28 38 14 45 2.661 1 74.00
702342
HTD-8M 20 1F 48 120,86 127 122,23 75 28 38 14 45 2.661 3 171.00
702343
HTD-8M 30 1F 22 54,65 60 56,02 43 38 48 12 25 683 2 82.00
702344
HTD-8M 30 1F 22 54,65 60 56,02 43 38 48 12 25 683 6 186.00
702345
HTD-8M 30 1F 24 59,75 66 61,12 45 38 48 12 28 827 2 86.00
702346
HTD-8M 30 1F 24 59,75 66 61,12 45 38 48 12 28 827 6 192.00
702347
HTD-8M 30 1F 26 64,85 71 66,21 50 38 48 12 30 979 2 94.00
702348
HTD-8M 30 1F 26 64,85 71 66,21 50 38 48 12 30 979 6 210.00
702349
HTD-8M 30 1F 28 70,08 75 71,3 50 38 48 14 30 1.112 2 98.00
702350
HTD-8M 30 1F 28 70,08 75 71,3 50 38 48 14 30 1.112 6 222.00
702351
HTD-8M 30 1F 30 75,13 83 76,39 55 38 48 14 32 1.314 1 50.00
702352
HTD-8M 30 1F 30 75,13 83 76,39 55 38 48 14 32 1.314 3 114.00
702353
HTD-8M 30 1F 32 80,16 87 81,49 60 38 48 14 35 1.521 1 56.00
702354
HTD-8M 30 1F 32 80,16 87 81,49 60 38 48 14 35 1.521 3 126.00
702355
HTD-8M 30 1F 34 85,22 91 86,58 66 38 48 14 42 1.742 1 58.00
702356
HTD-8M 30 1F 34 85,22 91 86,58 66 38 48 14 42 1.742 3 135.00
702357
HTD-8M 30 1F 36 90,3 98,5 91,67 70 38 48 14 42 1.981 1 60.00
702358
HTD-8M 30 1F 36 90,3 98,5 91,67 70 38 48 14 42 1.981 3 138.00
702359
HTD-8M 30 1F 38 95,39 103 96,77 75 38 48 14 45 2.232 1 64.00
702360
HTD-8M 30 1F 38 95,39 103 96,77 75 38 48 14 45 2.232 3 150.00
702361
HTD-8M 30 1F 40 100,49 106 101,86 75 38 48 14 45 2.472 1 68.00
702362
HTD-8M 30 1F 40 100,49 106 101,86 75 38 48 14 45 2.472 3 156.00
702363
HTD-8M 30 1F 44 110,67 119 112,05 75 38 48 14 45 2.948 1 74.00
702364
HTD-8M 30 1F 44 110,67 119 112,05 75 38 48 14 45 2.948 3 168.00
702365
HTD-8M 30 1F 48 120,86 127 122,23 75 38 48 14 45 3.471 1 74.00
702366
HTD-8M 30 1F 48 120,86 127 122,23 75 38 48 14 45 3.471 3 165.00
702367
HTD-8M 50 1F 22 54,65 60 56,02 43 60 70 12 25 1.100 2 104.00
702368
HTD-8M 50 1F 22 54,65 60 56,02 43 60 70 12 25 1.100 6 186.00
702369
HTD-8M 50 1F 24 59,75 66 61,12 45 60 70 12 28 1.300 2 102.00
702370
HTD-8M 50 1F 24 59,75 66 61,12 45 60 70 12 28 1.300 6 180.00
702371
HTD-8M 50 1F 26 64,85 71 66,21 50 60 70 12 30 1.600 2 110.00
702372
HTD-8M 50 1F 26 64,85 71 66,21 50 60 70 12 30 1.600 6 198.00
702373
HTD-8M 50 1F 28 70,08 75 71,3 50 60 70 14 30 1.700 2 128.00
702374
HTD-8M 50 1F 28 70,08 75 71,3 50 60 70 14 30 1.700 6 228.00
702375
HTD-8M 50 1F 30 75,13 83 76,39 55 60 70 14 32 2.000 2 130.00
702376
HTD-8M 50 1F 30 75,13 83 76,39 55 60 70 14 32 2.000 6 234.00
702377
HTD-8M 50 1F 32 80,16 87 81,49 60 60 70 14 35 2.350 2 142.00
702378
HTD-8M 50 1F 32 80,16 87 81,49 60 60 70 14 35 2.350 6 252.00
702379
HTD-8M 50 1F 34 85,22 91 86,58 66 60 70 14 42 2.800 2 152.00
702380
HTD-8M 50 1F 34 85,22 91 86,58 66 60 70 14 42 2.800 6 276.00
702381
HTD-8M 50 1F 36 90,3 98,5 91,67 70 60 70 14 42 3.150 1 74.00
702382
HTD-8M 50 1F 36 90,3 98,5 91,67 70 60 70 14 42 3.150 3 141.00
702383
HTD-8M 50 1F 38 95,39 103 96,77 75 60 70 14 45 3.300 1 80.00
702384
HTD-8M 50 1F 38 95,39 103 96,77 75 60 70 14 45 3.300 3 153.00
702385
HTD-8M 50 1F 40 100,49 106 101,86 75 60 70 14 45 3.600 1 84.00
702386
HTD-8M 50 1F 40 100,49 106 101,86 75 60 70 14 45 3.600 3 165.00
702387
HTD-8M 50 1F 44 110,67 119 112,05 75 60 70 14 45 4.400 1 98.00
702388
HTD-8M 50 1F 44 110,67 119 112,05 75 60 70 14 45 4.400 3 189.00
702389
HTD-8M 50 1F 48 120,86 127 122,23 75 60 70 14 45 5.000 1 108.00
702390
HTD-8M 50 1F 48 120,86 127 122,23 75 60 70 14 45 5.000 3 213.00
