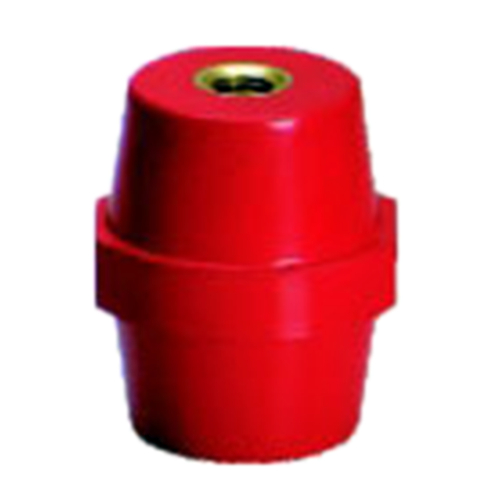

Insulating Spacers made of PEs-glass fiber reinforced - drum-type

Technical specification Design: drum-type Tolerance: 1 - 15 mm: ±0.25 mm;... more

Technical specification

Design: drum-type

Tolerance: 1 - 15 mm: ±0.25 mm; 16 - 50 mm: ±0.5 mm; 51 - 100 mm: ±1.0 mm

General Information Available in three designs: conical, drum-type and as hexagon Internal... more

General Information

Available in three designs: conical, drum-type and as hexagon

Internal thread on both sides

Threads are mutually insulated

Thread inserts made of steel

Chemical features:

Resistant to fuels, brake fluid, mineral, lubricating and heating oils, acids and medium-strong alkalis

Material specification:

The glass fibre reinforced polyester features high strength, stiffness and dimensional stability, high dimensional stability under heat, favourable dielectrical properties, good arc resistance, resistance to UV light and good resistance to weather, as well as good chemical resistance except to alkalis with a pH value >9; particularly suitable for mechanically highly loadable components due to glass fibre reinforcement.

Material: polyester, glass fibre reinforced (15 %)

Colour: red

Density: 1.9 g/cm3

Temperature range: -40 to +135 °C

Dielectric strength: 10 kV/mm (ASTM D 149)

Tensile strength: 400 kg f / cm

Bending strength: 900 kg f / cm

Pressure resistance: 1500 kg f / cm

Notch impact strength (Izod): 250 J / m

Water absorption: 0.15 % (at +23 °C / 24 h)

Flammability rating: UL 94 V-0

Burning behaviour: Self-extinguishing

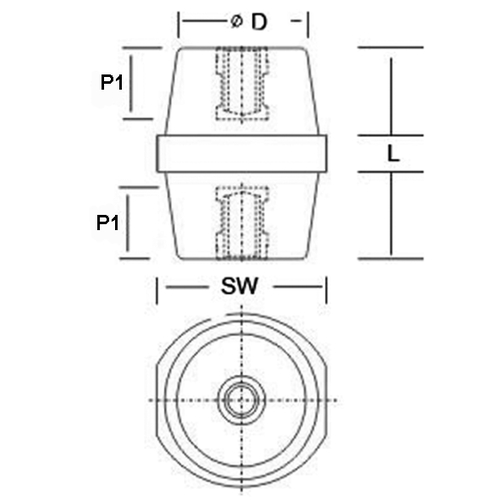

Item Image L
mm
Internal thread P1
mm
Nennspannung (AC/DC)
Volt
D
mm
SW
mm
Einheit
Stück
Price
Euro*
Buy
314015
35 M8 x 1,25 12 600/750 26 32 5 45.00
314016
35 M8 x 1,25 12 600/750 26 32 15 125.00
314017
45 M8 x 1,25 15 1000/1200 32 41 5 71.00
314018
45 M8 x 1,25 15 1000/1200 32 41 15 200.00
314019
51 M8 x 1,25 17 1000/1200 27 36 5 71.00
314020
51 M8 x 1,25 17 1000/1200 27 36 15 200.00
314021
45 M10 x 1,5 15 1000/1200 32 41 5 80.00
314022
45 M10 x 1,5 15 1000/1200 32 41 15 221.00
314023
60 M10 x 1,5 20 1500/1800 32 52 5 118.00
314024
60 M10 x 1,5 20 1500/1800 32 52 15 326.00
314025
75 M10 x 1,5 23 2000/2400 42 55 5 127.00
314026
75 M10 x 1,5 23 2000/2400 42 55 15 347.00
314027
76 M10 x 1,5 23 2000/2400 42 50 5 127.00
314028
76 M10 x 1,5 23 2000/2400 42 50 15 347.00
