Finned Plug made of LDPE - round | Reichelt Chemietechnik

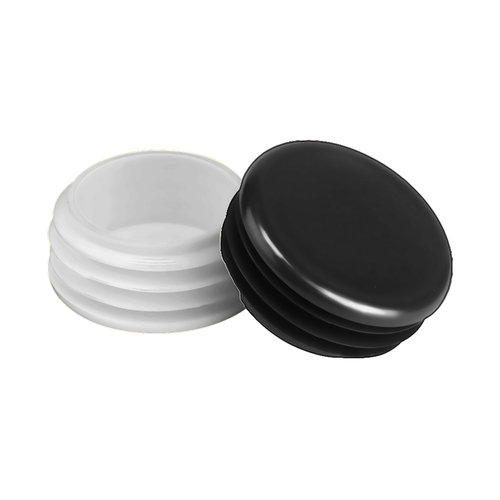

Preview: Finned Plug made of LDPE - round

Product specification Ribbed for easy mounting and secure fit For covering of sharp pipe... more

Close menu

Product specification

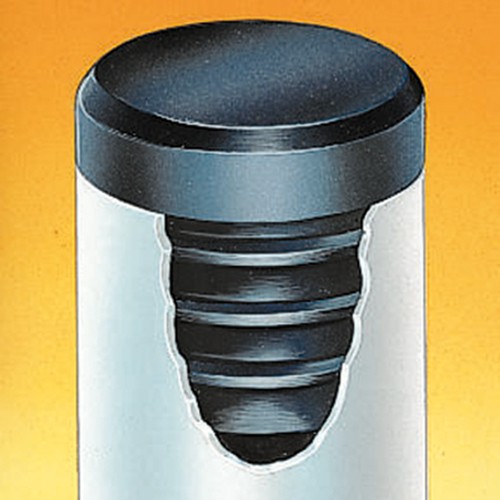

Ribbed for easy mounting and secure fit

For covering of sharp pipe edges

Technical specification

Material: LDPE (low density polyethylene,soft)

Colour: black or white

General Information Protect floors from getting cracked and scratched by heavy metal feet of... more

Close menu

General Information

Protect floors from getting cracked and scratched by heavy metal feet of machines, worktables or the like

Chemical features:

Good resistance to weak acids, weak and strong alkalis; resistant to organic acids, aliphatic hydrocarbons, as well as organic solvents below +60 °C.

Resistance to weather:

The material degrades when exposed to direct sunlight

Material specification:

LDPE is relatively flexible and soft, physiologically safe, excellent impact resistance even at low temperatures; antiadhesive, waxy and soft surface; high tearing strength; a high-quality electrical insulating material.

Due to its chemical properties, the bonding of PE requires special adhesives.

Material: LDPE (low density polyethylene)

Density: 0.915 - 0.926 g/cm³

Temperature range: -30 to +60 °C, for a short time +80 °C

Elastic modulus: 220 - 400 N/mm²

Tensile strength: 8 - 23 N/mm²

Tearing strength: 15 - 20 MPa (DIN 53455)

Elongation at break: 300 - 1000 % (DIN 53455)

Impact resistance:

+20 °C: without break (DIN 53453);

-40 °C: 300 kJ/m² (DIN 53448)

Surface resistance: 10¹⁴ Ohm (DIN 53482)

Volume resistivity: 10¹⁷ Ohm x cm (DIN 53482)

Dielectric strength: 30 - 40 kV/mm

Dielectric constant: 2.3 at 100 Hz

Water absorption: <0.1 % (ISO 62)

Item	D mm	h mm	h1 mm	g mm	Colour	Einheit Stück	Price Euro*
315904	10	11,5	3,5	0,8 - 2	schwarz	50	38.00
315905	10	11,5	3,5	0,8 - 2	schwarz	100	65.00
315906	12	11,5	3,5	0,8 - 2	schwarz	50	45.00
315907	12	11,5	3,5	0,8 - 2	schwarz	100	75.00
315908	13	11,5	4	0,8 - 2	schwarz	50	45.00
315909	13	11,5	4	0,8 - 2	schwarz	100	75.00
315910	14	11,5	5	1,5 - 2	schwarz	50	48.00
315911	14	11,5	5	1,5 - 2	schwarz	100	82.00
315912	15	11,5	3	0,8 - 2	schwarz	50	48.00
315913	15	11,5	3	0,8 - 2	schwarz	100	82.00
315914	16	11,5	5	0,8 - 2	weiß	50	52.00
315915	16	11,5	5	0,8 - 2	weiß	100	89.00
315916	16	11,5	5	0,8 - 2	schwarz	50	52.00
315917	16	11,5	5	0,8 - 2	schwarz	100	89.00
315918	18	11,5	5	0,8 - 2	schwarz	50	52.00
315919	18	11,5	5	0,8 - 2	schwarz	100	90.00
315920	19	11,5	5	0,8 - 2	schwarz	50	56.00
315921	19	11,5	5	0,8 - 2	schwarz	100	97.00
315922	20	11,5	5	0,8 - 2	weiß	50	63.00
315923	20	11,5	5	0,8 - 2	weiß	100	105.00
315924	20	11,5	5	0,8 - 2	schwarz	50	63.00
315925	20	11,5	5	0,8 - 2	schwarz	100	105.00
315926	21	11,5	5	0,8 - 2	schwarz	25	39.00
315927	21	11,5	5	0,8 - 2	schwarz	50	69.00
315928	22	11,5	5	0,8 - 2	schwarz	25	35.00
315929	22	11,5	5	0,8 - 2	schwarz	50	58.00
315930	23	11,5	5	0,8 - 2,5	schwarz	25	45.00
315931	23	11,5	5	0,8 - 2,5	schwarz	50	75.00
315932	24	11,5	5	1 - 2,5	schwarz	25	47.00
315933	24	11,5	5	1 - 2,5	schwarz	50	78.00
315934	25	11,5	5	1 - 3	weiß	25	47.00
315935	25	11,5	5	1 - 3	weiß	50	78.00
315936	25	11,5	5	1 - 3	schwarz	25	47.00
315937	25	11,5	5	1 - 3	schwarz	50	78.00
315938	25,4	11,5	5	1 - 3	schwarz	25	47.00
315939	25,4	11,5	5	1 - 3	schwarz	50	78.00
315940	26	11,5	5	1 - 3	schwarz	25	54.00
315941	26	11,5	5	1 - 3	schwarz	50	90.00
315942	28	11,5	5	1 - 3	schwarz	25	48.00
315943	28	11,5	5	1 - 3	schwarz	50	80.00
315944	28,6	11,5	5	1 - 3	schwarz	25	56.00
315945	28,6	11,5	5	1 - 3	schwarz	50	95.00
315946	30	11,5	5	1 - 3	weiß	25	56.00
315947	30	11,5	5	1 - 3	weiß	50	95.00
315948	30	11,5	5	1 - 3	schwarz	25	56.00
315949	30	11,5	5	1 - 3	schwarz	50	95.00
315952	32	11,5	5	1 - 3	weiß	25	63.00
315953	32	11,5	5	1 - 3	weiß	50	107.00
315954	32	11,5	5	1 - 3	schwarz	25	63.00
315955	32	11,5	5	1 - 3	schwarz	50	107.00
315956	34	11,5	5	1 - 3	schwarz	25	93.00
315957	34	11,5	5	1 - 3	schwarz	50	155.00
315958	35	11,5	5	1 - 3	weiß	25	69.00
315959	35	11,5	5	1 - 3	weiß	50	114.00
315960	35	11,5	5	1 - 3	schwarz	25	69.00
315961	35	11,5	5	1 - 3	schwarz	50	114.00
315962	37	11,5	5	1 - 3	schwarz	25	97.00
315963	37	11,5	5	1 - 3	schwarz	50	163.00
315964	38	11,5	5	1 - 3	schwarz	25	63.00
315965	38	11,5	5	1 - 3	schwarz	50	124.00
315966	40	11,5	5	1 - 3	weiß	25	78.00
315967	40	11,5	5	1 - 3	weiß	50	133.00
315968	40	11,5	5	1 - 3	schwarz	25	78.00
315969	40	11,5	5	1 - 3	schwarz	50	133.00
315970	42	11,5	5	1 - 3	schwarz	25	90.00
315971	42	11,5	5	1 - 3	schwarz	50	150.00
315972	45	11,5	5	1 - 3	schwarz	10	56.00
315973	45	11,5	5	1 - 3	schwarz	25	116.00
315974	50	14,5	5	1 - 3	weiß	10	56.00
315975	50	14,5	5	1 - 3	weiß	25	116.00
315976	50	14,5	5	1 - 3	schwarz	10	63.00
315977	50	14,5	5	1 - 3	schwarz	25	135.00
315978	50,8	14,5	5	1 - 3	schwarz	10	54.00
315979	50,8	14,5	5	1 - 3	schwarz	25	114.00
315980	55	11,5	5	1 - 3	schwarz	5	63.00
315981	55	11,5	5	1 - 3	schwarz	15	148.00
315982	60	14,5	5	1 - 3	schwarz	10	67.00
315983	60	14,5	5	1 - 3	schwarz	25	142.00
315984	60	20,1	6	3,5 - 5	weiß	10	67.00
315985	60	20,1	6	3,5 - 5	weiß	25	142.00
315986	60	20,1	6	3,5 - 5	schwarz	10	67.00
315987	60	20,1	6	3,5 - 5	schwarz	25	142.00
315988	65	14,5	5	1 - 3	schwarz	5	80.00
315989	65	14,5	5	1 - 3	schwarz	15	200.00
315990	70	21	5	2 - 4,5	schwarz	5	84.00
315991	70	21	5	2 - 4,5	schwarz	15	208.00
315992	75	22	6	2 - 4	schwarz	5	54.00
315993	75	22	6	2 - 4	schwarz	15	135.00
315994	76,2	22	6	2 - 4	schwarz	5	54.00
315995	76,2	22	6	2 - 4	schwarz	15	135.00
315996	80	21	4	1,5 - 3	schwarz	5	75.00
315997	80	21	4	1,5 - 3	schwarz	15	185.00
315998	90	20	5	2,5 - 5	schwarz	5	75.00
315999	90	20	5	2,5 - 5	schwarz	15	185.00
