Threaded Sleeve made of PP or PVDF
Product specification

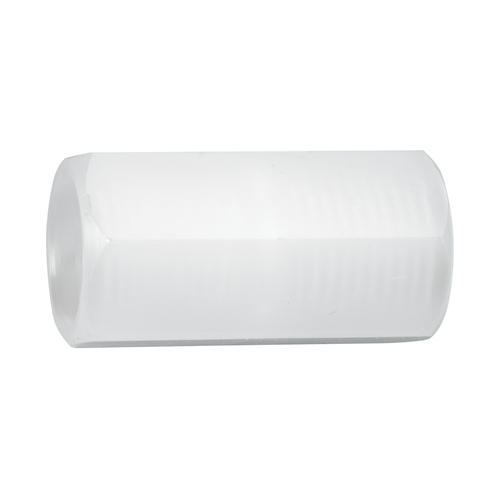

Threaded sleeves with internal thread on both sides, in different sizes and materials.
The threads are produced seamlessly according to DIN, USAS and JIS
General Information
Material: PP, grey (polypropylene)
Temperature range: +5 to +90 °C
Max. operating pressure: 10 bar at +20 °C
Regulatory compliance to FDA 21 CFR 177.1520, RoHS, BPA-free, DEHP-free, BSE/ADI-free
Material: PVDF, white (polyvinylidene fluoride)
Temperature range: -40 to +140 °C
Max. operating pressure: 10 bar at +20 °C
Regulatory compliance to FDA 21 CFR 177.1520, USP class VI, RoHS, BPA-free, DEHP-free, BSE/ADI-free
Material: PFA, white (perfluoroalkoxy)
Temperature range: -150 to +180 °C
Max. operating pressure: 10 bar at +20 °C
Regulatory compliance to FDA 21 CFR 177.1520, USP class VI, RoHS, BPA-free, DEHP-free, BSE/ADI-free

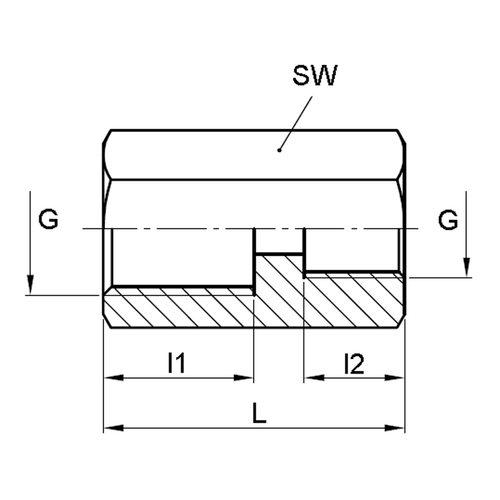

Item | Image | Internal thread (A) | Innengewinde (B) |
l1 mm
|
l2 mm
|
L mm
|
SW mm
|
Werkstoff |
Einheit Stück
|
Price Euro* |
Buy |
---|---|---|---|---|---|---|---|---|---|---|---|
303210 |
|
G 1/8" | G 1/8" | 10 | 10 | 24 | 14 | PP | 1 | 10.00 | |
303211 |
|
G 1/8" | G 1/8" | 10 | 10 | 24 | 14 | PVDF | 1 | 25.00 | |
303212 |
|
G 1/4" | G 1/8" | 15 | 10 | 30 | 17 | PP | 1 | 12.00 | |
303213 |
|
G 1/4" | G 1/8" | 15 | 10 | 30 | 17 | PVDF | 1 | 33.00 | |
303214 |
|
G 1/4" | G 1/4" | 15 | 15 | 34 | 17 | PP | 1 | 11.00 | |
303215 |
|
G 1/4" | G 1/4" | 15 | 15 | 34 | 17 | PVDF | 1 | 29.00 | |
303216 |
|
G 3/8" | G 1/8" | 15 | 10 | 30 | 22 | PP | 1 | 30.00 | |
303217 |
|
G 3/8" | G 1/8" | 15 | 10 | 30 | 22 | PVDF | 1 | 51.00 | |
303218 |
|
G 3/8" | G 1/4" | 15 | 15 | 34 | 22 | PP | 1 | 28.00 | |
303219 |
|
G 3/8" | G 1/4" | 15 | 15 | 34 | 22 | PVDF | 1 | 51.00 | |
303220 |
|
G 3/8" | G 3/8" | 15 | 15 | 34 | 22 | PP | 1 | 26.00 | |
303221 |
|
G 3/8" | G 3/8" | 15 | 15 | 34 | 22 | PVDF | 1 | 44.00 | |
303222 |
|
G 1/2" | G 1/8" | 16 | 10 | 30 | 27 | PP | 1 | 30.00 | |
303223 |
|
G 1/2" | G 1/8" | 16 | 10 | 30 | 27 | PVDF | 1 | 73.00 | |
303224 |
|
G 1/2" | G 1/4" | 16 | 15 | 35 | 27 | PP | 1 | 30.00 | |
303225 |
|
G 1/2" | G 1/4" | 16 | 15 | 35 | 27 | PVDF | 1 | 69.00 | |
303226 |
|
G 1/2" | G 3/8" | 16 | 15 | 35 | 27 | PP | 1 | 28.00 | |
303227 |
|
G 1/2" | G 3/8" | 16 | 15 | 35 | 27 | PVDF | 1 | 69.00 | |
303228 |
|
G 1/2" | G 1/2" | 16 | 16 | 37 | 27 | PP | 1 | 26.00 | |
303229 |
|
G 1/2" | G 1/2" | 16 | 16 | 37 | 27 | PVDF | 1 | 62.00 | |
303230 |
|
G 3/4" | G 1/4" | 20 | 15 | 40 | 32 | PP | 1 | 46.00 | |
303231 |
|
G 3/4" | G 3/8" | 20 | 15 | 40 | 32 | PP | 1 | 46.00 | |
303232 |
|
G 3/4" | G 3/8" | 20 | 15 | 40 | 32 | PVDF | 1 | 108.00 | |
303233 |
|
G 3/4" | G 1/2" | 20 | 16 | 42 | 32 | PP | 1 | 46.00 | |
303234 |
|
G 3/4" | G 1/2" | 20 | 16 | 42 | 32 | PVDF | 1 | 108.00 | |
303235 |
|
G 3/4" | G 3/4" | 20 | 20 | 46 | 32 | PP | 1 | 44.00 | |
303236 |
|
G 3/4" | G 3/4" | 20 | 20 | 46 | 32 | PVDF | 1 | 97.00 | |
303237 |
|
G 1" | G 1/4" | 22 | 15 | 40 | 43 | PP | 1 | 65.00 | |
303238 |
|
G 1" | G 1/4" | 22 | 15 | 40 | 43 | PVDF | 1 | 147.00 | |
303239 |
|
G 1" | G 3/8" | 22 | 15 | 41 | 43 | PP | 1 | 65.00 | |
303240 |
|
G 1" | G 3/8" | 22 | 15 | 41 | 43 | PVDF | 1 | 147.00 | |
303241 |
|
G 1" | G 1/2" | 22 | 16 | 41 | 43 | PP | 1 | 62.00 | |
303242 |
|
G 1" | G 1/2" | 22 | 16 | 41 | 43 | PVDF | 1 | 147.00 | |
303243 |
|
G 1" | G 3/4" | 22 | 20 | 62 | 43 | PP | 1 | 62.00 | |
303244 |
|
G 1" | G 3/4" | 22 | 20 | 62 | 43 | PVDF | 1 | 147.00 | |
303245 |
|
G 1" | G 1" | 22 | 22 | 55 | 43 | PP | 1 | 50.00 | |
303246 |
|
G 1" | G 1" | 22 | 22 | 55 | 43 | PVDF | 1 | 126.00 |
