Application area
Machine engineering (for pneumatic tools), operating technology, hydraulics and pneumatics, process engineering
Product specification
Highest pressure resistance
High wear resistance
Dimensionally stable
Low weight
High flexibility
Resistant to gasoline, greases, oils, diluted acids and alkalis
Technical specification

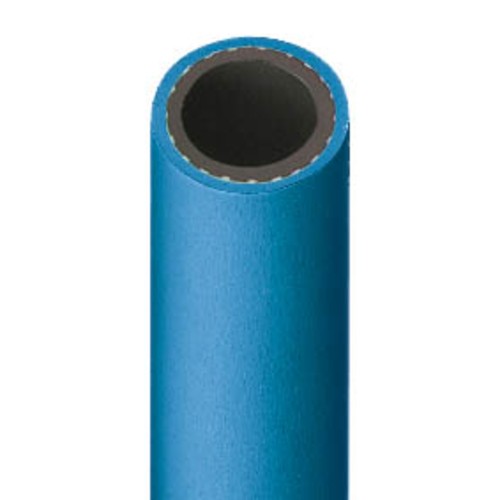

Material: PUR (polyurethane)
Colour:
Liner: black, smooth
Jacket: blue, smooth
Temperature range: -20 to +60 °C
Max. operating pressure: 20 bar at +20 °C
Bursting pressure: 60 bar at +20 °C
Tubing imprint: PN 20 bar
| Item | Image |
Inside Ø mm
|
Außen-Ø mm
|
max. Betr.-Druck1 bar
|
Einheit m
|
Price Euro* |
Buy |
|---|---|---|---|---|---|---|---|
| 340046 |
|
6 | 10 | 20 | 5 | 69.00 | |
| 340047 |
|
6 | 10 | 20 | 10 | 133.00 | |
| 340048 |
|
8 | 12 | 20 | 5 | 86.00 | |
| 340049 |
|
8 | 12 | 20 | 10 | 159.00 | |
| 340050 |
|
9 | 13 | 20 | 5 | 103.00 | |
| 340051 |
|
9 | 13 | 20 | 10 | 193.00 | |
| 340052 |
|
10 | 14,5 | 20 | 5 | 122.00 | |
| 340053 |
|
10 | 14,5 | 20 | 10 | 221.00 | |
| 340054 |
|
13 | 18 | 20 | 5 | 148.00 | |
| 340055 |
|
13 | 18 | 20 | 10 | 281.00 | |
