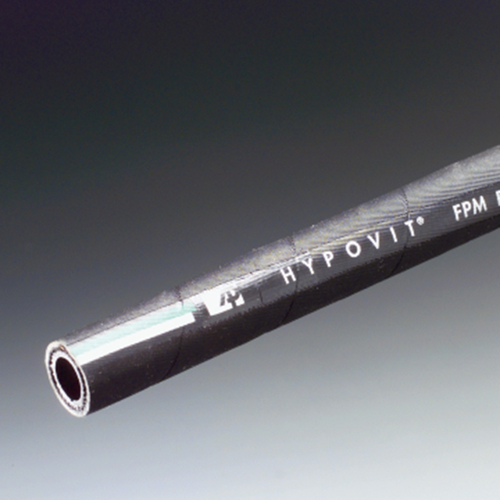

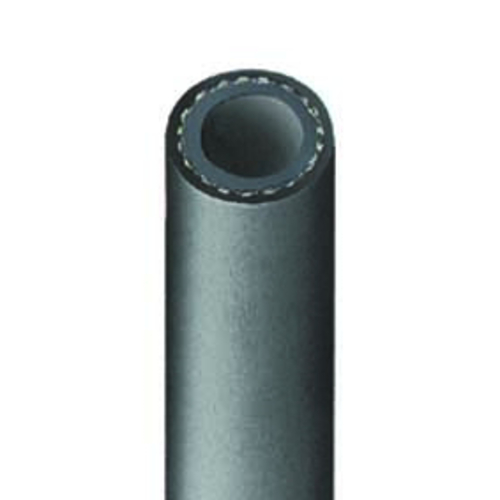

FPM Double-Wall Jacket Chemical Tubing

Preview: FPM Double-Wall Jacket Chemical Tubing Preview: FPM Double-Wall Jacket Chemical Tubing
FPM Double-Wall Jacket Chemical Tubing
FPM Double-Wall Jacket Chemical Tubing

Description General Information
Description
Application area Chemical industry, pharmaceutical industry, mineral oil industry, process... more
Close menu

Application area

Chemical industry, pharmaceutical industry, mineral oil industry, process engineering

Product specification

Liner:

Very good resistance to chemicals

Very good heat resistance (operating temperatures)

Very high chemical resistance

Very good resistance to ozone, oxygen, aging, and weather

Good flame resistance

Technical specification

Material:

Liner: FKM (fluorinated rubber)

Jacket: CR (chloroprene rubber)

Colour: black

Temperature range: -20 to +120 °C

Max. operating pressure: 10 bar at +20 °C

Bursting pressure: 30 bar at +20 °C

Insert: polyester fabric with 2 copper braids, crossed

Design: smooth (inside and outside)

General Information
General Information FPM For use in analytical technology, medical engineering, chemical... more
Close menu

General Information FPM

For use in analytical technology, medical engineering, chemical industry, biotechnology, laboratory technology and process engineering.

Extraordinary chemical resistance to hydrocarbons, mineral, vegetable, and animal oils, aromatic and chlorine containing solvents, many acids, alkalis, and oxidizing agents. Unstable to polar solvents and certain lyes.

Conveying tubing made of high-quality mixed polymers of fluorinated hydrocarbons

Very good chemical resistance

Very good heat resistance

Very good resistance to effects of ozone, oxygen, aging, and weather

Flame-resistant

Smooth surface

Low abrasion

Highest mechanical strength

Maximum dimensional stability

Material: FPM (fluorinated rubber)

Colour: black

Temperature range: -20 to +200 °C, for a short period +250 °C

Permeability: extremely low, nearly gas-tight

Dielectric constant: 15 at 50 Hz

Volume Resistivity: 2 x 1013 Ohm x cm

Abrasion: 190 mm3

Tolerances: DIN ISO 3302-1 E2

Item Image Inside Ø
mm
 Außen-Ø
mm
 min. Biegeradius
mm
 Einheit
m
 Price
Euro* 		Buy
42164
6 15 100 1 148.00
42165
6 15 100 3 360.00
42166
8 17 120 1 173.00
42167
8 17 120 3 406.00
42168
10 19 150 1 195.00
42169
10 19 150 3 451.00
42170
13 22 180 1 217.00
42171
13 22 180 3 512.00
42172
16 25 200 1 269.00
42173
16 25 200 3 458.00
42174
19 28 240 1 224.00
42175
19 28 240 3 526.00
