Squeeze Bulb Pump made of LDPE

Product specification Easy-to-handle lifting pump for emptying bottles, balloons, tanks and... more

Product specification

Easy-to-handle lifting pump for emptying bottles, balloons, tanks and open containers up to approx. 100 liters and a depth of max. 100 cm.

For aqueous liquids. Not suitable for acids or solvents.

Versions:

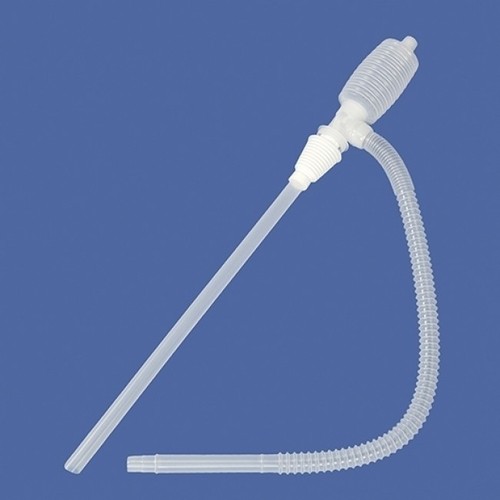

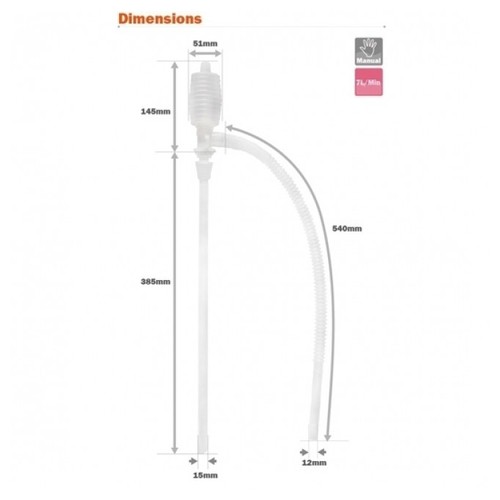

1. Completely made of polyethylene, flexible PVC hose. Ø Riser 13 mm, hose 12 mm.

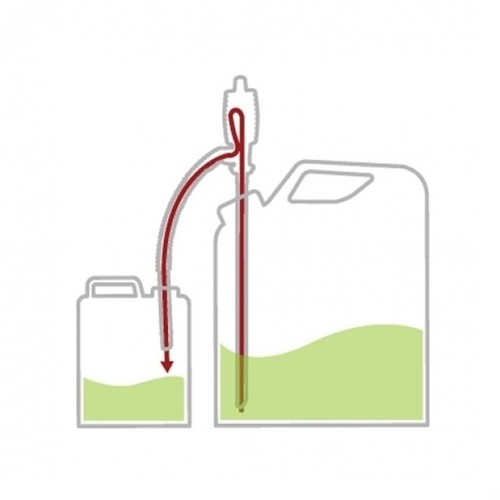

After repeated, strong compression and lifting of the pump bellows, the liquid begins to run continuously. The hose end must always be lower than the fluid level.

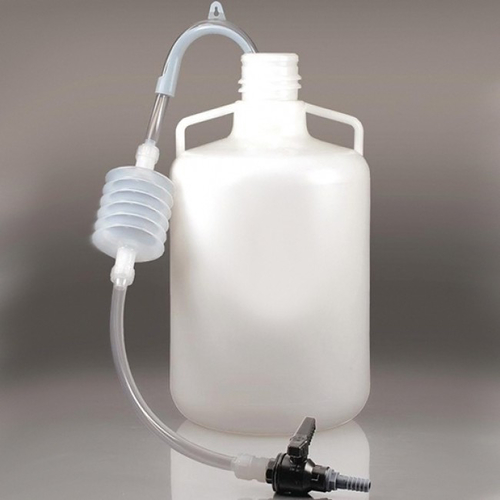

2. Riser pipe Ø 18 mm made of PE (can also be cut to the desired length), outlet pipe 1.2 m long made of PE, outlet ball valve made of PP, light and precise running, outlet nozzle Ø 16 mm outside.

By repeatedly squeezing (with the tap closed), the bellows must be completely filled with liquid. Then the tap is opened and the liquid runs off unhindered (lifting effect). The cock outlet must always be lower than the liquid level.

No additional information available.
Item Image Design Immersion tube length
mm
Pipe outside Ø
mm
Max. delivery rate
l/min.
Unit
piece
Price
Euro*
Buy
11606
11606 11606
11606 11606
11606 11606
1 385 13 7 1 67.00
11607
11606 11606
2 1.000 18 9 1 190.00
