Edge Trim - with seal

Edge Trim - with seal
Application area For covering edges and sealing doors and lids As protection against... more

Application area

For covering edges and sealing doors and lids

As protection against injuries

For protection against contamination with a simultaneous improvement of the visual appearance

Product specification

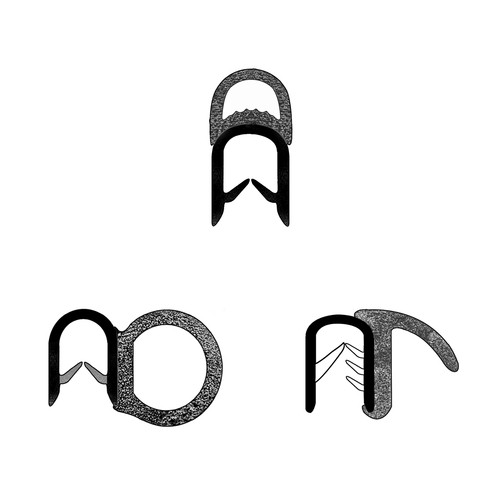

Three different types:

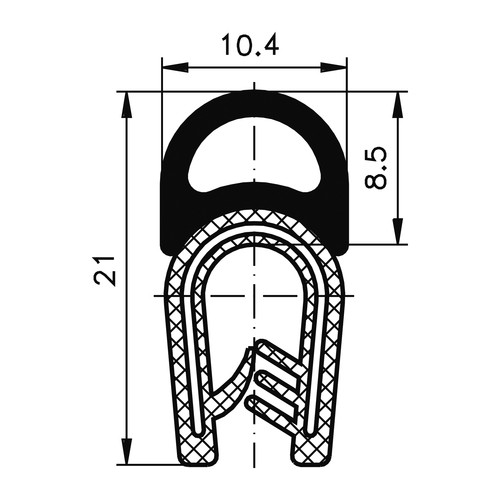

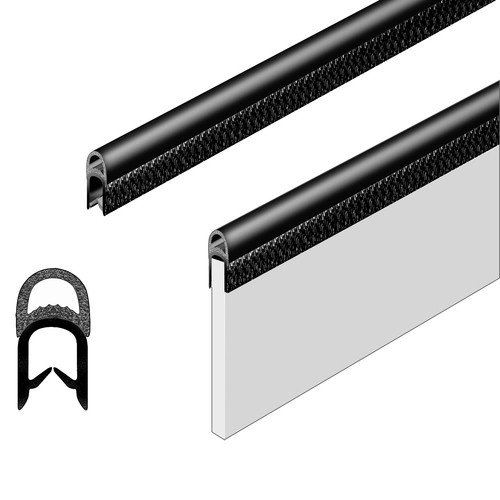

KD-1: with overhead hollow section sealing

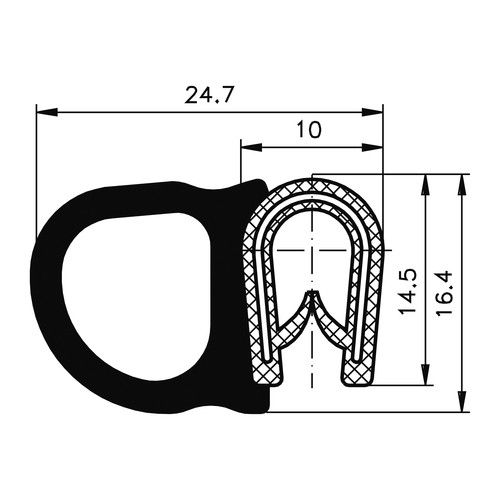

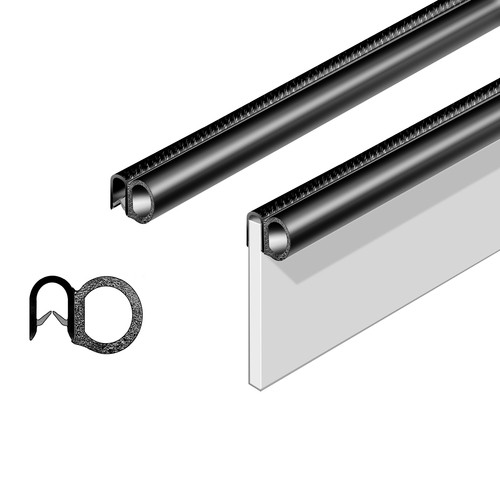

KD-2: with lateral hollow section sealing

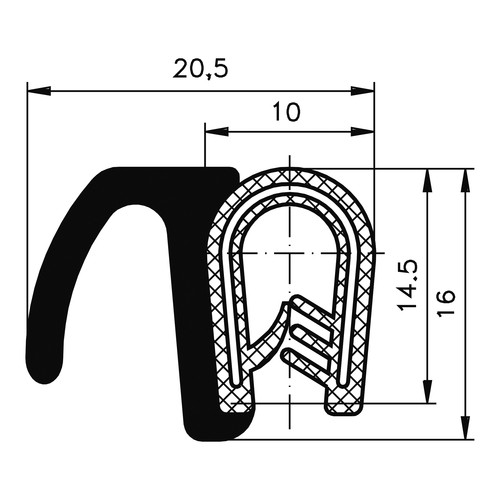

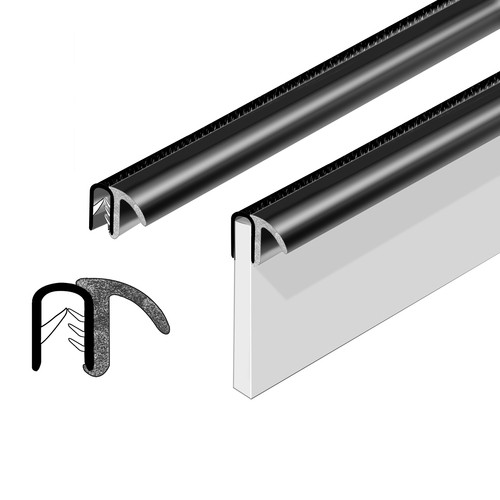

KD-3: with lateral sealing lip

High-quality edge trim with seal in various designs

With embedded steel metal clips / wire construction for strong hold

Mounting by hand or with a rubber / plastic mallet

Screwing or bonding usually not required

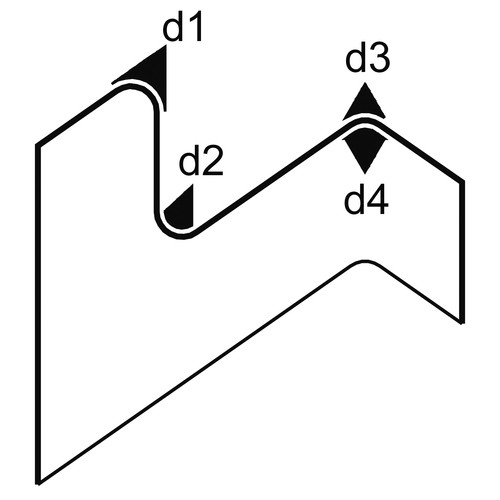

Minimum bending radii need to be considered

Delivery in lengths of 5 m and 10 m (on request as 50 m or 100 m rolls)

Technical specification

Material:

Edge trim: PVC black

Metal clips / wire construction: steel

Sealing profile: EPDM-foam rubber (sealed on), black

Max. temperature: +80 °C

No additional information available.
Item Image Clamping Range
mm
min. d1
mm
Min. d2
mm
Min. d3
mm
Min. d4
mm
Weight
g/m
Unit
m
Price
Euro*
Buy
707079
Edge Trim - with seal Edge Trim - with seal
Edge Trim - with seal Edge Trim - with seal
Edge Trim - with seal Edge Trim - with seal
1 - 4 70 80 15 15 175 5 65.00
707080
Edge Trim - with seal Edge Trim - with seal
Edge Trim - with seal Edge Trim - with seal
Edge Trim - with seal Edge Trim - with seal
1 - 4 70 80 15 15 175 10 105.00
707081
Edge Trim - with seal Edge Trim - with seal
Edge Trim - with seal Edge Trim - with seal
Edge Trim - with seal Edge Trim - with seal
1 - 4 50 30 100 120 180 5 80.00
707082
Edge Trim - with seal Edge Trim - with seal
Edge Trim - with seal Edge Trim - with seal
Edge Trim - with seal Edge Trim - with seal
1 - 4 50 30 100 120 180 10 125.00
707083
Edge Trim - with seal Edge Trim - with seal
Edge Trim - with seal Edge Trim - with seal
Edge Trim - with seal Edge Trim - with seal
1 - 4 40 40 150 150 170 5 75.00
707084
Edge Trim - with seal Edge Trim - with seal
Edge Trim - with seal Edge Trim - with seal
Edge Trim - with seal Edge Trim - with seal
1 - 4 40 40 150 150 170 10 115.00
