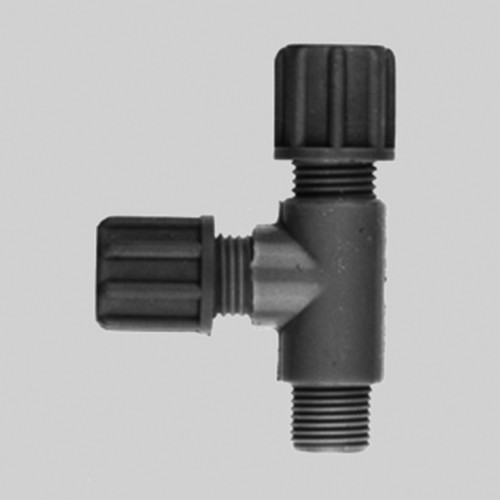

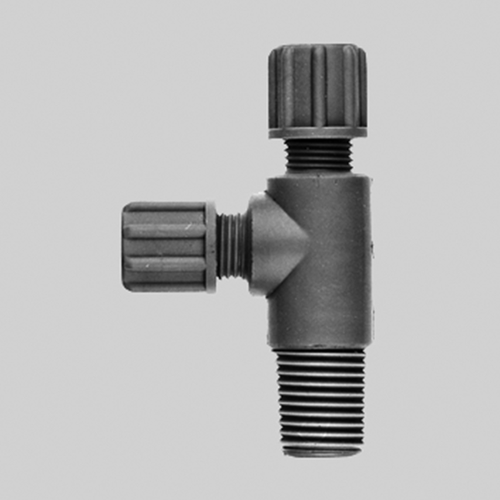

T-Shaped Connector with Male Thread made of PP or PVDF - asymmetrical

Product specification T-shape, tubing connections on two sides; male G- or NPT-thread on the... more

Product specification

T-shape, tubing connections on two sides; male G- or NPT-thread on the third side

General Information EMP-3 THOMAFLUID ® -tubing screw joints are used for connecting... more

General Information EMP-3

THOMAFLUID®-tubing screw joints are used for connecting flexible THOMAFLUID®-tubing.

The connecting spigot is nearly cylindrical and dimensioned in such a way that dilatation of the tubing does not exceed 6 % (referring to the tubing outside diameter) even with unfavourable tolerances.

The tension of the remaining dilatation achieves tightness of the screw joint also without knurled nut (checked up to 6 bar).

The locking ring of the screw joints causes the arrestment of the tubing thus preventing effects of shear and torsion forces. Please note that of course the locking ring has to be left in place if the screw joint should be closed by a cover cap.

The elastic locking ring can be used repeatedly within the same screw joint, which means that the screw joint can be opened and tightly closed again using the same locking ring.

The locking ring is fitted with a flange serving as a stop. The tube can be pressed only to the point where the flange of the locking ring abuts to the body of the screw joint which causes an additional safety effect.

This safety effect is given by the fact that the screw joint remains tight even when the connecting spigot is teared off or heavily damaged by any impact. This tightness is caused by the knurled nut pressing in the locking ring into the cone of the screw joint thus producing a seal in the cone. The connecting spigot functions as a carrying bracket, and a carrying bracket has not necessarily to be a fixed component part of the screw joint body.

PP (Polypropylene)

Extremely good impact toughness and notch impact strength

Higher hardness and stiffness as well as better resilience than PE

Thermoforming possible

Very good dielectrical properties

Good resistance to alcohols, ketones, conc. acids and alkalis

Not stable to aromatic hydrocarbons, fats and oils, halogenes

Autoclavable

Resistant to hydrolysis

Physiologically safe

Regulatory compliance to FDA 21 CFR 177.1520, RoHS, BPA-free, DEHP-free, BSE/ADI-free

Colour: grey

Density: 0.90 g/cm3

Temperature range: +5 to +90 °C

Shore hardness D: 72°

Max. operating pressure: 10 bar at +20 °C

Water absorption: <0.05 %

Tensile strength: 25 - 40 N/mm2

Elongation at break: 800 %

Surface resistance: >1013 Ohm

Melt flow index MFR: 0.3 g/10 min.

PVDF (Polyvinylidene fluoride)

High-quality technical plastic for chemical apparatus and machine building, especially in the petrochemical, metallurgical, pharmaceutical, food processing, paper and textile industry as well as in the nuclear technology.

High impact toughness even at low temperatures

Good breakdown strength

Low dielectric loss factor

Highest mechanical stability and stiffness

Meeting highest purity requirements

Comply with the guidelines from FDA, BSE/ADI-free and USP class VI, additionally PVDF has the KTW approval. Up to +150 °C it is non-toxic and since it has a similar property to glass it is a no-culture medium for microorganisms.

Can be treated by autoclave (absolute sterile) and sterilized with gamma-rays without losing its mechanical qualities

Outstanding resistance to UV, weather and aging

Flame-resistant

High thermal stability

Resistant to alcohols, fats and oils, halogenes, alkalis, acids

Not stable to aromatic hydrocarbons, ketones, amines, pyridine, dimethylformamide, hot alkalis, fuming sulfuric acid

Colour: nature, slightly translucent

Density: 1.75 g/cm3

Temperature range: -40 to +140 °C

Shore hardness D: 79°

Max. operating pressure: 10 bar at +20 °C

Water absorption: <0.04 %

Tensile strength: 38 - 50 N/mm2

Surface resistance: >1013 Ohm

Melt flow index MFR: 6 g/10 min.

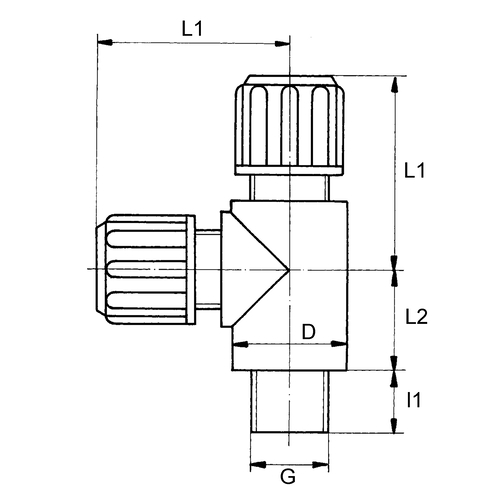

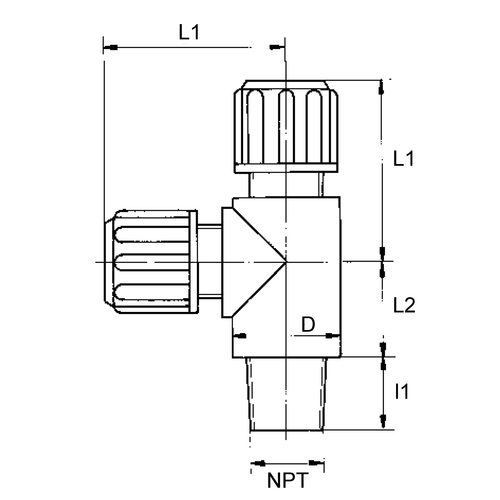

Item Image Tubing inside Ø
mm
Schlauch Außen-Ø
mm
Außengewinde D
mm
l1
mm
L1
mm
L2
mm
Werkstoff Einheit
Stück
Price
Euro*
Buy
21407
4 6 G 1/8" 15 8 25 12 PP 10 139.00
21408
4 6 G 1/8" 15 8 25 12 PVDF 2 125.00
21410
4 6 G 1/4" 15 12 25 12 PP 10 140.00
21411
4 6 G 1/4" 15 12 25 12 PVDF 2 124.00
21413
4 6 G 3/8" 20 12 28 12 PP 10 144.00
21414
4 6 G 3/8" 20 12 28 12 PVDF 2 129.00
21416
4 6 G 1/2" 25 14 31 15 PP 10 161.00
21417
4 6 G 1/2" 25 14 31 15 PVDF 2 129.00
21419
6 8 G 1/8" 15 8 27 12 PP 10 172.00
21420
6 8 G 1/8" 15 8 27 12 PVDF 2 133.00
21422
6 8 G 1/4" 15 12 27 12 PP 10 172.00
21423
6 8 G 1/4" 15 12 27 12 PVDF 2 133.00
21425
6 8 G 3/8" 20 12 30 12 PP 10 189.00
21426
6 8 G 3/8" 20 12 30 12 PVDF 2 133.00
21428
6 8 G 1/2" 25 14 33 15 PP 10 204.00
21429
6 8 G 1/2" 25 14 33 15 PVDF 2 133.00
21431
6 10 G 1/8" 20 8 32 15 PP 10 204.00
21432
6 10 G 1/8" 20 8 32 15 PVDF 2 133.00
21434
6 10 G 1/4" 20 12 32 15 PP 10 204.00
21435
6 10 G 1/4" 20 12 32 15 PVDF 2 133.00
21437
6 10 G 3/8" 20 12 32 15 PP 5 134.00
21438
6 10 G 3/8" 20 12 32 15 PVDF 2 133.00
21440
6 10 G 1/2" 25 14 35 15 PP 5 140.00
21441
6 10 G 1/2" 25 14 35 15 PVDF 1 73.00
21443
8 10 G 1/8" 20 8 34 15 PP 10 204.00
21444
8 10 G 1/8" 20 8 34 15 PVDF 2 133.00
21446
8 10 G 1/4" 20 12 34 15 PP 10 204.00
21447
8 10 G 1/4" 20 12 34 15 PVDF 2 133.00
21449
8 10 G 3/8" 20 12 34 15 PP 5 140.00
21450
8 10 G 3/8" 20 12 34 15 PVDF 2 133.00
21452
8 10 G 1/2" 25 14 37 15 PP 5 140.00
21453
8 10 G 1/2" 25 14 37 15 PVDF 1 76.00
21455
8 12 G 1/8" 20 8 34 17 PP 2 99.00
21456
8 12 G 1/8" 20 8 34 17 PVDF 2 133.00
21458
8 12 G 1/4" 20 12 34 17 PP 2 99.00
21459
8 12 G 1/4" 20 12 34 17 PVDF 2 133.00
21461
8 12 G 3/8" 20 12 34 17 PP 2 107.00
21462
8 12 G 3/8" 20 12 34 17 PVDF 1 76.00
21464
8 12 G 1/2" 25 14 37 17 PP 2 112.00
21465
8 12 G 1/2" 25 14 37 17 PVDF 1 80.00
21467
10 14 G 1/8" 25 8 39 18 PP 2 125.00
21468
10 14 G 1/8" 25 8 39 18 PVDF 2 178.00
21470
10 14 G 1/4" 25 12 39 18 PP 2 125.00
21471
10 14 G 1/4" 25 12 39 18 PVDF 2 178.00
21473
10 14 G 3/8" 25 12 39 18 PP 2 125.00
21474
10 14 G 3/8" 25 12 39 18 PVDF 1 93.00
21476
10 14 G 1/2" 25 14 39 18 PP 2 125.00
21477
10 14 G 1/2" 25 14 39 18 PVDF 1 93.00
21479
4 6 NPT 1/8" 15 10 25 12 PP 10 131.00
21480
4 6 NPT 1/8" 15 10 25 12 PVDF 2 125.00
21482
4 6 NPT 1/4" 15 15 25 12 PP 10 133.00
21483
4 6 NPT 1/4" 15 15 25 12 PVDF 2 127.00
21485
4 6 NPT 3/8" 20 15 28 12 PP 10 140.00
21486
4 6 NPT 3/8" 20 15 28 12 PVDF 2 127.00
21488
4 6 NPT 1/2" 25 20 31 15 PP 10 140.00
21489
4 6 NPT 1/2" 25 20 31 15 PVDF 2 127.00
21491
6 8 NPT 1/8" 15 10 27 12 PP 10 140.00
21492
6 8 NPT 1/8" 15 10 27 12 PVDF 2 127.00
21494
6 8 NPT 1/4" 15 15 27 12 PP 10 139.00
21495
6 8 NPT 1/4" 15 15 27 12 PVDF 2 127.00
21497
6 8 NPT 3/8" 20 15 30 12 PP 10 161.00
21498
6 8 NPT 3/8" 20 15 30 12 PVDF 2 129.00
21500
6 8 NPT 1/2" 25 20 33 15 PP 10 172.00
21501
6 8 NPT 1/2" 25 20 33 15 PVDF 2 133.00
21503
6 10 NPT 1/8" 20 10 32 15 PP 10 172.00
21504
6 10 NPT 1/8" 20 10 32 15 PVDF 2 133.00
21505
6 10 NPT 1/4" 20 15 32 15 PVDF 10 150.00
21507
6 10 NPT 1/4" 20 15 32 15 PP 2 133.00
21508
6 10 NPT 3/8" 20 15 32 15 PVDF 10 172.00
21510
6 10 NPT 3/8" 20 15 32 15 PP 2 140.00
21512
6 10 NPT 1/2" 25 20 35 15 PP 5 145.00
21513
6 10 NPT 1/2" 25 20 55 15 PVDF 1 72.00
21515
8 10 NPT 1/8" 20 10 34 15 PP 10 182.00
21516
8 10 NPT 1/8" 20 10 34 15 PVDF 2 150.00
21518
8 10 NPT 1/4" 20 15 34 15 PP 10 202.00
21519
8 10 NPT 1/4" 20 15 34 15 PVDF 2 151.00
21521
8 10 NPT 3/8" 20 15 34 15 PP 5 128.00
21522
8 10 NPT 3/8" 20 15 34 15 PVDF 2 151.00
21524
8 10 NPT 1/2" 25 20 37 15 PP 5 145.00
21525
8 10 NPT 1/2" 25 20 57 15 PVDF 1 93.00
21527
8 12 NPT 1/8" 20 10 34 17 PP 2 99.00
21528
8 12 NPT 1/8" 20 10 34 17 PVDF 2 152.00
21530
8 12 NPT 1/4" 20 15 34 17 PP 2 103.00
21531
8 12 NPT 1/4" 20 15 34 17 PVDF 2 152.00
21533
8 12 NPT 3/8" 20 15 34 17 PP 2 105.00
21534
8 12 NPT 3/8" 20 15 34 17 PVDF 1 81.00
21536
8 12 NPT 1/2" 25 20 37 17 PP 2 112.00
21537
8 12 NPT 1/2" 25 20 57 17 PVDF 1 82.00
21539
10 14 NPT 1/8" 25 10 39 18 PP 2 112.00
21540
10 14 NPT 1/8" 25 10 39 18 PVDF 1 82.00
21542
10 14 NPT 1/4" 25 15 39 18 PP 2 116.00
21543
10 14 NPT 1/4" 25 15 39 18 PVDF 1 84.00
21545
10 14 NPT 3/8" 25 15 39 18 PP 2 116.00
21546
10 14 NPT 3/8" 25 15 39 18 PVDF 1 87.00
21548
10 14 NPT 1/2" 25 20 39 18 PP 2 116.00
21549
10 14 NPT 1/2" 25 20 39 18 PVDF 1 93.00
