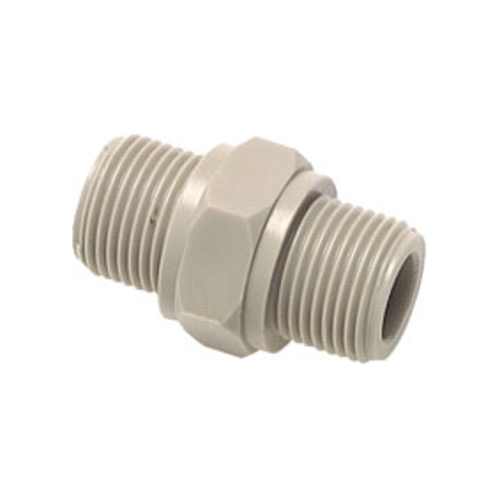

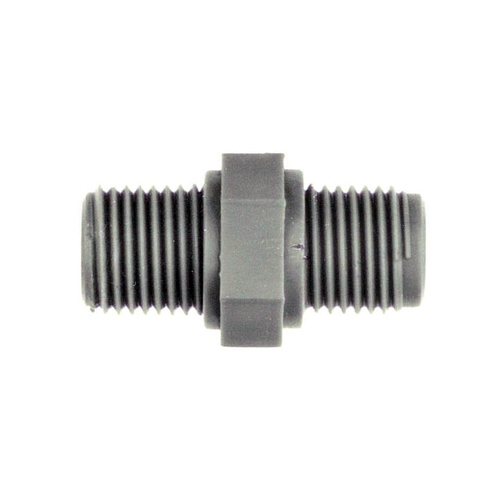

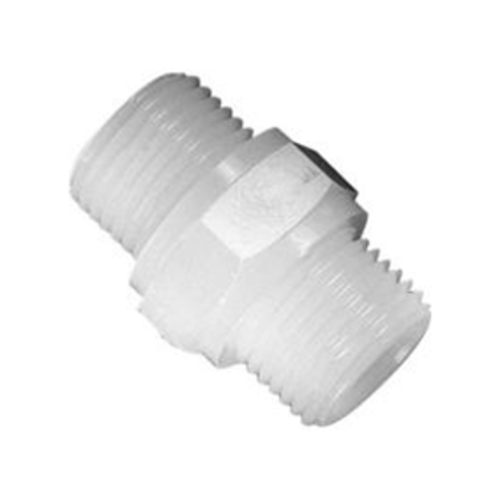

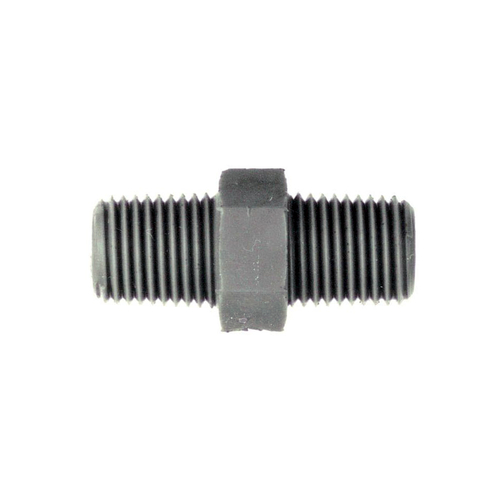

Double Nipple made of PP, PVDF or PFA

Product specification Adapter made of PP , PVDF or PFA with male thread G or NPT on both... more

Product specification

Adapter made of PP, PVDF or PFA with male thread G or NPT on both sides.

General Information Material: PP , grey (polypropylene) Temperature range: +5 to... more

General Information

Material: PP, grey (polypropylene)

Temperature range: +5 to +90 °C

Max. operating pressure: 10 bar at +20 °C

Regulatory compliance to FDA 21 CFR 177.1520, RoHS, BPA-free, DEHP-free, BSE/ADI-free

Material: PVDF, white (polyvinylidene fluoride)

Temperature range: -40 to +140 °C

Max. operating pressure: 10 bar at +20 °C

Regulatory compliance to FDA 21 CFR 177.1520, USP class VI, RoHS, BPA-free, DEHP-free, BSE/ADI-free

Material: PFA, white (perfluoroalkoxy)

Temperature range: -150 to +180 °C

Max. operating pressure: 10 bar at +20 °C

Regulatory compliance to FDA 21 CFR 177.1520, USP class VI, RoHS, BPA-free, DEHP-free, BSE/ADI-free

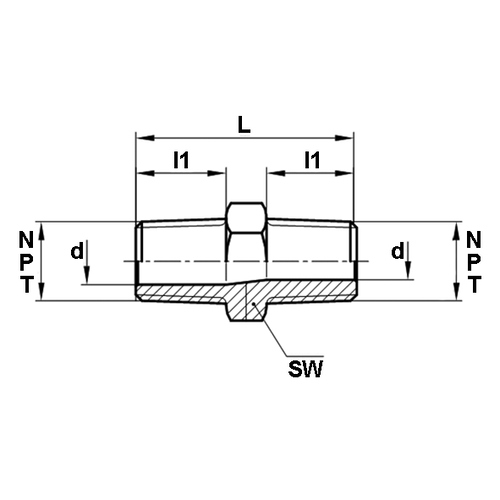

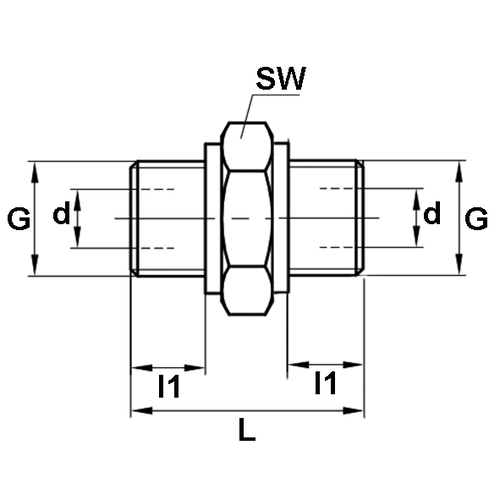

Item Image External thread d
mm
l1
mm
L
mm
SW
mm
Werkstoff Einheit
Stück
Price
Euro*
Buy
24252
G 1/8" 4 8 23 14 PP 10 52.00
24253
G 1/8" 4 8 23 14 PFA 5 139.00
24254
G 1/8" 4 8 23 14 PVDF 5 100.00
24256
G 1/4" 5 12 33 17 PP 10 114.00
24257
G 1/4" 5 12 33 17 PFA 5 262.00
24258
G 1/4" 5 12 33 17 PVDF 5 208.00
24260
G 3/8" 6 12 36 22 PP 10 167.00
24261
G 3/8" 6 12 36 22 PFA 5 320.00
24262
G 3/8" 6 12 36 22 PVDF 5 237.00
24264
G 1/2" 8 14 43 27 PP 10 221.00
24265
G 1/2" 8 14 43 27 PFA 5 509.00
24266
G 1/2" 8 14 43 27 PVDF 5 348.00
24268
NPT 1/8" 4 8 23 14 PP 10 52.00
24269
NPT 1/8" 4 8 23 14 PFA 5 139.00
24270
NPT 1/8" 4 8 23 14 PVDF 5 100.00
24272
NPT 1/4" 5 12 33 17 PP 10 114.00
24273
NPT 1/4" 5 12 33 17 PFA 5 262.00
24274
NPT 1/4" 5 12 33 17 PVDF 5 208.00
24276
NPT 3/8" 6 15 40 19 PP 10 167.00
24277
NPT 3/8" 6 15 40 19 PFA 5 320.00
24278
NPT 3/8" 6 15 40 19 PVDF 5 237.00
24280
NPT 1/2" 8 20 50 22 PP 10 221.00
24281
NPT 1/2" 8 20 50 22 PFA 5 509.00
24282
NPT 1/2" 8 20 50 22 PVDF 5 348.00
