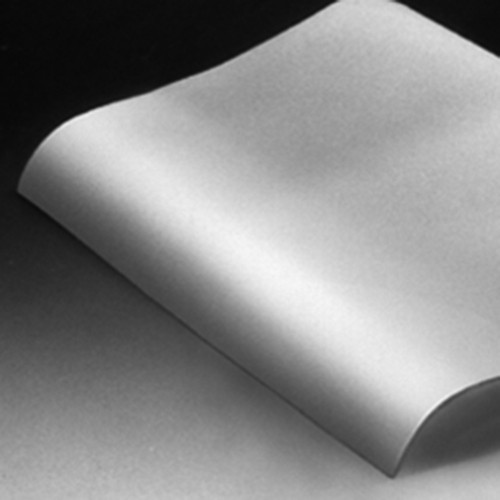

PVDF Film - metallized
| Item |
Thickness mm
|
Gewicht g
|
Abmessung mm
|
Einheit Stück
|
Price Euro* |
Buy |
|---|---|---|---|---|---|---|
| 48991 | 0,025 | 0,1103 | 50 x 50 | 1 | 495.00 | |
| 48992 | 0,025 | 0,4412 | 100 x 100 | 1 | 839.00 | |
| 48993 | 0,025 | 0,9928 | 150 x 150 | 1 | 1,701.00 | |
Viewed
Product specification
Excellent UV resistance
Good beta and gamma radiation resistance
Good resistance to alcohols, fats and oils, halogenes, alkalis, acids; not stable to ketones, aromatic hydrocarbons
Technical specification
Material: PVDF (polyvinylidene fluoride), Al-metallized on both sides, piezoelectric
Temperature range: -40 to +160 °C, for a short time +220 °C
Density: 1.76 g/cm3
Dielectric constant: 8.4 at 1 MHz
Piezocoefficients: d31 biaxial 50 pC x N-1; d32 uniaxial 18; biaxial 8 pC x N-1; d33 uniaxial 2; biaxial 8 pC x N-1
Surface resistivity: 102 Ohm/cm2
| Item | Image |
Thickness mm
|
Gewicht g
|
Abmessung mm
|
Einheit Stück
|
Price Euro* |
Buy |
|---|---|---|---|---|---|---|---|
| 48991 |
|
0,025 | 0,1103 | 50 x 50 | 1 | 495.00 | |
| 48992 |
|
0,025 | 0,4412 | 100 x 100 | 1 | 839.00 | |
| 48993 |
|
0,025 | 0,9928 | 150 x 150 | 1 | 1,701.00 | |
