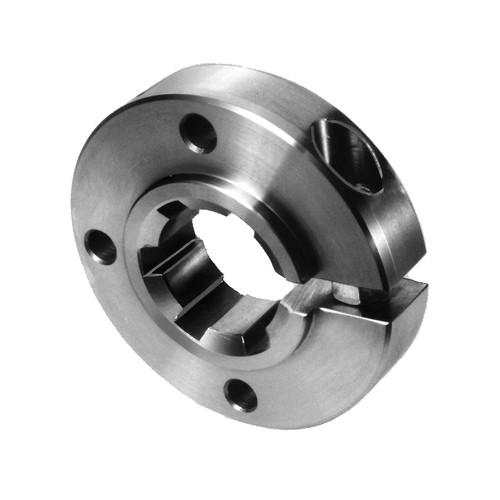

Clamp Collar for Splined Hubs - DIN14

Technical specification Material: steel C45Pb, stainless steel 1.4305, or red brass RG7 more

Technical specification

Material: steel C45Pb, stainless steel 1.4305, or red brass RG7

General Information Use for pant construction, engineering, food industry and laboratory... more

General Information

Use for pant construction, engineering, food industry and laboratory technology.

For the transmission of torques, when the component additionally needs to be movable in axial direction.

Splined shafts made of steel or stainless steel

Splined hubs without flange, made of steel, stainless steel or red brass

Splined hubs with flange, ready-to-install, made of steel, stainless steel or red brass

Clamp collars ready-to-install, made of steel, stainless steel or red brass

Dimensioning and selection of materials:

Sizing with aid of torque table considering the bending and torsion with long shafts under high load.

Steel shafts for standard applications. Stainless steel spindles if corrosion resistance is required.

Red brass hubs with excellent dry-running properties for often used drives.

Steel hubs and stainless steel hubs only for less frequent use with proper lubrication. These materials tend to seizing (galling).

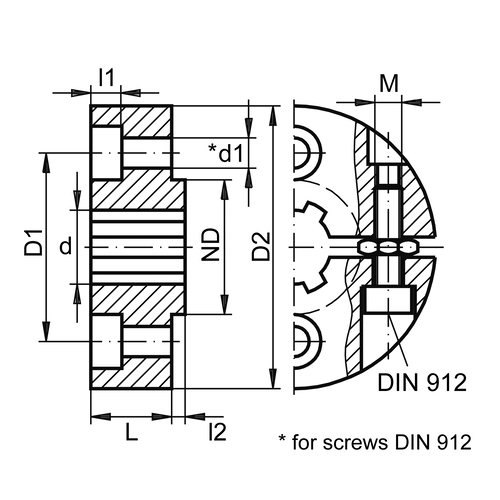

Item Image Material d x D1
