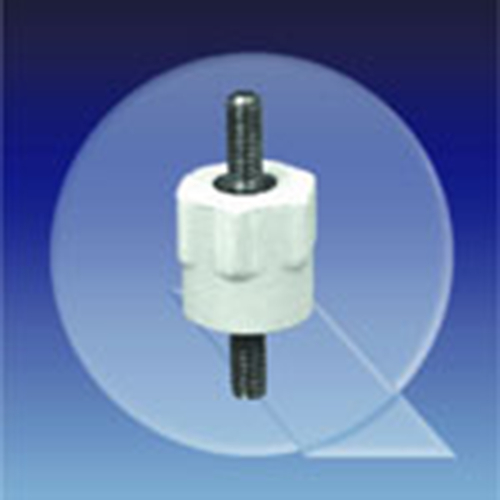

Insulating Spacer made of PEs - hexagonal, external thread

Technical specification Design: hexagon on one side; with external thread on both sides more

Technical specification

Design: hexagon on one side; with external thread on both sides

General Information Thread inserts made of zinc-plated steel, threads mutually insulated... more

General Information

Thread inserts made of zinc-plated steel, threads mutually insulated

Insulating spacers are available in five different designs: alternatively cylindrical or as hexagon, each with internal and external thread or with internal thread or external thread on both sides

Chemical features:

Resistant to fuels, brake fluid, mineral, lubricating and heating oils, acids and medium-strong alkalis.

Material specification:

The glass fibre reinforced polyester features high strength, stiffness and dimensional stability, high dimensional stability under heat, favourable dielectrical properties, good arc resistance, resistance to UV light and good resistance to weather, as well as good chemical resistance except to alkalis with a pH value >9.

Material: polyester, glass fibre reinforced (20 %)

Colour: white

Density: 1.84 g/cm3

Temperature range: up to +150 °C

Bending strength: 80 MPa (EN 63)

Modulus of elasticity in bending: 8,000 MPa (EN 63)

Notch impact strength (Charpy): 15 kJ/m2 (ISO 179)

Dimensional stability under heat: > +200 °C (ISO 75), method A

Oxygen index: 23 % (ISO 4589)

Dielectric strength: 10 kV/mm

Dielectric constant: approx. 4.5 at 1 kHz (DIN 53483)

Volume resistivity: >1012 Ohm (DIN 53482)

Comparative tracking index (CTI): >600 (DIN 53480)

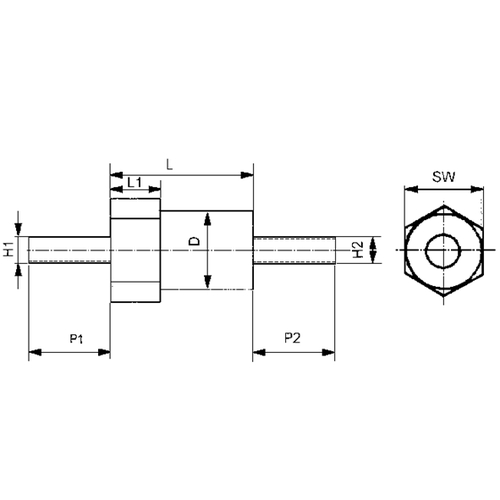

Item Image L
mm
External Thread P1 P1
mm
Außengewinde P2 P2
mm
D
mm
SW
mm
Einheit
Stück
Price
Euro*
Buy
311954
12 M3 x 0,5 5 M3 x 0,5 5 10 10 5 93.00
311955
12 M3 x 0,5 5 M3 x 0,5 5 10 10 15 247.00
311956
11 M3 x 0,5 10 M3 x 0,5 10 11 11 5 93.00
311957
11 M3 x 0,5 10 M3 x 0,5 10 11 11 15 247.00
311958
14 M3 x 0,5 10 M3 x 0,5 10 14 14 5 80.00
311959
14 M3 x 0,5 10 M3 x 0,5 10 14 14 15 212.00
311960
14 M4 x 0,7 10 M3 x 0,5 10 14 14 5 80.00
311961
14 M4 x 0,7 10 M3 x 0,5 10 14 14 15 212.00
311962
14 M4 x 0,7 10 M4 x 0,7 10 14 14 5 80.00
311963
14 M4 x 0,7 10 M4 x 0,7 10 14 14 15 212.00
311964
14 M4 x 0,7 10 M6 x 1 10 14 14 5 80.00
311965
14 M4 x 0,7 10 M6 x 1 10 14 14 15 212.00
311966
14 M5 x 0,8 10 M5 x 0,8 10 14 14 5 80.00
311967
14 M5 x 0,8 10 M5 x 0,8 10 14 14 15 212.00
311968
14 M6 x 1 10 M6 x 1 10 14 14 5 80.00
311969
14 M6 x 1 10 M6 x 1 10 14 14 15 212.00
311970
14 M6 x 1 10 M6 x 1 15 14 14 5 80.00
311971
14 M6 x 1 10 M6 x 1 15 14 14 15 212.00
311972
26 M5 x 0,8 10 M5 x 0,8 10 14 14 5 86.00
311973
26 M5 x 0,8 10 M5 x 0,8 10 14 14 15 229.00
311974
26 M8 x 1,25 20 M8 x 1,25 8 20 21 5 112.00
311975
26 M8 x 1,25 20 M8 x 1,25 8 20 21 15 304.00
311976
35 M8 x 1,25 10 M8 x 1,25 15 20 21 5 133.00
311977
35 M8 x 1,25 10 M8 x 1,25 15 20 21 15 351.00
