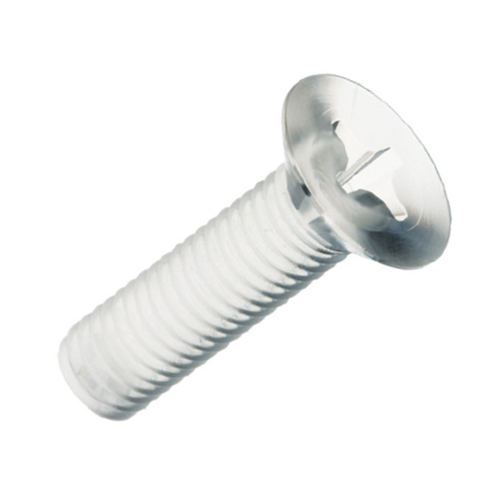

Crossed Pan Head Countersunk Head Screw (DIN 965) made of PC

Crossed Pan Head Countersunk Head Screw (DIN 965) made of PC

Product specification Crystal-clear screws Ideal fastening elements for optically... more

Close menu

Product specification

Crystal-clear screws

Ideal fastening elements for optically sophisticated applications that require a high stability and hardness

Can be used for signs, shelves, displays, technical parts etc.

Inflame and extinguish after removal of the ignition source, burn smoking (smell of phenol)

Chemical features:

Resistant to many organic acids, mineral acids of high concentration, oxidants and reducing agents, fats and oils, neutral and acidic salt solutions, aliphatic and cycloaliphatic hydrocarbons and alcohols, except methanol; good resistance to most detergents and suds based on detergents; not resistant to aromatic hydrocarbons, halogens, ketones and alkalis.

Material specification of PC (polycarbonate):

Crystal-clear, colourless and amorphous thermoplastic

Suitable for use under the most extreme atmospheric conditions

Polycarbonate is the most shatterproof glazing material today

The impact strength is 250 times higher than that of glass of the same thickness

The notch impact strength is 30 - 40 times higher than that of PMMA (acrylic glass)

The excellent impact strength remains stable up to -40 °C

High heat resistance

Low creep

Suitable for food

Sterilizable, thus suitable for medical devices

Although PC can be permanently cleaned in hot water and steam sterilized, a continuous use in water above +60 °C is not recommended, because the impact resistance is affected under these conditions.

The transparency is 90 % at 1 mm thickness and 80 % at 10 mm; ultraviolet rays are almost completely absorbed.

Technical specification

Material: PC (polycarbonate)

Colour: transparent, clear

Density: 1.2 g/cm³ (DIN 53479)

Temperature range: -100 to +135 °C (continuous use in the air)

Tensile modulus: 2,200 - 2,400 N/mm² (DIN 53457)

Tensile strength: 55 - 75 N/mm²

Pressure resistance: >80 N/mm²

Ball pressure hardness: 100 - 110 N/mm² (30-sec. value, DIN 53456)

Rockwell hardness R: 118 - 125 MPa (ASTM D 785)

Impact resistance:

+20 °C: without break (DIN 53453)

+100 °C: without break (DIN 53453)

Notch impact strength:

at +20 °C: 20 - 30 kJ/m² (DIN 53453)

at -40 °C: 10 - 15 kJ/m² (DIN 53453)

Notch impact strength (Izod): 800 - 850 J/m (ASTM D 256)

Thermal conductivity: 0.21 W/m * K (DIN 5261)

Flammability rating: UL 94

Dielectric strength: 35 kV/mm (DIN 53481)

Volume resistivity: >10¹⁷ Ohm x cm (DIN 53482)

Surface resistance: >10¹⁵ Ohm (DIN 53482)

Comparative track. index (CTI): 255 - 300 (DIN 53480)

Dielectric constant: 2.9 at 1 Mhz (DIN 53483)

Regulations: similar to DIN 965, ISO 2009

Close menu

No additional information available.

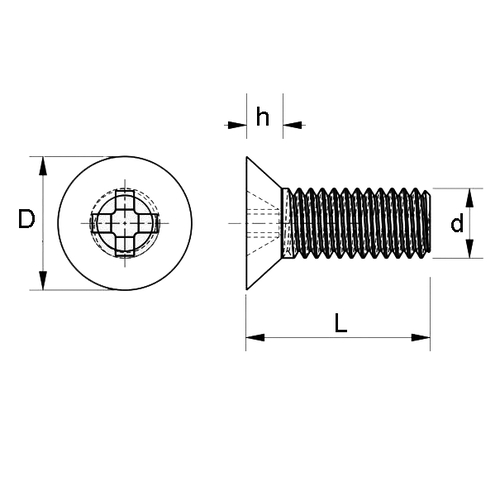

Item	External thread	L mm	D mm	h mm	Einheit Stück	Price Euro*
314896	M2 x 0,4	4	4	1,2	25	26.00
314897	M2 x 0,4	4	4	1,2	50	34.00
314898	M2 x 0,4	5	4	1,2	25	26.00
314899	M2 x 0,4	5	4	1,2	50	34.00
314900	M2 x 0,4	6	4	1,2	25	26.00
314901	M2 x 0,4	6	4	1,2	50	34.00
314902	M2 x 0,4	8	4	1,2	25	26.00
314903	M2 x 0,4	8	4	1,2	50	34.00
314904	M3 x 0,5	4	6	1,7	25	26.00
314905	M3 x 0,5	4	6	1,7	50	34.00
314906	M3 x 0,5	6,4	5,8	1,7	25	26.00
314907	M3 x 0,5	6,4	5,8	1,7	50	34.00
314908	M3 x 0,5	10	5,2	1,7	25	26.00
314909	M3 x 0,5	10	5,2	1,7	50	34.00
314910	M3 x 0,5	12,8	5,6	1,7	25	27.00
314911	M3 x 0,5	12,8	5,6	1,7	50	35.00
314912	M3 x 0,5	15	6	1,7	25	40.00
314913	M3 x 0,5	15	6	1,7	50	50.00
314914	M3 x 0,5	18	6	1,7	25	51.00
314915	M3 x 0,5	18	6	1,7	50	63.00
314742	M3 x 0,5	20	6	1,7	25	52.00
314743	M3 x 0,5	20	6	1,7	50	65.00
314916	M3 x 0,5	25	6	1,7	25	60.00
314917	M3 x 0,5	25	6	1,7	50	76.00
314918	M4 x 0,7	3,8	7,4	2,75	25	28.00
314919	M4 x 0,7	3,8	7,4	2,75	50	35.00
314920	M4 x 0,7	5,8	7,4	2,75	25	28.00
314921	M4 x 0,7	5,8	7,4	2,75	50	35.00
314922	M4 x 0,7	8	8	2,75	25	29.00
314923	M4 x 0,7	8	8	2,75	50	37.00
314744	M4 x 0,7	9,8	7,4	2,75	25	29.00
314745	M4 x 0,7	9,8	7,4	2,75	50	37.00
314924	M4 x 0,7	12	8	2,75	25	39.00
314925	M4 x 0,7	12	8	2,75	50	50.00
314926	M4 x 0,7	15	8	2,75	25	53.00
314927	M4 x 0,7	15	8	2,75	50	66.00
314928	M4 x 0,7	18	8	2,75	25	55.00
314929	M4 x 0,7	18	8	2,75	50	69.00
314756	M4 x 0,7	20	8	2,75	25	51.00
314757	M4 x 0,7	20	8	2,75	50	64.00
314876	M4 x 0,7	30	8	2,75	25	38.00
314877	M4 x 0,7	30	8	2,75	50	48.00
314930	M5 x 0,8	8,2	9,1	2,75	25	32.00
314931	M5 x 0,8	8,2	9,1	2,75	50	40.00
314932	M5 x 0,8	12,2	9,1	2,75	25	32.00
314933	M5 x 0,8	12,2	9,1	2,75	50	40.00
314886	M5 x 0,8	15	10	2,75	25	55.00
314887	M5 x 0,8	15	10	2,75	50	69.00
314890	M5 x 0,8	30	10	2,75	25	42.00
314891	M5 x 0,8	30	10	2,75	50	53.00
314934	M6 x 1	10	12	3,2	25	70.00
314935	M6 x 1	10	12	3,2	50	81.00
314936	M6 x 1	15	12	3,2	25	83.00
314937	M6 x 1	15	12	3,2	50	95.00
314938	M6 x 1	20	12	3,2	25	93.00
314939	M6 x 1	20	12	3,2	50	106.00
314940	M6 x 1	25	12	3,2	10	40.00
314941	M6 x 1	25	12	3,2	20	45.00
314942	M6 x 1	30	12	3,2	10	49.00
314943	M6 x 1	30	12	3,2	20	55.00
314944	M6 x 1	35	12	3,2	10	73.00
314945	M6 x 1	35	12	3,2	20	84.00
314946	M8 x 1,25	10	16	4	25	125.00
314947	M8 x 1,25	10	16	4	50	142.00
314948	M8 x 1,25	15	16	4	25	131.00
314949	M8 x 1,25	15	16	4	50	150.00
314950	M8 x 1,25	20	16	4	25	137.00
314951	M8 x 1,25	20	16	4	50	157.00
314952	M8 x 1,25	25	16	4	10	64.00
314953	M8 x 1,25	25	16	4	20	73.00
314954	M8 x 1,25	30	16	4	10	70.00
314955	M8 x 1,25	30	16	4	20	80.00
