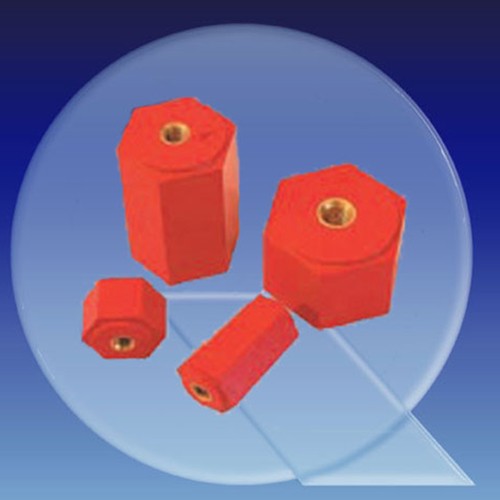

Insulating Spacers made of PEs-glass fiber reinforced - hexagon

Insulating Spacers made of PEs-glass fiber reinforced - hexagon

Technical specification Design: hexagon, internal thread on both sides, threads are... more

Close menu

Technical specification

Design: hexagon, internal thread on both sides, threads are mutually insulated

Tolerance: 1 - 15 mm: ±0.25 mm; 16 - 50 mm: ±0.5 mm; 51 - 100 mm: ±1.0 mm

General Information Available in three designs: conical, drum-type and as hexagon Internal... more

Close menu

General Information

Available in three designs: conical, drum-type and as hexagon

Internal thread on both sides

Threads are mutually insulated

Thread inserts made of steel

Chemical features:

Resistant to fuels, brake fluid, mineral, lubricating and heating oils, acids and medium-strong alkalis

Material specification:

The glass fibre reinforced polyester features high strength, stiffness and dimensional stability, high dimensional stability under heat, favourable dielectrical properties, good arc resistance, resistance to UV light and good resistance to weather, as well as good chemical resistance except to alkalis with a pH value >9; particularly suitable for mechanically highly loadable components due to glass fibre reinforcement.

Material: polyester, glass fibre reinforced (15 %)

Colour: red

Density: 1.9 g/cm³

Temperature range: -40 to +135 °C

Dielectric strength: 10 kV/mm (ASTM D 149)

Tensile strength: 400 kg f / cm

Bending strength: 900 kg f / cm

Pressure resistance: 1500 kg f / cm

Notch impact strength (Izod): 250 J / m

Water absorption: 0.15 % (at +23 °C / 24 h)

Flammability rating: UL 94 V-0

Burning behaviour: Self-extinguishing

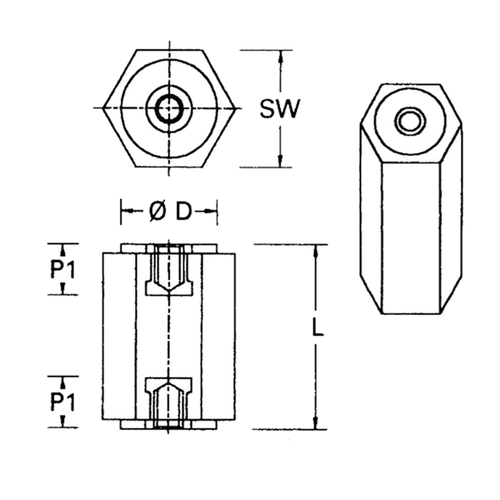

Item	L mm	Rated voltage (AC/DC) volt	Innengewinde	P1 mm	D mm	SW mm	Einheit Stück	Price Euro*
314029	25	400/500	M6 x 1	10	16	20	10	45.00
314030	25	400/500	M6 x 1	10	16	20	25	101.00
314031	30	600/750	M6 x 1	10	16	20	10	48.00
314032	30	600/750	M6 x 1	10	16	20	25	110.00
314033	35	600/750	M6 x 1	10	16	20	10	54.00
314034	35	600/750	M6 x 1	10	16	20	25	125.00
314035	40	1000/1200	M6 x 1	10	16	20	10	60.00
314036	40	1000/1200	M6 x 1	10	16	20	25	144.00
314037	45	1000/1200	M6 x 1	15	16	20	10	67.00
314038	45	1000/1200	M6 x 1	15	16	20	25	155.00
314039	50	1200/1500	M6 x 1	15	16	20	10	73.00
314040	50	1200/1500	M6 x 1	15	16	20	25	170.00
314041	55	1200/1500	M6 x 1	15	16	20	10	80.00
314042	55	1200/1500	M6 x 1	15	16	20	25	185.00
314043	60	1500/1800	M6 x 1	15	16	20	10	86.00
314044	60	1500/1800	M6 x 1	15	16	20	25	200.00
314045	25	400/500	M6 x 1	10	21	25	10	54.00
314046	25	400/500	M6 x 1	10	21	25	25	125.00
314047	30	600/750	M6 x 1	10	21	25	10	60.00
314048	30	600/750	M6 x 1	10	21	25	25	140.00
314049	35	600/750	M6 x 1	10	21	25	10	67.00
314050	35	600/750	M6 x 1	10	21	25	25	155.00
314051	40	1000/1200	M6 x 1	10	21	25	10	73.00
314052	40	1000/1200	M6 x 1	10	21	25	25	170.00
314053	45	1000/1200	M6 x 1	15	21	25	10	82.00
314054	45	1000/1200	M6 x 1	15	21	25	25	191.00
314055	50	1000/1200	M6 x 1	15	21	25	10	101.00
314056	50	1000/1200	M6 x 1	15	21	25	25	234.00
314057	55	1200/1500	M6 x 1	15	21	25	10	114.00
314058	55	1200/1500	M6 x 1	15	21	25	25	264.00
333075	60	1500/1800	M6 x 1	15	21	25	5	63.00
333076	60	1500/1800	M6 x 1	15	21	25	15	155.00
337965	30	600/750	M8 x 1,25	12	32	35	5	63.00
337966	30	600/750	M8 x 1,25	12	32	35	15	155.00
337967	35	600/750	M8 x 1,25	12	32	35	5	63.00
337968	35	600/750	M8 x 1,25	12	32	35	15	155.00
337969	40	1000/1200	M8 x 1,25	12	32	35	5	69.00
337970	40	1000/1200	M8 x 1,25	12	32	35	15	189.00
337971	45	1000/1200	M8 x 1,25	15	32	35	5	73.00
337972	45	1000/1200	M8 x 1,25	15	32	35	15	202.00
338329	50	1200/1500	M8 x 1,25	15	32	35	5	78.00
338330	50	1200/1500	M8 x 1,25	15	32	35	15	212.00
338331	55	1200/1500	M8 x 1,25	15	32	35	5	82.00
338332	55	1200/1500	M8 x 1,25	15	32	35	15	229.00
338333	60	1500/1800	M8 x 1,25	15	32	35	5	82.00
338334	60	1500/1800	M8 x 1,25	15	32	35	15	229.00
338335	35	600/750	M10 x 1,5	15	42	35	5	88.00
338336	35	600/750	M10 x 1,5	15	42	35	15	247.00
338337	40	1000/1200	M10 x 1,5	15	42	45	5	99.00
338338	40	1000/1200	M10 x 1,5	15	42	45	15	274.00
338339	45	1000/1200	M10 x 1,5	15	42	45	5	105.00
338340	45	1000/1200	M10 x 1,5	15	42	45	15	292.00
338341	50	1200/1500	M10 x 1,5	20	42	45	5	118.00
338342	50	1200/1500	M10 x 1,5	20	42	45	15	328.00
338343	55	1200/1500	M10 x 1,5	20	42	45	5	122.00
338344	55	1200/1500	M10 x 1,5	20	42	45	15	336.00
338345	60	1500/1800	M10 x 1,5	20	42	45	5	129.00
338346	60	1500/1800	M10 x 1,5	20	42	45	15	356.00
