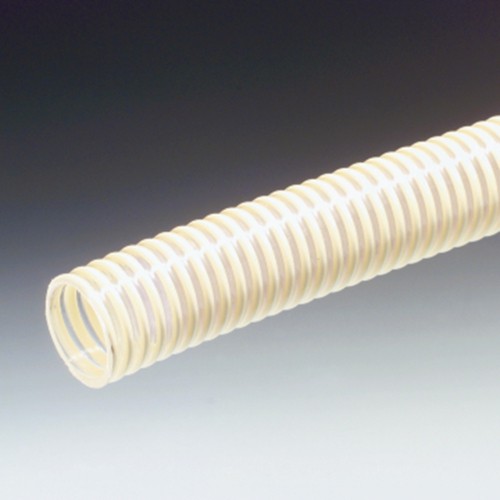

PVC Corrugated Tubing for Food

Product specification Suction and pressure hose for fat free food Technical specification... more

Product specification

Suction and pressure hose for fat free food

Technical specification

Material: PVC-P (polyvinyl chloride, soft)

Colour: transparent

Temperature range: -10 to +60 °C

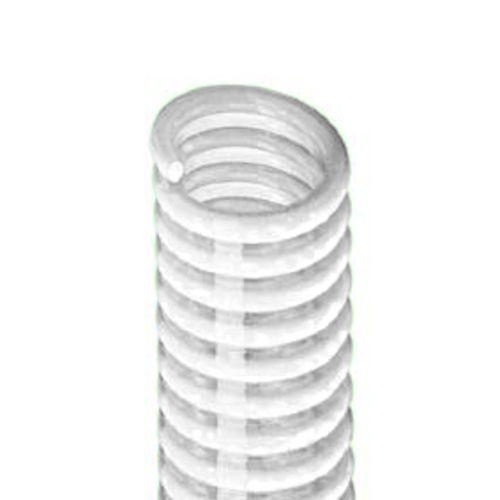

Insert: PVC-U rigid spiral, white

Vacuum resistance: 300 mbar at +20 °C

Bursting pressure: 15 bar at +20 °C

Design: inside and outside corrugated

No additional information available.
Item Image Inside Ø
mm
Außen-Ø
mm
max. Betr.-Druck1
bar
min. Biegeradius
mm
Einheit
m
Price
Euro*
Buy
12409
30 36 5 150 5 102.00
12410
30 36 5 150 10 217.00
12411
32 38 5 155 5 107.00
12412
32 38 5 155 10 174.00
12413
35 41 5 170 5 118.00
12414
35 41 5 170 10 198.00
12415
40 47 5 195 5 130.00
12416
40 47 5 195 10 211.00
12417
45 53 5 215 5 155.00
12418
45 53 5 215 10 250.00
12419
50 58 5 235 5 179.00
12420
50 58 5 235 10 294.00
