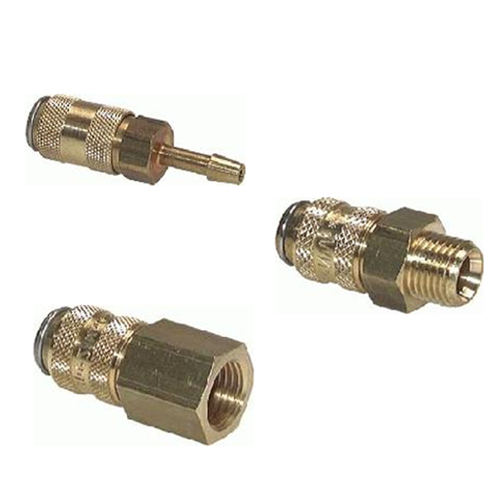

Quick-Disconnect Coupling made of Nickel-Plated Brass, NW 5 mm - shutting-off on both sides

Product specification Female coupling part. With shut-off and hose nozzle; external or... more

Product specification

Female coupling part. With shut-off and hose nozzle; external or internal thread for piping connection. Can be combined with all male coupling parts of nominal width 5 mm locking on both sides.

General Information Quick-Disconnect Coupling The two-part metal connectors are made of... more

General Information Quick-Disconnect Coupling

The two-part metal connectors are made of high-quality steel or brass and available in two designs: shutting-off on one side and shutting-off on both sides. Coupling (female part) and nipple (male part) of the same design only can be combined with each other.

General Information Quick-Disconnect Couplings made of Nickel-Plated Brass

THOMAFLUID®quick-release couplings are excellently suitable for connecting and disconnecting of tubing, apparatuses etc. One-hand operating of all quick-release couplings allows coupling or disconnecting even at places hard to get to. When pushing the nipple into the quick-release coupling the valve opens automatically and the medium flows to the point of usage. When disconnecting, the valve in the quick-release coupling shuts off automatically. A complete operable quick-release coupling consists of a coupling part and a nipple part. All coupling parts (female parts) are delivered with shut-off valve; all nipple parts (male parts) are delivered without valve.

The coupling systems are available in two designs:

Single shut-off: All coupling parts are available with valve for shut-off, all plug parts are delivered without valve.

Double shut-off: All coupling parts and all plug parts are available with valve for shut-off.

(Coupling elements of one type cannot be combined with elements of the other type)

Material:

Valve body: nickel-plated brass

Gasket: NBR (butadiene-acrylonitrile-rubber)

Springs, retaining rings: stainless steel 1.4034

Unlocking bush: nickel-plated brass

Valve: brass

Balls: stainless steel 1.4034

Colour: yellow-gold

Nominal width: 2.7; 5 and 7.2 mm

Temperature range: -40 to +120 °C

Max. operating pressure: 70 bar at +20 °C

Item Image Connection Länge
mm
Einheit
Stück
Price
Euro*
Buy
51111
Quick-Disconnect Coupling made of Nickel-Plated Brass, NW 5 mm - shutting-off on both sides Quick-Disconnect Coupling made of Nickel-Plated Brass, NW 5 mm - shutting-off on both sides
Quick-Disconnect Coupling made of Nickel-Plated Brass, NW 5 mm - shutting-off on both sides Quick-Disconnect Coupling made of Nickel-Plated Brass, NW 5 mm - shutting-off on both sides

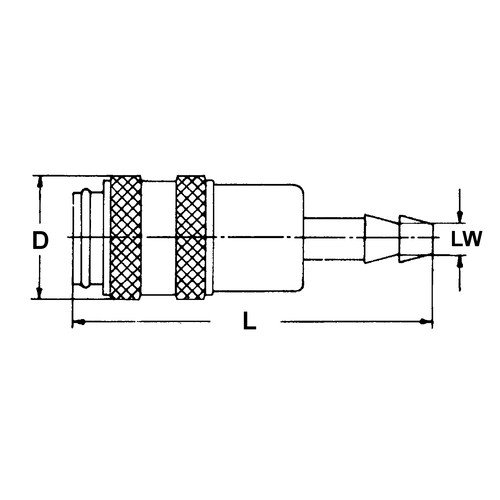

Tülle 4 mm 46 1 30.00
51112
Quick-Disconnect Coupling made of Nickel-Plated Brass, NW 5 mm - shutting-off on both sides Quick-Disconnect Coupling made of Nickel-Plated Brass, NW 5 mm - shutting-off on both sides
Quick-Disconnect Coupling made of Nickel-Plated Brass, NW 5 mm - shutting-off on both sides Quick-Disconnect Coupling made of Nickel-Plated Brass, NW 5 mm - shutting-off on both sides
Tülle 6 mm 46 1 30.00
51113
Quick-Disconnect Coupling made of Nickel-Plated Brass, NW 5 mm - shutting-off on both sides Quick-Disconnect Coupling made of Nickel-Plated Brass, NW 5 mm - shutting-off on both sides
Quick-Disconnect Coupling made of Nickel-Plated Brass, NW 5 mm - shutting-off on both sides Quick-Disconnect Coupling made of Nickel-Plated Brass, NW 5 mm - shutting-off on both sides

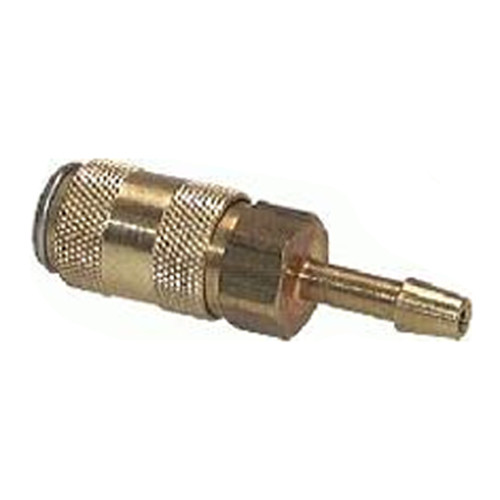

Tülle 8 mm 46 1 30.00
51114
Quick-Disconnect Coupling made of Nickel-Plated Brass, NW 5 mm - shutting-off on both sides Quick-Disconnect Coupling made of Nickel-Plated Brass, NW 5 mm - shutting-off on both sides
Quick-Disconnect Coupling made of Nickel-Plated Brass, NW 5 mm - shutting-off on both sides Quick-Disconnect Coupling made of Nickel-Plated Brass, NW 5 mm - shutting-off on both sides
Tülle 9 mm 46 1 30.00
51115
Quick-Disconnect Coupling made of Nickel-Plated Brass, NW 5 mm - shutting-off on both sides Quick-Disconnect Coupling made of Nickel-Plated Brass, NW 5 mm - shutting-off on both sides
Quick-Disconnect Coupling made of Nickel-Plated Brass, NW 5 mm - shutting-off on both sides Quick-Disconnect Coupling made of Nickel-Plated Brass, NW 5 mm - shutting-off on both sides
Tülle 10 mm 46 1 30.00
51073
Quick-Disconnect Coupling made of Nickel-Plated Brass, NW 5 mm - shutting-off on both sides Quick-Disconnect Coupling made of Nickel-Plated Brass, NW 5 mm - shutting-off on both sides
Quick-Disconnect Coupling made of Nickel-Plated Brass, NW 5 mm - shutting-off on both sides Quick-Disconnect Coupling made of Nickel-Plated Brass, NW 5 mm - shutting-off on both sides

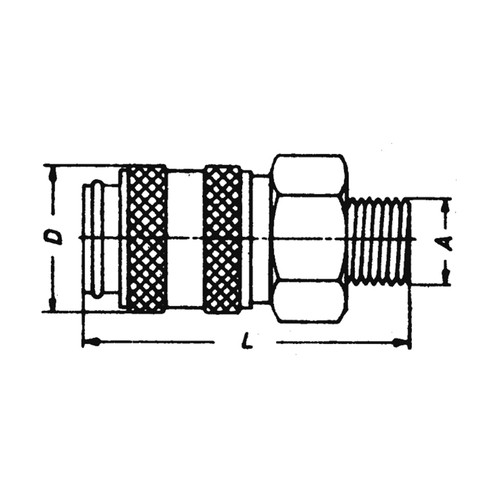

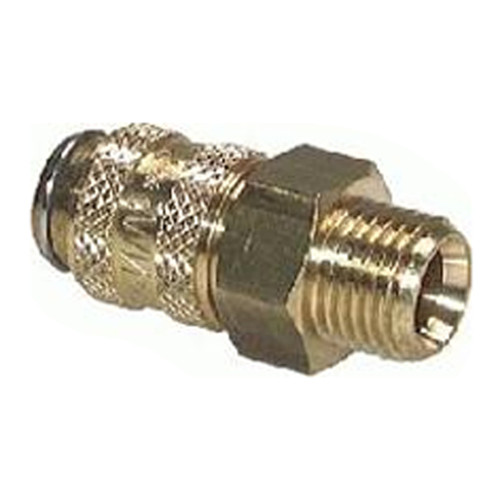

A-Gewinde G 1/8" 36 1 24.00
51074
Quick-Disconnect Coupling made of Nickel-Plated Brass, NW 5 mm - shutting-off on both sides Quick-Disconnect Coupling made of Nickel-Plated Brass, NW 5 mm - shutting-off on both sides
Quick-Disconnect Coupling made of Nickel-Plated Brass, NW 5 mm - shutting-off on both sides Quick-Disconnect Coupling made of Nickel-Plated Brass, NW 5 mm - shutting-off on both sides
A-Gewinde G 1/4" 38 1 24.00
51075
Quick-Disconnect Coupling made of Nickel-Plated Brass, NW 5 mm - shutting-off on both sides Quick-Disconnect Coupling made of Nickel-Plated Brass, NW 5 mm - shutting-off on both sides
Quick-Disconnect Coupling made of Nickel-Plated Brass, NW 5 mm - shutting-off on both sides Quick-Disconnect Coupling made of Nickel-Plated Brass, NW 5 mm - shutting-off on both sides
A-Gewinde G 3/8" 38 1 24.00
51090
Quick-Disconnect Coupling made of Nickel-Plated Brass, NW 5 mm - shutting-off on both sides Quick-Disconnect Coupling made of Nickel-Plated Brass, NW 5 mm - shutting-off on both sides
Quick-Disconnect Coupling made of Nickel-Plated Brass, NW 5 mm - shutting-off on both sides Quick-Disconnect Coupling made of Nickel-Plated Brass, NW 5 mm - shutting-off on both sides
I-Gewinde G 1/8" 36 1 24.00
51091
Quick-Disconnect Coupling made of Nickel-Plated Brass, NW 5 mm - shutting-off on both sides Quick-Disconnect Coupling made of Nickel-Plated Brass, NW 5 mm - shutting-off on both sides
Quick-Disconnect Coupling made of Nickel-Plated Brass, NW 5 mm - shutting-off on both sides Quick-Disconnect Coupling made of Nickel-Plated Brass, NW 5 mm - shutting-off on both sides
I-Gewinde G 1/4" 38 1 24.00
51092
Quick-Disconnect Coupling made of Nickel-Plated Brass, NW 5 mm - shutting-off on both sides Quick-Disconnect Coupling made of Nickel-Plated Brass, NW 5 mm - shutting-off on both sides
Quick-Disconnect Coupling made of Nickel-Plated Brass, NW 5 mm - shutting-off on both sides Quick-Disconnect Coupling made of Nickel-Plated Brass, NW 5 mm - shutting-off on both sides

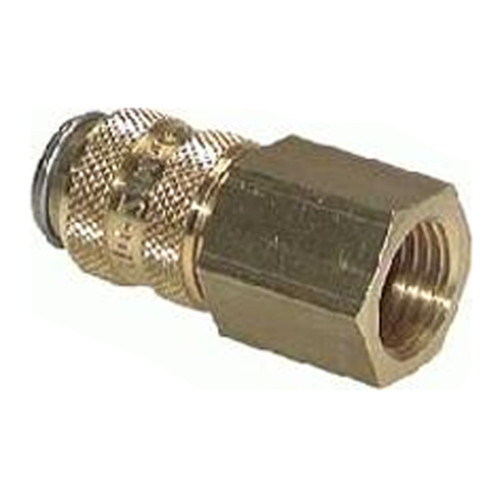

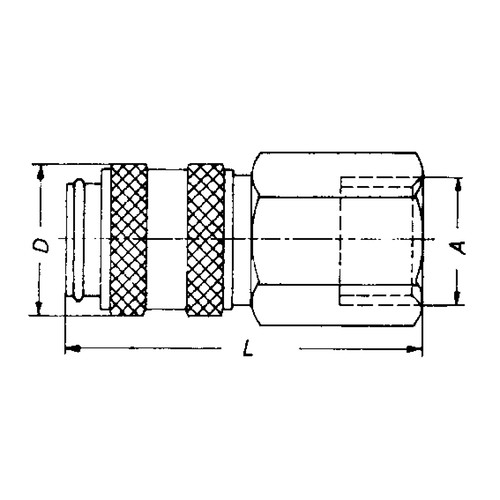

I-Gewinde G 3/8" 38 1 24.00
