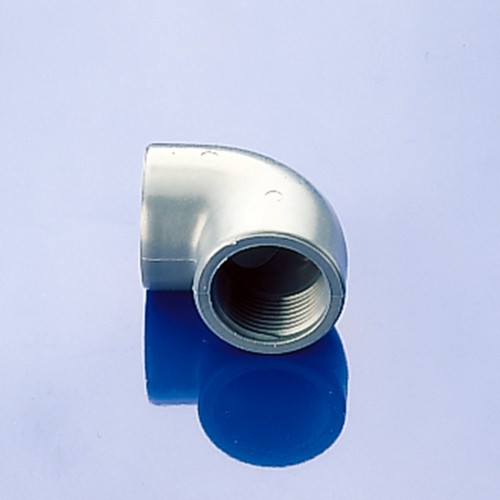

Elbow Threaded Sleeve made of PP (glass fibre reinforced)

Product specification Angle sleeve with cylindrical internal thread "G" more

Product specification

Angle sleeve with cylindrical internal thread "G"

General Information Housing: light-grey, made of glass fibre reinforced PP... more

General Information

Housing: light-grey, made of glass fibre reinforced PP (polypropylene)

Max. operating pressure: 10 bar at +20 °C

Temperature range: 0 to +80 °C

Sterilization: autoclavable at +121 °C

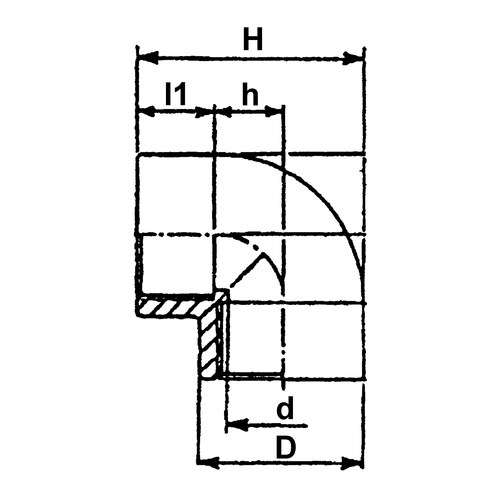

Item Image Internal thread d
mm
D
mm
h
mm
H
mm
l1
mm
Einheit
Stück
Price
Euro*
Buy
14343
G 1/2" 17,5 29,5 11 42,5 16,5 5 44.00
14344
G 3/4" 23 35,5 13 50,5 19,5 5 56.00
14345
G 1" 28,5 43 18,5 60 20 5 64.00
